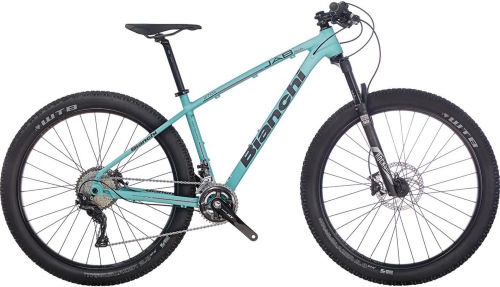

Bianchi Jab 27.0 Plus XT 2x11sp
Serie: Jab 27.0 Plus - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | Kmc X11 EPT |
|---|---|
| Crank | Shimano XT FC-M8000B-2 36/26T, chainline 51.8mm Boost 148, arms lenghts 170mm for 15" and 175mm for 17,19,21" |
| Derailleurs | Rear: Shimano XT RD-M8000-GS Shadow+ Design 11sp - Front: Shimano XT FD-M8025-D HDM |
| Shifters | Shimano XT SL-M8000 11sp |
| Sprocket | Shimano CS-M8000, 11sp, 11-40T |
Frameset
| Fork | Rock Shox Reba RL 27,5+ Solo Air Fast Black 120mm |
|---|---|
| Frame | Jab 27,5" PLUS alu 6061, 1.5" tapered HT, Press fit 41x92mm, seatpost diam. 27,2mm, HDM Front Derailleur, bottom pull, PM 160mm Boost 12x148mm, internal cable routing inside DT, sizes 15,17,19,21" |
| Headset | Fsa Orbit 1.5E ZS |
| Tec Obvius 3D forged Alloy 6061, +/-7°, 1.1/8", diam.31.8mm, 80mm for 15,17" and 90mm for 19-21" |
Wheels
| Tyres | Wtb Trailblazer 27,5x2.8 |
|---|---|
| Wheels | Wtb Scraper i45 27.5" |
Brakes
| Brakes | Brakes: Formula CR1 |
|---|
Components
| Handlebar | Tec Obvius flat top DB Alloy 6061, width 680mm, diam. 31,8mm, 5° backsweep |
|---|---|
| Saddle | Selle San Marco Era Startup, carbon steel rail, 277x135mm |
| Seatpost | Tec Obvius, alloy 6061-T6, diam. 27,2mm, 15mm seatback, length 350mm-15/17", 400mm-19/21" |
| Stem | Tec Obvius 3D forged Alloy 6061, +/-7°, 1.1/8", diam.31.8mm, 80mm for 15,17" and 90mm for 19-21" |
