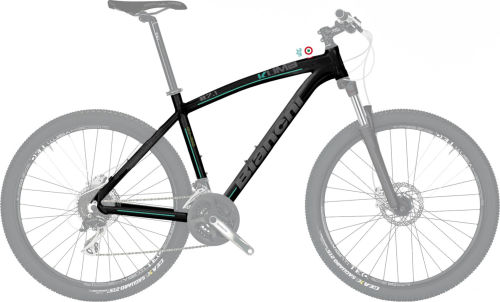

Bianchi Kuma 27.0 Deore 3x10sp
Serie: Kuma 27.0 - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | Kmc X10 EPT |
|---|---|
| Crank | Shimano FC-M523 40/30/22T, arms lenghts 170mm for 15,17" and 175mm for 19,21" |
| Derailleurs | Rear: Shimano Deore RD-M610 Shadow Design 10sp - Front: Shimano Deore FD-M610-B |
| Shifters | Shimano Deore SL-M610 3x10sp |
| Sprocket | Shimano Deore HG50-10sp, 11-13-15-17-19-21-24-28-32-36T |
Frameset
| Fork | Suntour XCM RL DS 27,5" 100mm |
|---|---|
| Frame | Kuma 27,5" Alu, 1.1/8" HT, BSA 68mm, seatpost diam. 31,6mm, low clamp diam. 34,9mm bottom pull, PM 160mm disc lower mounting dropouts QR 9x135mm, external cable routing under DT, sizes 15-17-19-21" |
| Headset | Fsa #10, stack height 22.2mm |
| Tec Obvius 3D forged Alloy 6061, +/-7°, 1.1/8", diam.31.8mm, 80mm for 15,17" and 90mm for 19-21" |
Wheels
| Tyres | Kenda 27,5" |
|---|---|
| Wheels | AlexRims MD17 |
Brakes
| Brakes | Brakes: Shimano M396 |
|---|
Components
| Handlebar | Tec Obvius flat top DB Alloy 6061, width 680mm, diam. 31,8mm, 5° backsweep |
|---|---|
| Saddle | Selle San Marco Era Start, steel rail, 277x135mm |
| Seatpost | Tec Obvius Alloy 6061-T6, lenght 350mm, diam. 31,6mm, 15mm seatback |
| Stem | Tec Obvius 3D forged Alloy 6061, +/-7°, 1.1/8", diam.31.8mm, 80mm for 15,17" and 90mm for 19-21" |
