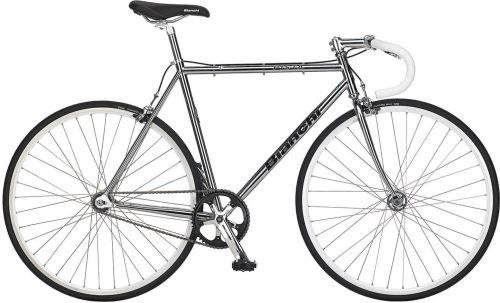

Bianchi Pista Steel
Serie: Pista Steel - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | Kmc Z-50 |
|---|---|
| Crank | Fsa Tempo Track 48T, JIS/3/32", crank length: 165mm-49/53cm, 170mm-55/59cm, 172.5mm-61/63cm |
| Derailleurs | Rear: - - Front: - |
| Shifters | - |
| Sprocket | Shimano SS-7600, 16T fixed sprocket, 1/2"x3/32" + freewheel sprocket 16T assembled on the left side |
Frameset
| Fork | Bianchi Cr-Mo Tig Welded 1" |
|---|---|
| Frame | Bianchi track frame, butted Cr-Mo main tubes w/PG CrMo rear stays, Tig welded, w/track dropouts, size: 46-49-51-53-55-57-59-61cm |
| Headset | VP-A34C, 1" steel |
| Alloy AL6061, diam 25.4MM, rise -15° for ext: 90mm-49/51cm, rise -17° for 110mm-53/55cm, rise -7° for 120mm-57/59cm, rise -17° 130mm-61cm |
Wheels
| Tyres | Vittoria Zaffiro Slick 700x25 |
|---|---|
| Wheels | DA-17 Alloy double wall |
Brakes
| Brakes | Brakes: RC-452 Alloy dual pivot - Brake levers: Tektro RL-721, alloy |
|---|
Components
| Handlebar | Steel, width: 420mm for all sizes, diam. 26mm |
|---|---|
| Saddle | Bianchi, steel satin rail |
| Seatpost | Alloy, diam. 27.2mm, L. 250mm |
| Stem | Alloy AL6061, diam 25.4MM, rise -15° for ext: 90mm-49/51cm, rise -17° for 110mm-53/55cm, rise -7° for 120mm-57/59cm, rise -17° 130mm-61cm |
