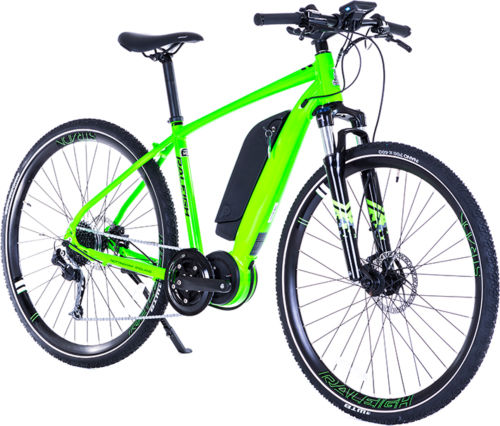

Raleigh STRADA TS ELECTRIC
Serie: STRADA TS ELECTRIC - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | Chain: KMC 9 Speed Chain |
|---|---|

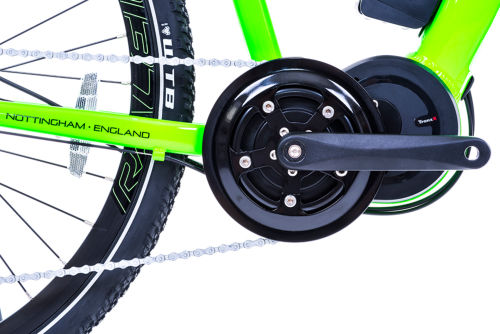

| Crank | Crankset: Alloy forged 170mm, 42t |

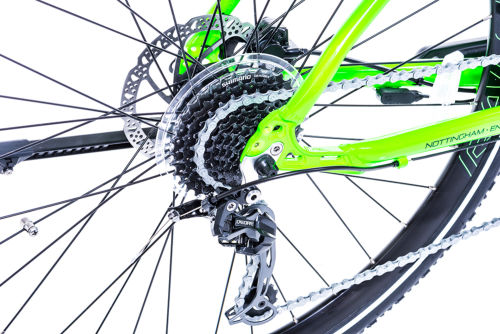

| Derailleurs | Rear Derailleur: Shimano Deore 9 speed |

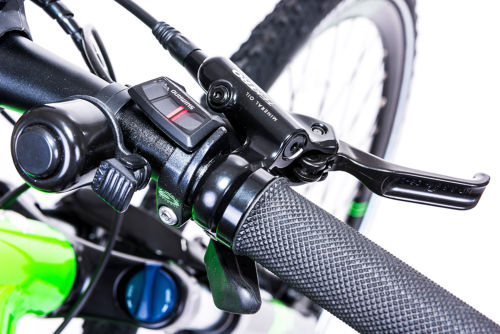

| Shifters | Shift Levers: Shimano Deore 9 speed trigger shift |
| Cassette | 9 speed 11-32 cassette |
Frameset
| Frame | Aluminium 6061 |
|---|---|
| Headset | Low Stack semi integrated |

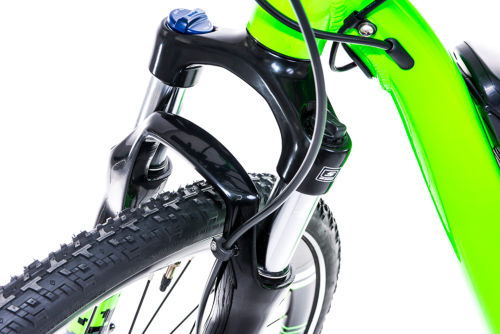

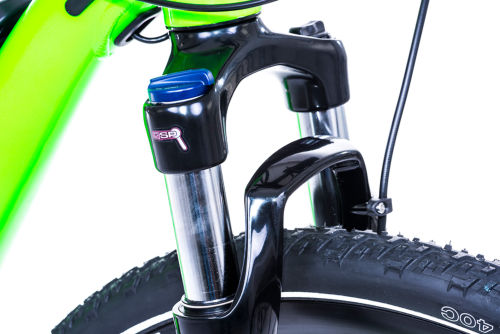

| Suspension | Suntour SF14 MT E45 Suspension fork 63mm travel |
| Raleigh alloy ahead stem |
Wheels
| Hub | Rear Brake: RSP alloy disc 6 bolt - Rear Hub: RSP alloy disc 6 bolt |
|---|---|
| Rims | Impulse tubeless compatible |
| Tyres | Front Tyre: WTB Nano 700 x 40c with reflective side wall - Rear Tyre: WTB Nano 700 x 40c with reflective side wall |
| Wheels | Front Wheel: Impulse Tubeless rim 36 hole on RSP disc hubs - Rear Wheel: Impulse Tubeless rim 36 hole on RSP disc hubs |
Brakes

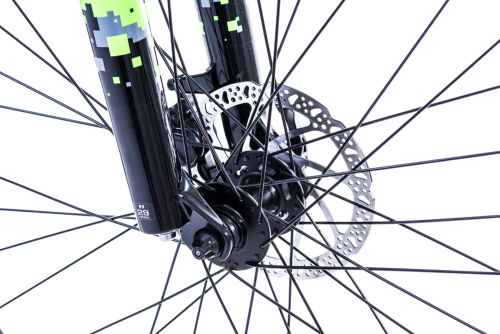

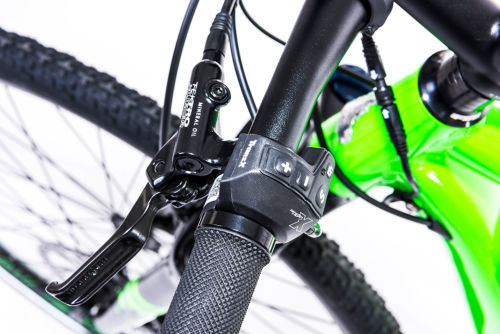

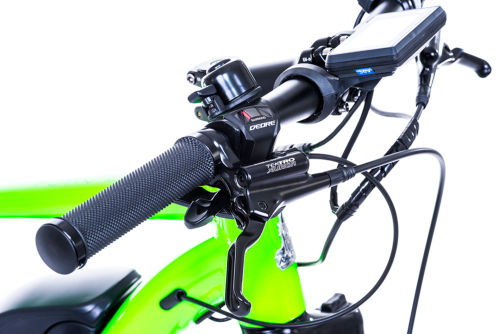

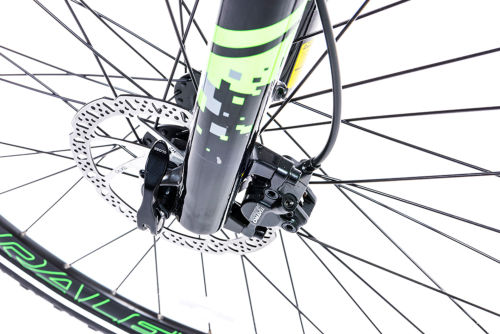

| Brakes | Brake Levers: Tektro HD-M290 hydraulic disc brakes - Front Brake: 160mm Tektro hydraulic disc brake - Rear Brake: 160mm Tektro hydraulic disc brake |
|---|
Components

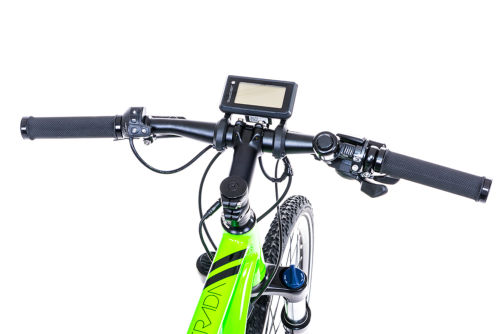

| Handlebar | Raleigh alloy flat bar |
|---|---|
| Grips | Velo round grip |
| Saddle | Selle Royal Shadow + |
| Seatpost | Alloy micro adjust |
| Stem | Raleigh alloy ahead stem |
| Pedals | Alloy pedals |
E-System

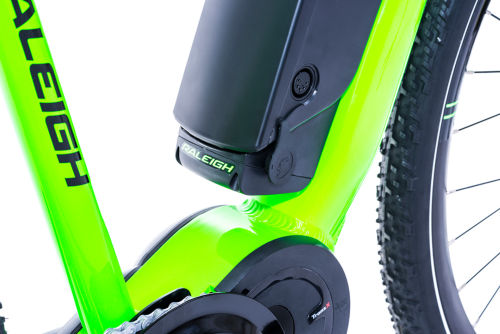

| Battery | TranzX 400wh 36V 11Ah BL 19 Battery |
|---|---|

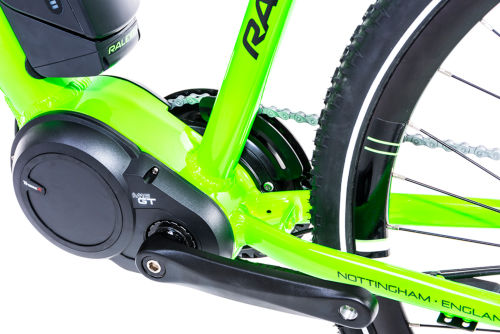

| Motor | New TranzX M16 36v 250w centre mount motor |
