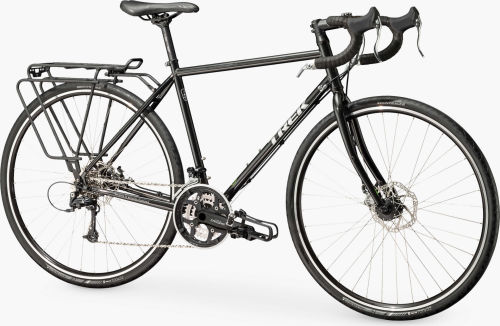

Trek 520 520 Disc
Serie: 520 - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | KMC X9 |
|---|---|
| Crank | Shimano Trekking M590 48/36/26 w/chainguard |
| Derailleurs | Front: Shimano Alivio - Rear: Shimano Deore |
| Cassette | Shimano HG50, 11-32, 9-speed |
Frameset
| Fork | Chromoly touring disc w/lowrider mounts |
|---|---|
| Frame | Trek butted chromoly disc touring, rack and mudguard mounts |
| Headset | VP Slimstak, sealed semi-cartridge bearings |
| Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
Wheels
| Hub | Front: Shimano M475 - Rear: Shimano M475 |
|---|---|
| Rims | Bontrager Tubeless Ready 36-hole |
| Tyres | Bontrager AW1 Hard-Case, 700x32c |
| Wheels | Shimano M475 front hub; Shimano M475 rear hub; Bontrager Tubeless Ready 36-hole rims |
Brakes
| Brakes | Hayes CX Expert mechanical disc |
|---|
Components
| Handlebar | Bontrager Race VR-C, 31.8mm |
|---|---|
| Saddle | Bontrager Evoke 1 |
| Seatpost | Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset |
| Stem | Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
geometry
| Frame size number | Actual frame size | Wheel size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 cm | 48 cm | 700c | 44.0 | 74.3° | 11.5 | 69.5° | 52.0 | 27.4 | 7.5 | 45.0 | 5.2 | 7.4 | 104.1 | 71.3 | 36.8 | 54.0 |
| 51 cm | 51 cm | 700c | 48.2 | 74.0° | 12.5 | 70.0° | 53.1 | 27.4 | 7.5 | 45.0 | 5.2 | 7.1 | 104.5 | 74.1 | 37.3 | 55.1 |
| 54 cm | 54 cm | 700c | 51.2 | 73.8° | 14.0 | 71.0° | 54.3 | 27.8 | 7.0 | 45.0 | 5.2 | 6.5 | 104.8 | 76.8 | 37.8 | 56.5 |
| 57 cm | 57 cm | 700c | 54.3 | 73.5° | 16.0 | 71.8° | 55.7 | 27.8 | 7.0 | 45.0 | 5.2 | 5.9 | 105.2 | 79.4 | 38.3 | 58.7 |
| 60 cm | 60 cm | 700c | 57.5 | 73.0° | 20.0 | 71.8° | 58.3 | 27.8 | 7.0 | 45.0 | 5.2 | 5.9 | 107.4 | 82.6 | 39.2 | 62.5 |
