Trek Checkpoint ALR 4
Serie: Checkpoint ALR - Year: 2021
Where to buy it
Specifications

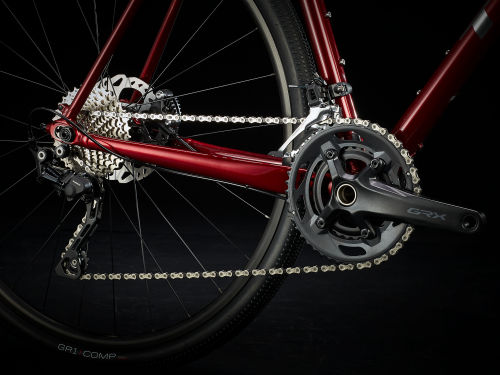

Drivetrain
| Chain | KMC X10 |
|---|---|
| Crank | Size: 49Shimano GRX RX600, 46/30, 165 mm length - Size: 52Shimano GRX RX600, 46/30, 170 mm length - Size: 54, 56Shimano GRX RX600, 46/30, 172.5 mm length - Size: 58, 61Shimano GRX RX600, 46/30, 175 mm length |
| Derailleurs | Front: Shimano GRX RX400, braze-on - Rear: Shimano GRX RX400, long cage, 36T max cog |
| Shifters | Shimano GRX RX400, 10-speed |
| Cassette | Shimano Tiagra HG500, 11-34, 10-speed |
Frameset

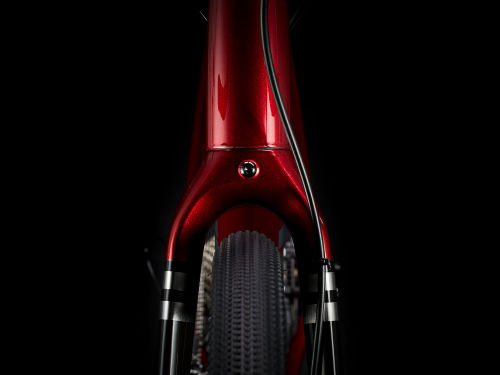

| Fork | Checkpoint carbon, tapered alloy steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
|---|---|

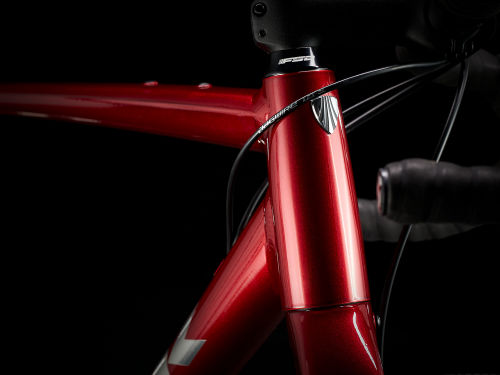

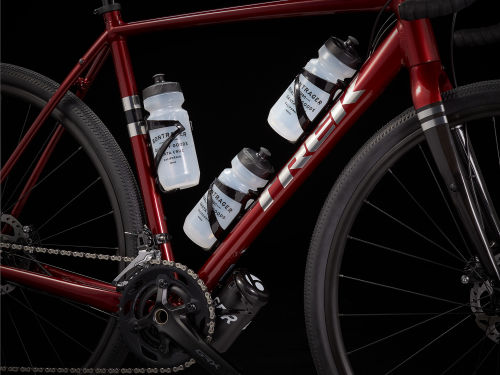

| Frame | 300 Series Alpha Aluminium, tapered head tube, Control Freak internal routing, 3S chain keeper, rack and fender mounts, flat mount disc, horizontal sliding dropouts, 142x12 mm thru-axle |
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Size: 49Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length - Size: 61Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle - Rear: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
|---|---|
| Rims | Bontrager Tubeless Ready, 28-hole, 17 mm width, Presta valve |
| Spokes | 14 g stainless steel |
| Tyres | Bontrager GR1 Comp, wire bead, 60 tpi, 700x40 c |
Brakes

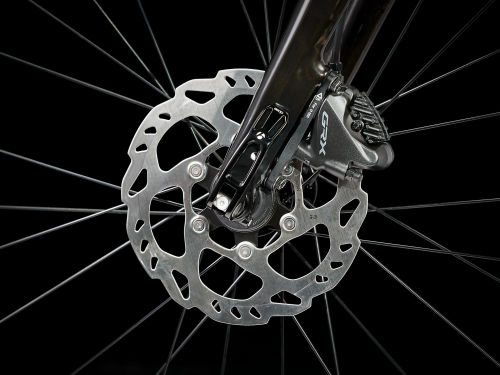

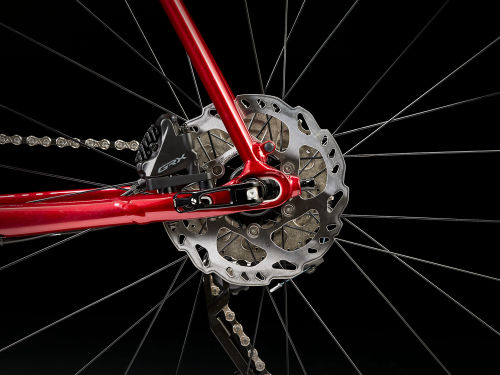

| Brakes | Shimano RX400 hydraulic disc |
|---|
Components

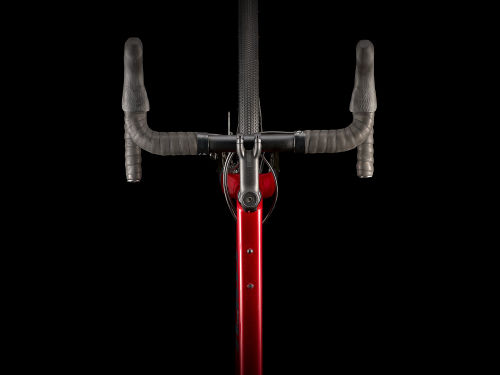

| Handlebar | Size: 49Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 38 cm width - Size: 52Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 40 cm width - Size: 54, 56Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 42 cm width - Size: 58, 61Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 44 cm width |
|---|---|
| Handlebar Tape | Bontrager Supertack Perf tape |
| Saddle | Bontrager Montrose Comp, steel rails, 138 mm width |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |
| Stem | Size: 49Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length - Size: 61Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
