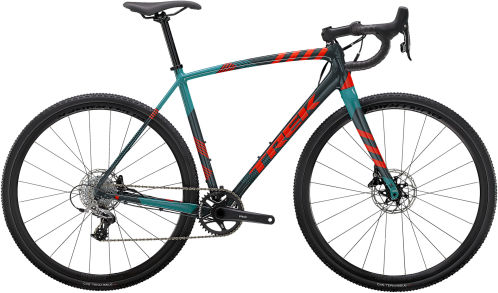

Trek Crockett 5 Disc
Serie: Crockett - Year: 2021
Where to buy it
Specifications

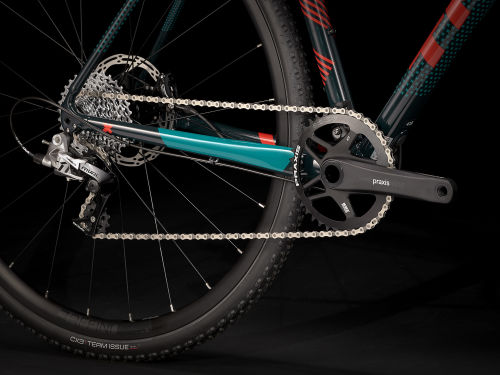

Drivetrain
| Chain | SRAM PC-1130, 11-speed |
|---|---|
| Crank | Size: 47Praxis Alba M30, 40T, 30 mm spindle, 165 mm length - Size: 50, 52Praxis Alba M30, 40T, 30 mm spindle, 170 mm length - Size: 54, 56Praxis Alba M30, 40T, 30 mm spindle, 172.5 mm length - Size: 58, 61Praxis Alba M30, 40T, 30 mm spindle, 175 mm length |
| Derailleurs | Rear: SRAM Rival 1, medium cage, 36T max cog |
| Cassette | SRAM PG-1130, 11-32, 11-speed |
Frameset
| Fork | Trek Cross carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 395 mm axle-to-crown, 12x100 mm thru axle |
|---|---|

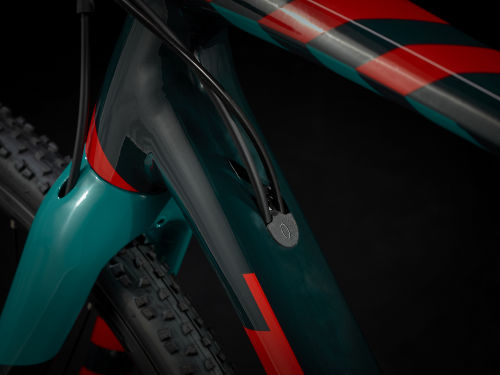

| Frame | 300 Series Alpha Aluminium, Invisible Weld Technology, tapered head tube, Control Freak internal routing, 3S chain keeper, flat-mount disc, 142x12 mm thru axle |
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Size: 47Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: 50Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length - Size: 61Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle - Rear: Bontrager alloy, sealed bearing, CenterLock, Shimano 11-speed freehub, 142x12 mm thru axle |
|---|---|
| Rims | Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Tyres | Bontrager CX3 Team Issue, aramid bead, 120 tpi, 700x32 c |
Brakes

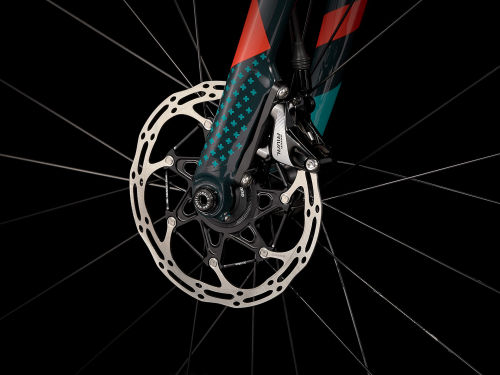

| Brakes | SRAM Rival hydraulic disc |
|---|
Components

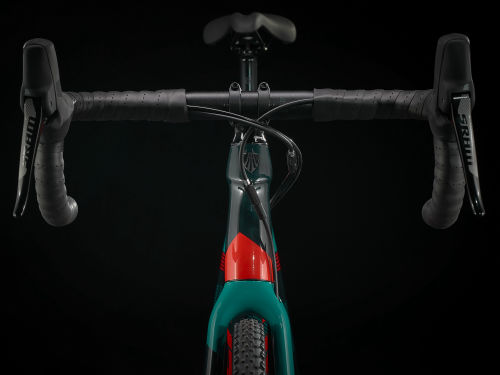

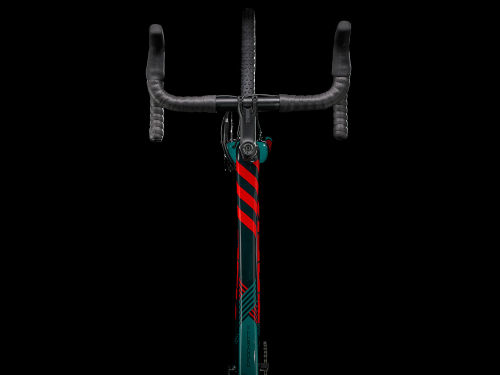

| Handlebar | Size: 47Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 38 cm width - Size: 50, 52Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width - Size: 54, 56Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width - Size: 58, 61Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width |
|---|---|
| Handlebar Tape | Bontrager Supertack Perf tape |
| Saddle | Size: 47, 50, 52Bontrager P3 Verse Comp, steel rails, 155 mm width - Size: 54, 56, 58, 61Bontrager P3 Verse Comp, steel rails, 145 mm width |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |
| Stem | Size: 47Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: 50Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length - Size: 61Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
