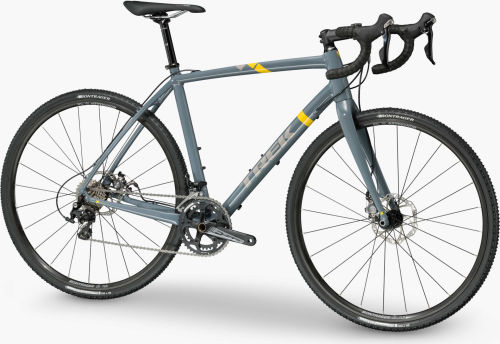

Trek Crockett Crockett 5 Disc
Serie: Crockett - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | Shimano 105 |
|---|---|
| Crank | FSA Energy Cross, 46/36 |
| Derailleurs | Front: Shimano 105 - Rear: Shimano 105 |
| Shifters | Shimano 105, 11-speed |
| Cassette | Shimano 105, 11-28, 11-speed |
Frameset
| Fork | Trek IsoSpeed Cross carbon disc, E2 steerer, 15mm thru-axle |
|---|---|
| Frame | 200 Series Alpha Aluminium, E2, BB86.5, internal control routing, disc-brake-balanced post mount, 3S chain keeper |
| Headset | FSA IS-2 alloy, integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Bontrager Elite, 31.8mm, 7 degree, comes w/ computer and light mounts |
Wheels
| Hub | Front: Bontrager alloy sealed bearing, 15mm alloy axle, Center Lock front hub - Rear: Bontrager alloy |
|---|---|
| Rims | Bontrager Tubeless Ready disc |
| Tyres | Bontrager CX3 Team Issue, 120tpi, aramid bead, 700x32c |
| Wheels | Bontrager alloy sealed bearing, 15mm alloy axle, CenterLock front hub; Bontrager alloy rear hub; Bontrager Tubeless Ready disc rims |
Brakes
| Brakes | Hayes CX 5 mechanical disc |
|---|
Components
| Handlebar | Bontrager Race, VR-C, 31.8mm |
|---|---|
| Saddle | Bontrager Paradigm R, hollow chromoly rails |
| Seatpost | Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset |
| Stem | Bontrager Elite, 31.8mm, 7 degree, comes w/ computer and light mounts |
geometry
| Frame size number | Actual frame size | Wheel size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 cm | 50 cm | 700c | 47.6 | 75.0° | 11.0 | 71.0° | 51.8 | 7.0 | 42.5 | 4.5 | 7.4 | 100.1 | 74.7 | 37.5 | 53.4 |
| 52 cm | 52 cm | 700c | 49.3 | 74.5° | 12.3 | 71.5° | 53.1 | 7.0 | 42.5 | 4.5 | 7.1 | 100.5 | 76.1 | 37.9 | 54.7 |
| 54 cm | 54 cm | 700c | 51.3 | 74.0° | 13.8 | 72.0° | 54.4 | 6.8 | 42.5 | 4.5 | 6.7 | 101.0 | 77.9 | 38.3 | 56.2 |
| 56 cm | 56 cm | 700c | 53.3 | 73.6° | 15.7 | 72.0° | 55.8 | 6.8 | 42.5 | 4.5 | 6.7 | 102.0 | 79.6 | 38.7 | 58.0 |
| 58 cm | 58 cm | 700c | 55.3 | 73.3° | 17.6 | 72.3° | 57.0 | 6.5 | 42.5 | 4.5 | 6.6 | 102.8 | 81.6 | 39.1 | 59.7 |
| 61 cm | 61 cm | 700c | 58.3 | 73.0° | 20.5 | 72.3° | 58.8 | 6.5 | 42.5 | 4.5 | 6.6 | 104.3 | 84.3 | 39.7 | 62.4 |
