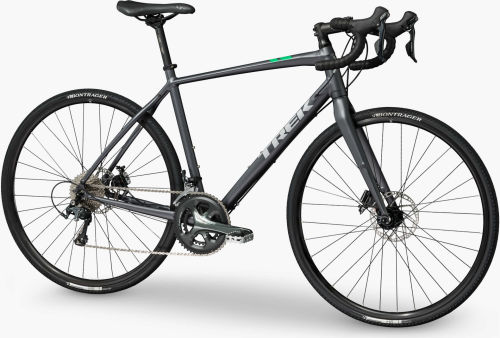

Trek CrossRip CrossRip 2
Serie: CrossRip - Year: 2017
Where to buy it
Specifications
Drivetrain
| Crank | Shimano Tiagra, 50/34 (compact) |
|---|---|
| Derailleurs | Front: Shimano Tiagra - Rear: Shimano Tiagra |
| Shifters | Shimano Tiagra, 10-speed |
| Cassette | Shimano Tiagra, 11-34, 10-speed |
Frameset
| Fork | Carbon all-road disc, alloy steerer, lowrider mounts |
|---|---|
| Frame | 200 Series Alpha Aluminium w/rack and mudguard mounts, DuoTrap S compatible, internal cable routing, inboard disc brake mounts |
| Headset | VP Slimstak, sealed semi-cartridge bearings |
| Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
Wheels
| Hub | Front: Bontrager alloy sealed bearing - Rear: Bontrager sealed bearing, alloy axle |
|---|---|
| Rims | Bontrager Tubeless Ready |
| Tyres | Bontrager H5 Hard-Case Ultimate, 700x32c |
| Wheels | Bontrager alloy sealed bearing front hub; Bontrager sealed bearing, alloy axle rear hub; Bontrager Tubeless Ready rims |
Brakes
| Brakes | TRP HY/RD cable/hydro disc |
|---|
Components
| Handlebar | Bontrager Race Lite IsoZone, VR-CF, 31.8mm |
|---|---|
| Saddle | Bontrager Evoke 1 |
| Seatpost | Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset |
| Stem | Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
geometry
| Frame size number | Actual frame size | Wheel size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 cm | 49 cm | 700c | 49.0 | 75.0° | 11.5 | 69.9° | 52.2 | 27.7 | 7.4 | 43.5 | 5.0 | 7.6 | 103.1 | 73.9 | 37.6 | 53.6 |
| 52 cm | 52 cm | 700c | 52.0 | 74.0° | 12.1 | 70.5° | 52.4 | 27.7 | 7.4 | 43.5 | 5.0 | 7.2 | 103.7 | 75.6 | 38.7 | 56.0 |
| 54 cm | 54 cm | 700c | 54.0 | 73.5° | 14.3 | 70.5° | 55.4 | 27.7 | 7.4 | 43.5 | 5.0 | 7.2 | 104.3 | 77.5 | 39.6 | 58.2 |
| 56 cm | 56 cm | 700c | 56.0 | 73.0° | 16.0 | 71.0° | 57.0 | 28.1 | 7.0 | 43.5 | 5.0 | 6.9 | 105.1 | 79.4 | 40.2 | 59.6 |
| 58 cm | 58 cm | 700c | 58.0 | 73.0° | 17.3 | 71.5° | 57.8 | 28.1 | 7.0 | 43.5 | 5.0 | 6.9 | 105.4 | 81.0 | 40.6 | 61.1 |
| 61 cm | 61 cm | 700c | 61.0 | 72.5° | 19.3 | 71.5° | 59.4 | 28.1 | 7.0 | 43.5 | 5.0 | 6.6 | 106.5 | 83.4 | 41.0 | 63.0 |
