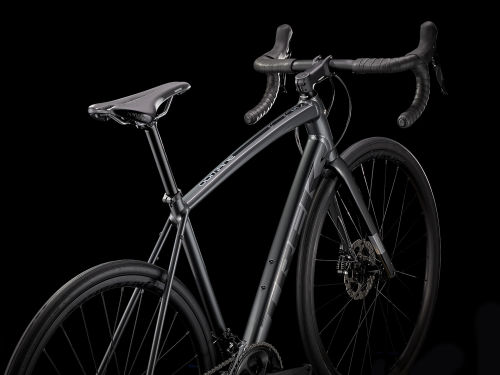

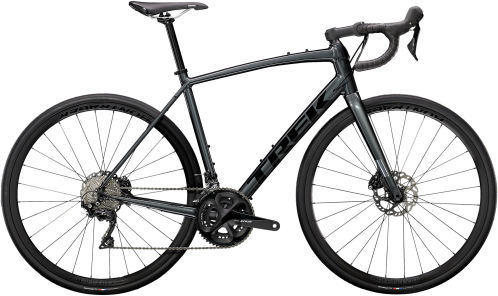

Trek Domane AL 5 Disc
Serie: Domane AL - Year: 2021
Where to buy it
Specifications

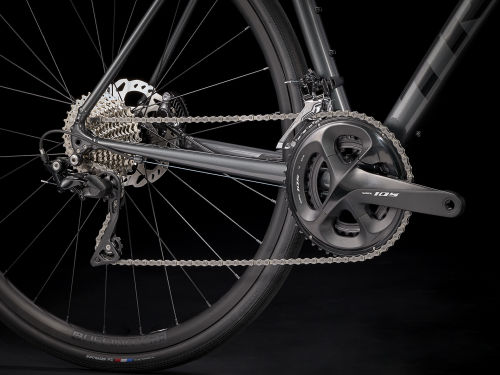

Drivetrain
| Chain | Shimano HG601 |
|---|---|
| Crank | Size: 44Shimano 105 R7000, 50/34 (compact), 165 mm length - Size: 49, 52Shimano 105 R7000, 50/34 (compact), 170 mm length - Size: 54, 56Shimano 105 R7000, 50/34 (compact), 172.5 mm length - Size: 58, 61Shimano 105 R7000, 50/34 (compact), 175 mm length |
| Derailleurs | Front: Shimano 105 R7000, 31 mm clamp - Rear: Shimano 105 R7000, long cage, 34T max cog |
| Shifters | Shimano 105 R7020, 11-speed |
| Cassette | Shimano 105 HG700-11, 11-34, 11-speed |
Frameset
| Fork | Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
|---|---|

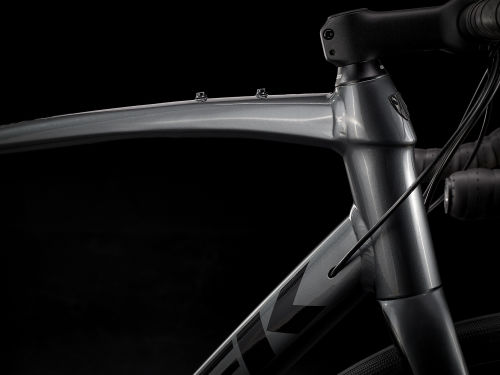

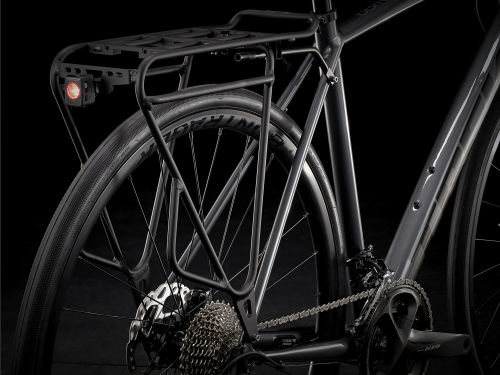

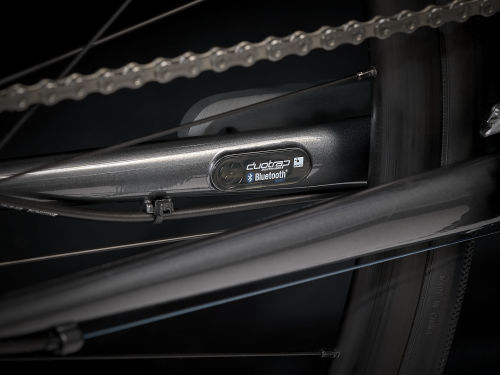

| Frame | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle |
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Size: 44Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: 49Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length - Size: 61Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle - Rear: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
|---|---|
| Rims | Bontrager Affinity Disc, Tubeless Ready, 28-hole, 21 mm width, presta valve |
| Spokes | 14 g stainless steel |
| Tyres | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c |
Brakes
| Brakes | Shimano 105 hydraulic disc |
|---|
Components

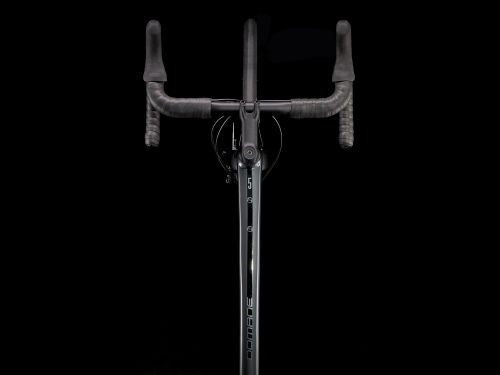

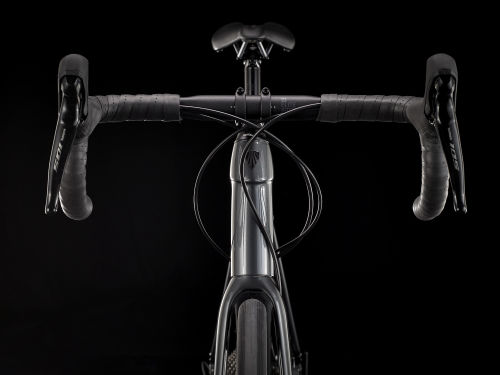

| Handlebar | Size: 44, 49Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width - Size: 52Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width - Size: 54, 56Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 42 cm width - Size: 58, 61Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 44 cm width |
|---|---|
| Handlebar Tape | Bontrager Supertack Perf tape |
| Saddle | Size: 44, 49, 52Bontrager P3 Verse Comp, steel rails, 155 mm width - Size: 54, 56, 58, 61Bontrager P3 Verse Comp, steel rails, 145 mm width |
| Seatpost | Size: 44, 49Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length - Size: 52, 54, 56, 58, 61Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |

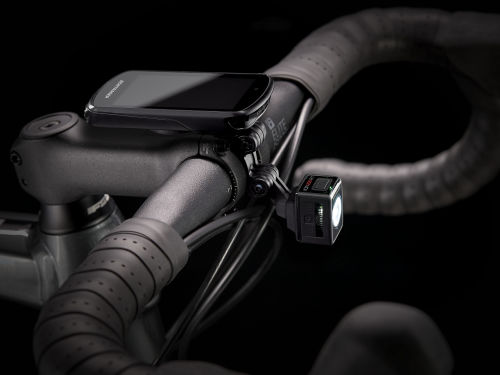

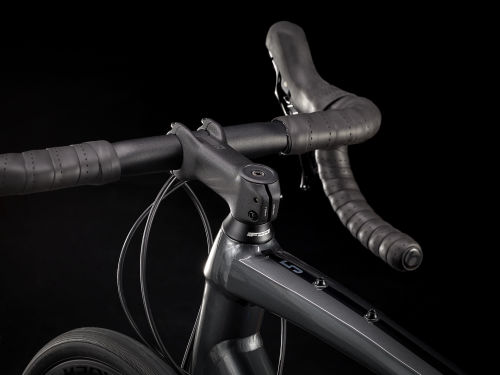

| Stem | Size: 44Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: 49Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length - Size: 61Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
