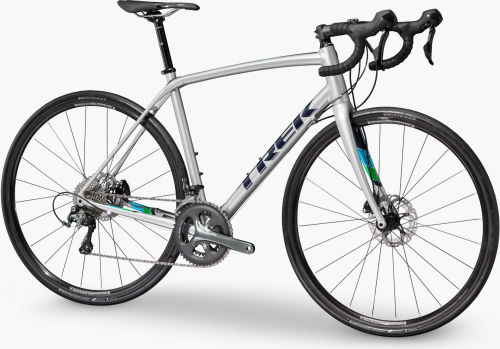

Trek Domane Domane ALR 4 Disc
Serie: Domane - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | Shimano Tiagra |
|---|---|
| Crank | Shimano Tiagra, 50/34 (compact) |
| Derailleurs | Front: Shimano Tiagra - Rear: Shimano Tiagra |
| Shifters | Shimano RS405, 10-speed |
| Cassette | Shimano Tiagra, 11-32, 10-speed |
Frameset
| Fork | Domane carbon, E2 tapered steerer, hidden mudguard mounts |
|---|---|
| Frame | 200 Series Alpha Aluminium, IsoSpeed, Invisible Weld Technology, E2 tapered head tube, BB86.5, hidden mudguard mounts, DuoTrap S compatible |
| Headset | Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom |
| Bontrager Elite, 31.8mm, 7 degree, w/computer and light mounts |
Wheels
| Hub | Front: Bontrager alloy sealed bearing, 12mm alloy axle - Rear: Bontrager alloy Center Lock, 142x12 |
|---|---|
| Rims | Bontrager Tubeless Ready |
| Tyres | Bontrager R1 Hard-Case Lite, 700x32c |
| Wheels | Bontrager alloy sealed bearing, 12mm alloy axle front hub; Bontrager alloy Center Lock, 142x12 rear hub; Bontrager Tubeless Ready rims |
Brakes
| Brakes | Shimano RS405 hydraulic disc, Flat Mount |
|---|
Components
| Handlebar | Bontrager Race VR-C, 31.8mm |
|---|---|
| Saddle | Bontrager Affinity Comp, chromoly rails |
| Seatpost | Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset |
| Stem | Bontrager Elite, 31.8mm, 7 degree, w/computer and light mounts |
geometry
| Frame size number | Actual frame size | Wheel size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack | Saddle rail height minimum | Saddle rail height maximum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 cm | 44 cm | 700c | 40.8 | 74.6° | 10.0 | 70.4° | 49.9 | 7.2 | 41.0 | 5.0 | 6.8 | 97.1 | 68.2 | 36.2 | 49.9 | 53.5 | 63.0 |
| 47 cm | 47 cm | 700c | 44.4 | 74.6° | 11.5 | 71.2° | 51.3 | 7.2 | 41.0 | 4.5 | 6.7 | 97.4 | 69.8 | 36.9 | 52.2 | 55.5 | 65.0 |
| 50 cm | 50 cm | 700c | 45.0 | 74.6° | 13.0 | 71.1° | 51.9 | 8.0 | 42.0 | 5.3 | 6.0 | 99.6 | 71.6 | 36.8 | 54.6 | 58.5 | 68.0 |
| 52 cm | 52 cm | 700c | 47.5 | 74.2° | 14.5 | 71.3° | 53.0 | 8.0 | 42.0 | 5.3 | 5.9 | 100.3 | 73.5 | 37.1 | 56.1 | 61.5 | 71.0 |
| 54 cm | 54 cm | 700c | 50.0 | 73.7° | 16.0 | 71.3° | 54.2 | 8.0 | 42.0 | 5.3 | 5.9 | 101.0 | 75.4 | 37.4 | 57.5 | 64.0 | 73.5 |
| 56 cm | 56 cm | 700c | 52.5 | 73.3° | 17.5 | 71.9° | 55.4 | 7.8 | 42.0 | 4.8 | 6.1 | 100.8 | 77.6 | 37.7 | 59.1 | 67.0 | 76.5 |
| 58 cm | 58 cm | 700c | 54.8 | 73.0° | 19.5 | 72.0° | 56.7 | 7.8 | 42.5 | 4.8 | 6.0 | 102.2 | 79.6 | 38.0 | 61.1 | 69.0 | 78.5 |
| 60 cm | 60 cm | 700c | 56.7 | 72.8° | 22.0 | 72.1° | 57.9 | 7.5 | 42.5 | 4.8 | 5.9 | 103.2 | 81.7 | 38.3 | 63.2 | 71.0 | 80.5 |
| 62 cm | 62 cm | 700c | 58.6 | 72.5° | 24.5 | 72.1° | 59.3 | 7.5 | 42.5 | 4.8 | 5.9 | 104.2 | 83.5 | 38.6 | 65.6 | 73.0 | 82.5 |
