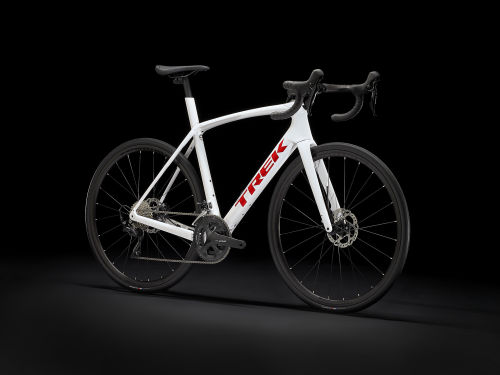

Trek Domane SL 5
Serie: Domane SL - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | Shimano 105 HG601, 11-speed |
|---|---|
| Crank | Size: 44, 47Shimano 105 R7000, 50/34 (compact), 165 mm length - Size: 50, 52Shimano 105 R7000, 50/34 (compact), 170 mm length - Size: 54, 56Shimano 105 R7000, 50/34 (compact), 172.5 mm length - Size: 58, 60, 62Shimano 105 R7000, 50/34 (compact), 175 mm length |
| Derailleurs | Front: Shimano 105 R7000, braze-on - Rear: Shimano 105 R7000, long cage, 34T max cog |
| Shifters | Size: 44, 47, 50, 52Shimano 105 R7025, short-reach lever, 11-speed - Size: 54, 56, 58, 60, 62Shimano 105 R7020, 11-speed |
| Cassette | Shimano 105 HG700-11, 11-34, 11-speed |
Frameset
| Fork | Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
|---|---|

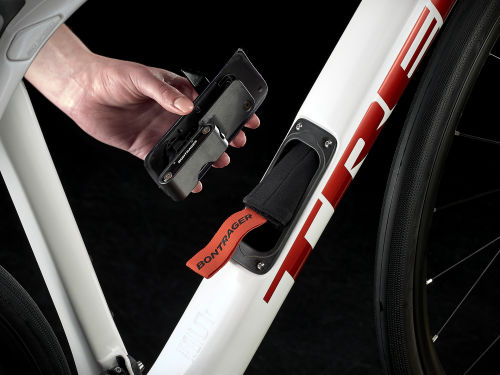

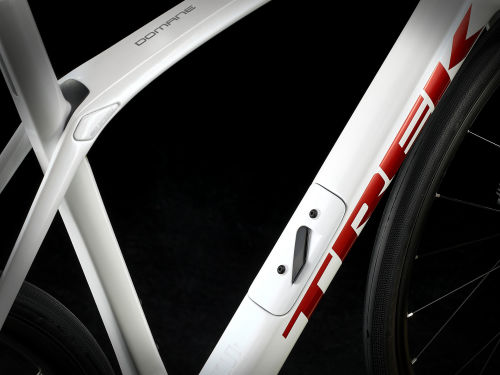

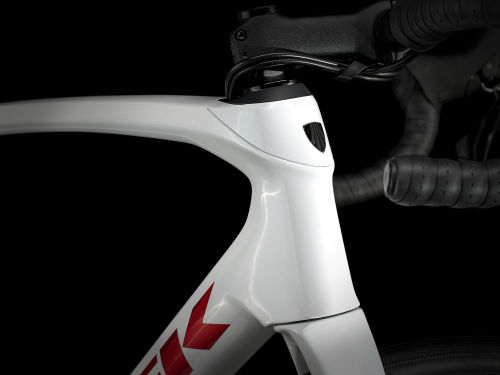

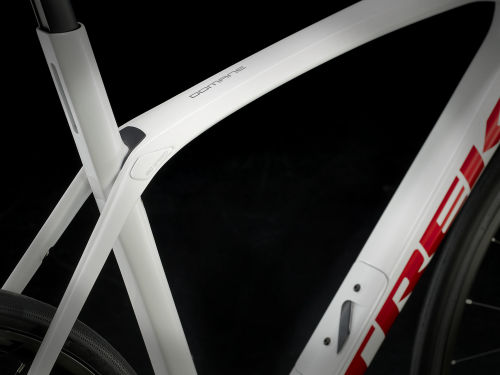

| Frame | 500 Series OCLV Carbon, front and rear IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, DuoTrap S-compatible, mudguard mounts, flat-mount disc, 142x12 mm thru axle |
| Size: 44Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: 47Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: 50Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length - Size: 60, 62Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length - Size: 56, 58Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length - Size: 60, 62Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle - Rear: Bontrager alloy, sealed bearing, CenterLock, Shimano 11-speed freehub, 142x12 mm thru axle |
|---|---|
| Rims | Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Tyres | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c |
Brakes

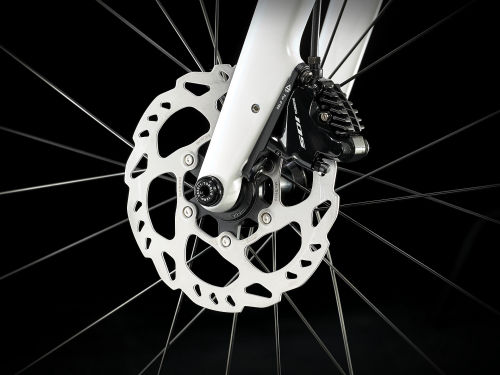

| Brakes | Shimano 105 hydraulic disc |
|---|
Components

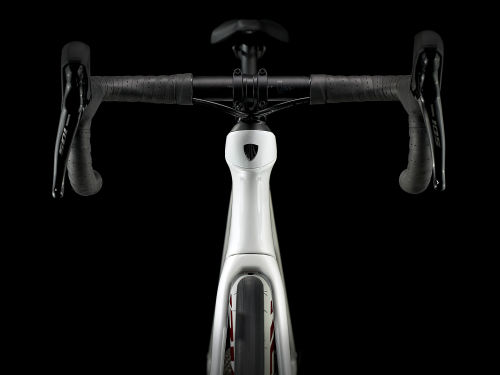

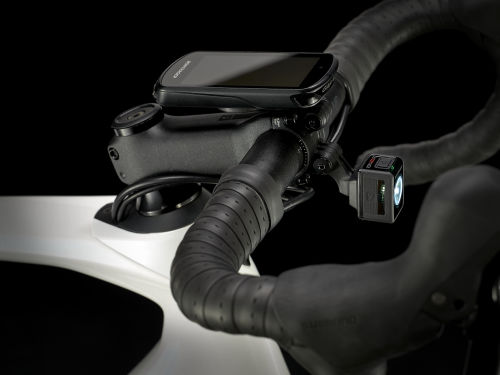

| Handlebar | Size: 44, 47Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 36 cm width - Size: 50Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width - Size: 52Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width - Size: 54, 56Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width - Size: 58, 60, 62Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width |
|---|---|
| Handlebar Tape | Bontrager Supertack Perf tape |
| Saddle | Bontrager Arvada Comp, steel rails, 138 mm width |

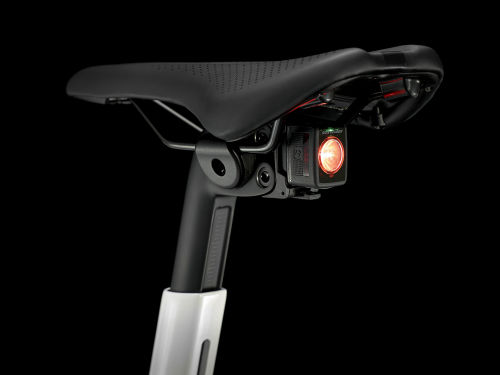

| Seatpost | Size: 44, 47, 50, 52, 54, 56Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, short length - Size: 58, 60, 62Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, tall length |
| Stem | Size: 44Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: 47Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: 50Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length - Size: 60, 62Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length - Size: 56, 58Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length - Size: 60, 62Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length |
