Specifications

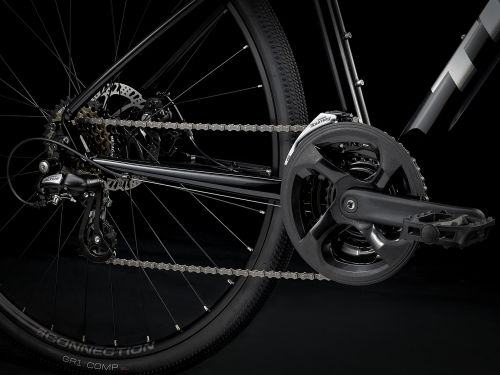

Drivetrain
Chain | KMC Z7 |
---|---|
Crank | Forged alloy, 48/38/28, chainguard, 170 mm length |
Derailleurs | Front: Shimano Tourney TY510, 34.9 mm clamp, top swing, dual pull - Rear: Shimano Altus M310 |
Shifters | Shimano Altus EF500, 7-speed |
Cassette | SunRace MFM300 freewheel, 14-34, 7-speed |
Frameset

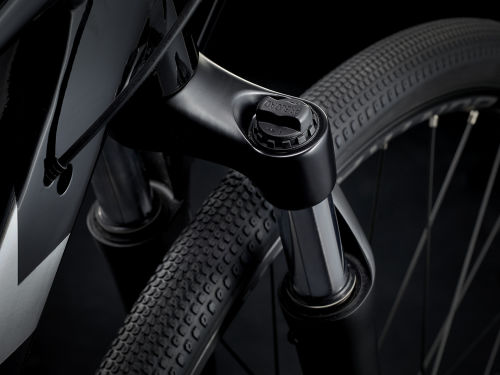

Fork | SR Suntour NEX, coil spring, preload, 100x5 mm QR, 63 mm travel |
---|---|
Frame | Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR |
Headset | 1-1/8" threadless, sealed cartridge bearings |
Size: S, MBontrager alloy, 25.4 mm clamp, 10-degree, 90mm length - Size: L, XLBontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length |
Wheels
Hub | Front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR - Rear: Formula DC-31, alloy, 6-bolt, 6/7/8-speed freewheel, 135x5 mm QR |
---|---|

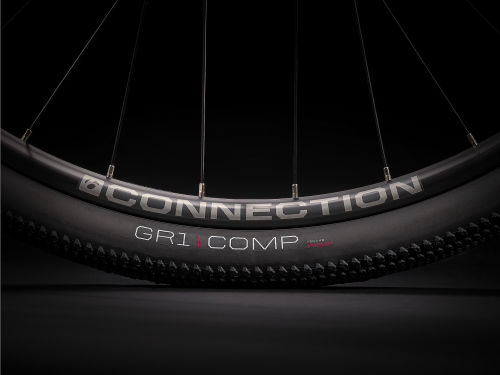

Rims | Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve |
Spokes | 14 g stainless steel, black |
Tyres | Bontrager GR1 Comp, wire bead, 60 tpi, 700x40 c |
Brakes

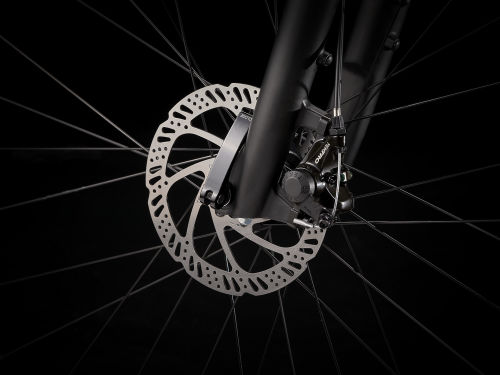

Brakes | Tektro MD-M280 mechanical disc, 160 mm rotor |
---|
Components

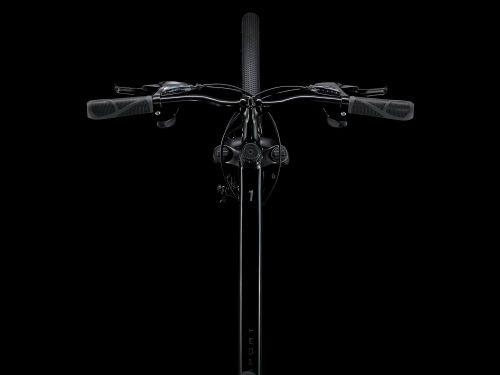

Handlebar | Size: S, MBontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width - Size: L, XLBontrager Riser, steel, 25.4 mm, 30 mm rise, 620 mm width |
---|---|

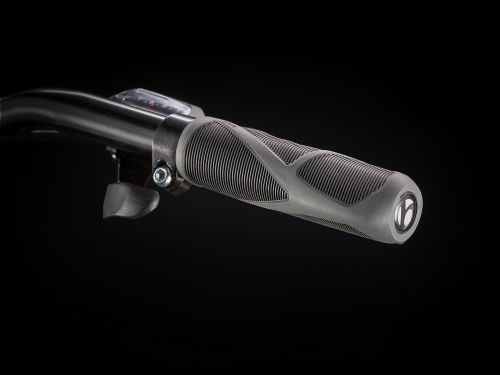

Grips | Bontrager Satellite |

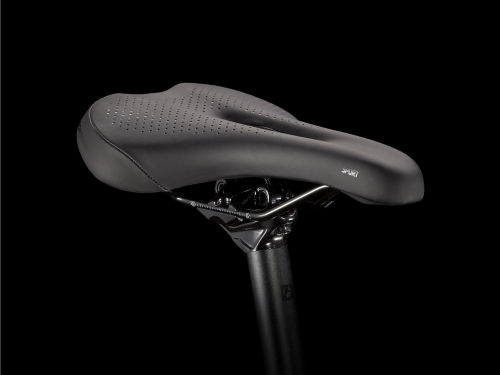

Saddle | Bontrager Sport |
Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
Stem | Size: S, MBontrager alloy, 25.4 mm clamp, 10-degree, 90mm length - Size: L, XLBontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length |
Pedals | Wellgo nylon platform |
