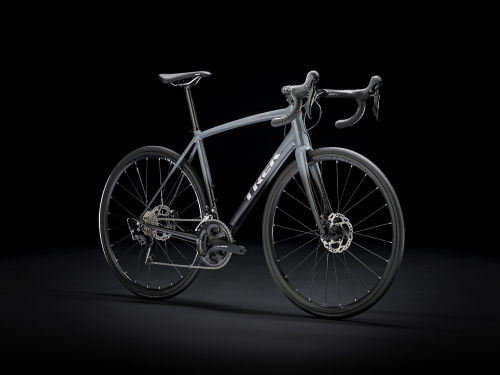

Trek Émonda ALR 5
Serie: Émonda ALR - Year: 2021
Where to buy it
Specifications

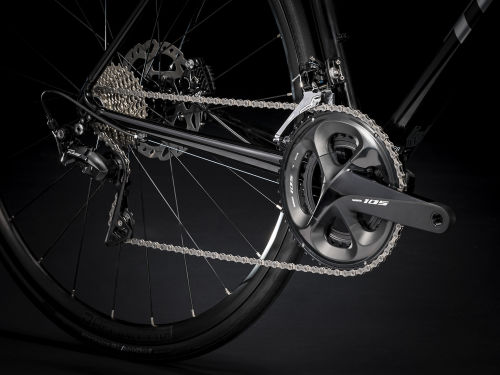

Drivetrain
| Chain | Shimano 105 HG601, 11-speed |
|---|---|
| Crank | Size: 47, 50, 52Shimano 105 R7000, 50/34 (compact), 170 mm length - Size: 54, 56Shimano 105 R7000, 50/34 (compact), 172.5 mm length - Size: 58, 60, 62, 64Shimano 105 R7000, 50/34 (compact), 175 mm length |
| Derailleurs | Front: Shimano 105 R7000, braze-on - Rear: Shimano 105 R7000, short cage, 30T max cog |
| Shifters | Shimano 105 R7020, 11-speed |
| Cassette | Shimano 105 R7000, 11-28,11-speed |
Frameset

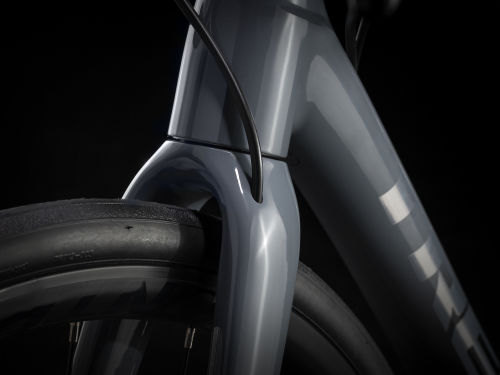

| Fork | Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle |
|---|---|

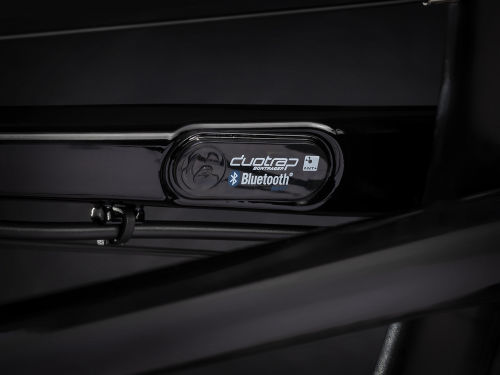

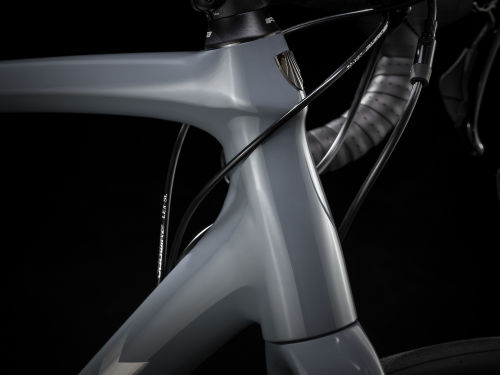

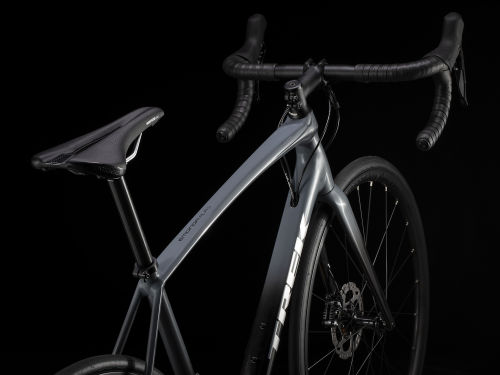

| Frame | Ultralight 300 Series Alpha Aluminium, Invisible Weld technology, tapered head tube, Control Freak internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle |

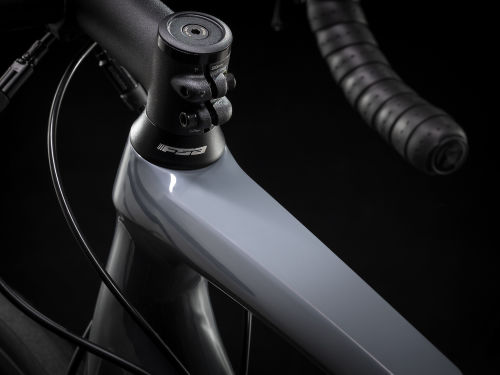

| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Size: 47Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: 50Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length - Size: 60, 62Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length - Size: 64Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 120 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle - Rear: Bontrager alloy, sealed bearing, CenterLock, Shimano 11-speed freehub, 142x12 mm thru axle |
|---|---|
| Rims | Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Tyres | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x 25 c |
Brakes

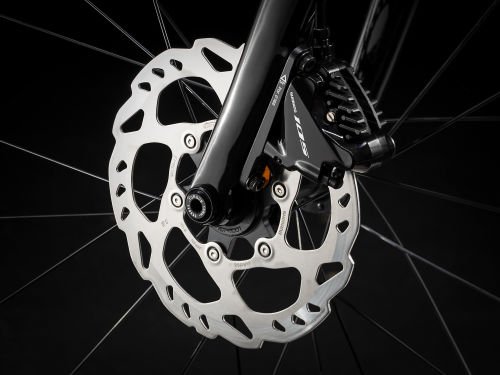

| Brakes | Shimano 105 hydraulic disc |
|---|
Components

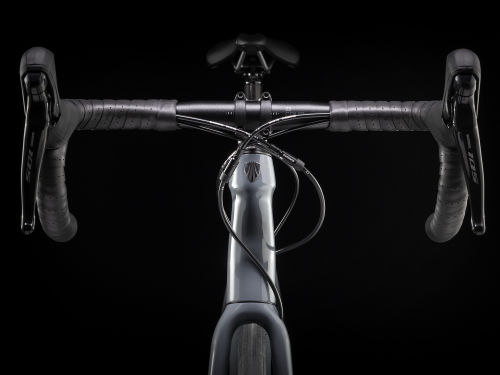

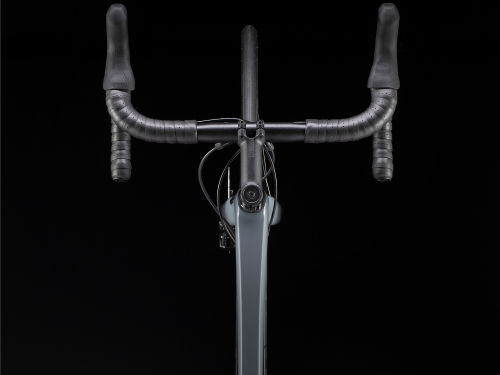

| Handlebar | Size: 47, 50, 52Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width - Size: 54, 56Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width - Size: 58, 60, 62, 64Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width |
|---|---|
| Handlebar Tape | Bontrager Supertack Perf tape |
| Saddle | Bontrager Montrose Comp, steel rails, 138 mm width |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| Stem | Size: 47Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: 50Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: 56, 58Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length - Size: 60, 62Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length - Size: 64Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 120 mm length |
