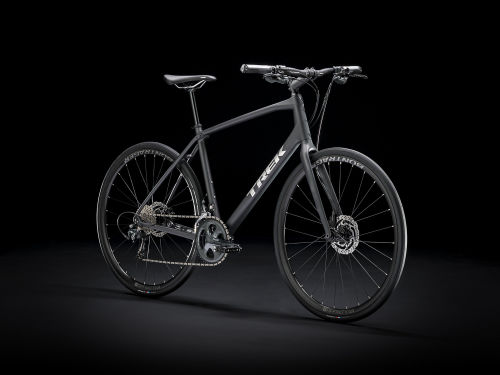

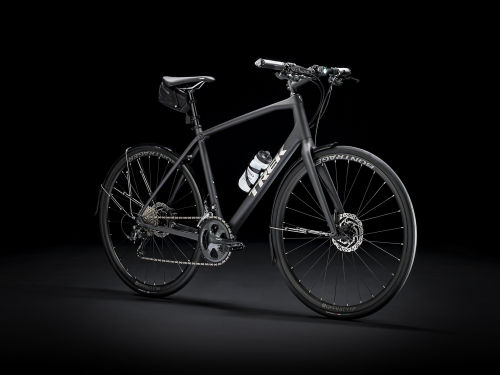

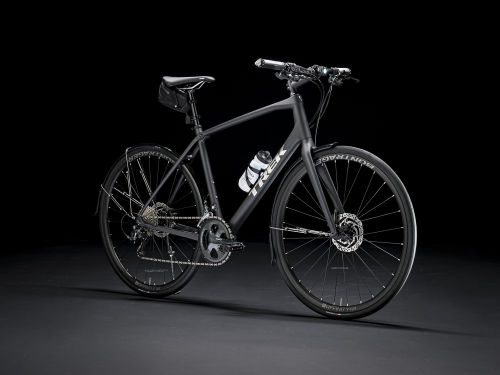

Trek FX Sport 5
Serie: FX - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | KMC X10 |
|---|---|
| Crank | Size: XS, SShimano Tiagra 4700, 50/34, 170 mm length - Size: M, LShimano Tiagra 4700, 50/34, 172.5 mm length - Size: XLShimano Tiagra 4700, 50/34, 175 mm length |
| Derailleurs | Front: Shimano Tiagra 4700, braze-on - Rear: Shimano Tiagra 4700, long cage, 34T max cog |
| Shifters | Shimano Tiagra 4700, 10-speed |
| Cassette | Shimano Tiagra HG500, 11-34, 10-speed |
Frameset
| Fork | Size: XS, S, M, L, XLFX Carbon, threadless alloy steerer, hidden mudguard mounts, flat-mount disc, 405 mm axle-to-crown, 100x12 mm thru axle - Size: XS, S, M, L, XLFX Carbon, flat mount disc, hidden fender mounts, 405mm axle-to-crown, 100x12mm thru axle |
|---|---|

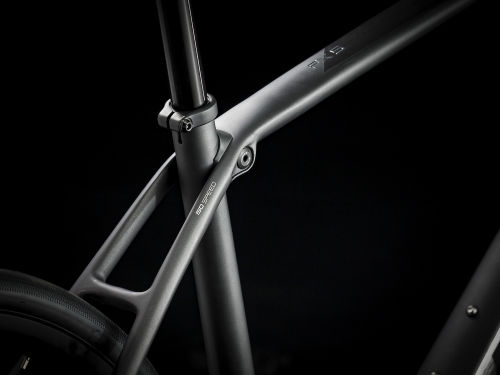

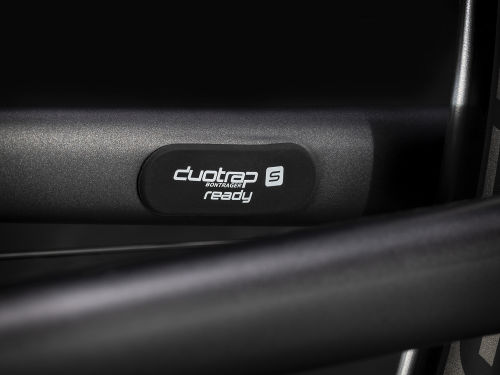

| Frame | 400 series OCLV carbon, IsoSpeed, internal routing, 3s chain keeper, DuoTrap S-compatible, mudguard mounts, flat-mount disc, 142x12 mm thru axle |
| Headset | 1-1/8" threadless, sealed cartridge bearings |
| Size: XSBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: S, MBontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length - Size: L, XLBontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle - Rear: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
|---|---|

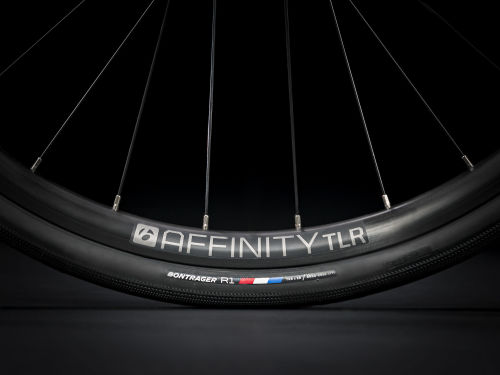

| Rims | Bontrager Affinity Disc, Tubeless Ready, 28-hole, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyres | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c |
Brakes
| Brakes | Shimano MT201 hydraulic disc, flat-mount, 160 mm rotor |
|---|
Components
| Handlebar | Size: XS, SBontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width - Size: M, L, XLBontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width |
|---|---|

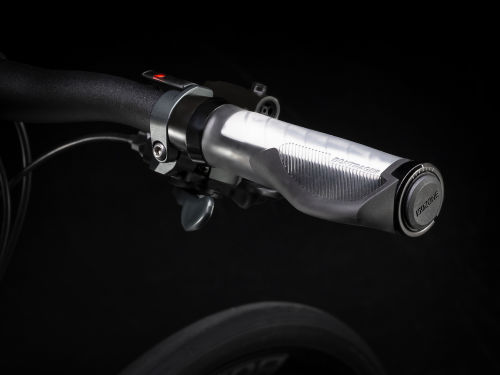

| Grips | Bontrager Satellite IsoZone Plus, lock-on, ergonomic |

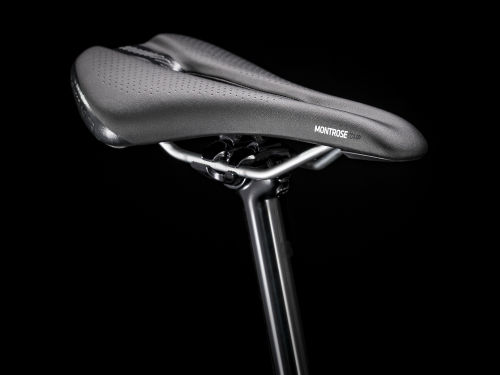

| Saddle | Bontrager Montrose Comp, steel rails, 138 mm width |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |
| Stem | Size: XSBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length - Size: S, MBontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length - Size: L, XLBontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length |
| Pedals | VP Resin body, alloy cage, toe clip |
