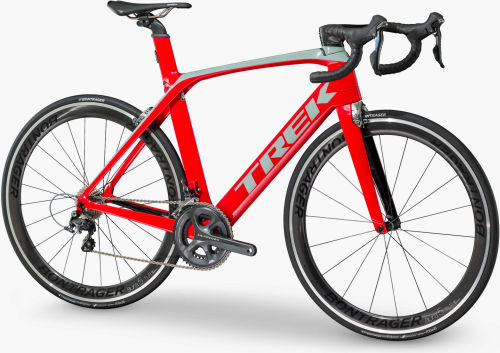

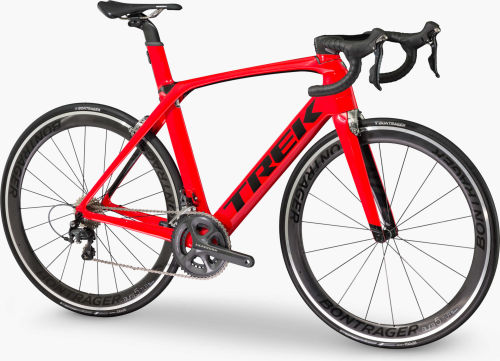

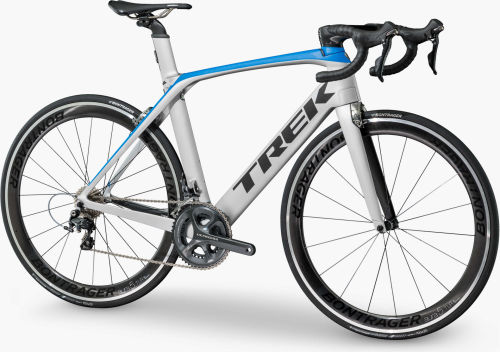

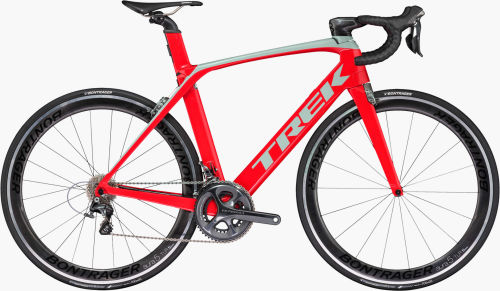

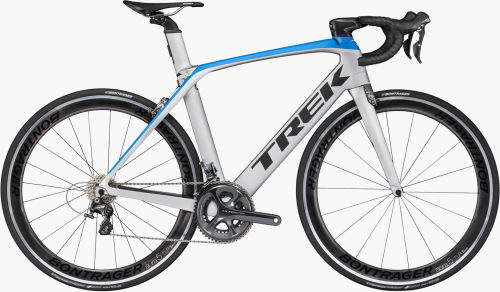

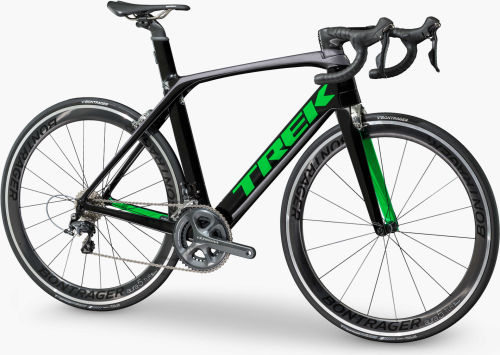

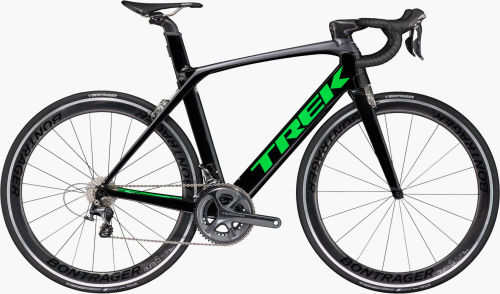

Trek Madone Madone 9.2
Serie: Madone - Year: 2017
Where to buy it
Specifications
Drivetrain
| Crank | Shimano Ultegra, 50/34 (compact) |
|---|---|
| Derailleurs | Front: Shimano Ultegra, braze-on - Rear: Shimano Ultegra |
| Shifters | Shimano Ultegra, 11-speed |
| Cassette | Shimano Ultegra, 11-28, 11-speed |
Frameset
| Fork | Madone KVF full carbon, carbon E2 tapered steerer, carbon dropouts, integrated brake and stem |
|---|---|

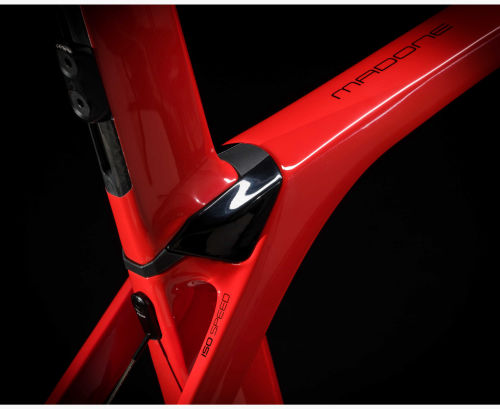

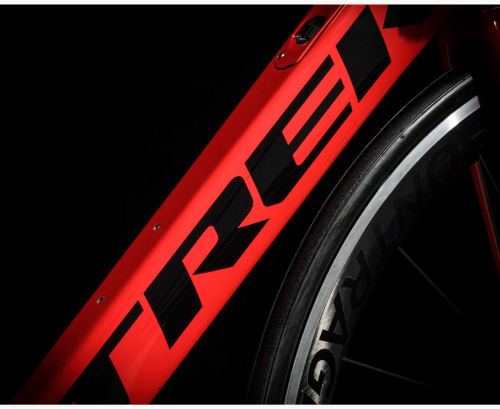

| Frame | 600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Madone IsoSpeed, Micro-adjust seatmast, E2 tapered head tube, BB90, invisible cable routing, control centre, precision water bottle placement, Aero 3S chain keeper, DuoTrap S compatible |
| Headset | Madone integrated, stainless cartridge bearings, sealed, 1-3/8" top, 1.5" bottom |

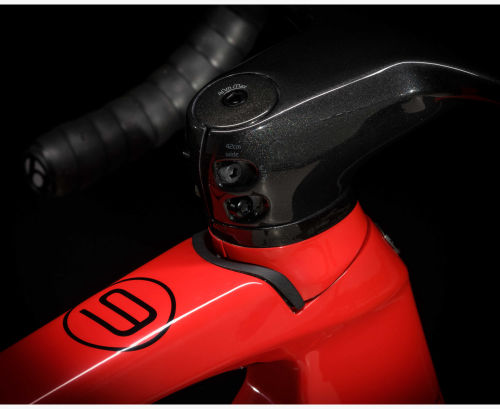

| Madone XXX Integrated bar/stem, OCLV Carbon, 7 degree, aero top cap pocket, w/computer and light mounts |
Wheels
| Tyres | Bontrager R3 Hard-Case Lite, 120tpi, aramid bead, 700x25c |
|---|---|
| Wheels | Bontrager Aura Tubeless Ready |
Brakes

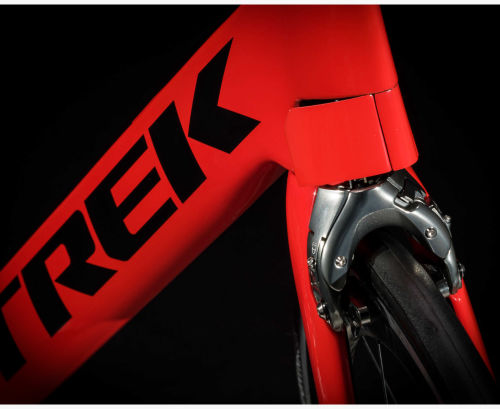

| Brakes | Madone aero, integrated |
|---|
Components

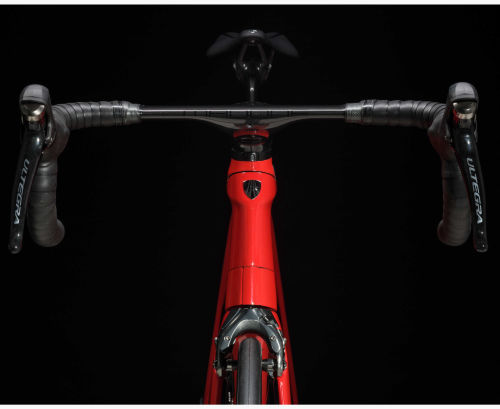

| Handlebar | Madone Integrated Bar/Stem, KVF Profile, invisible cable routing, OCLV Carbon, VR-CF |
|---|---|
| Saddle | Bontrager Montrose Elite, titanium rails |
| Seatpost | Madone Micro-adjust carbon seatmast cap, 25mm offset |
| Stem | Madone XXX Integrated bar/stem, OCLV Carbon, 7 degree, aero top cap pocket, w/computer and light mounts |
geometry
| Frame size number | Actual frame size | Wheel size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack | Saddle rail height minimum | Saddle rail height maximum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 cm | 50 cm | 700c | 47.6 | 74.6° | 13.0 | 72.1° | 52.1 | 7.2 | 41.0 | 4.5 | 6.1 | 97.4 | 70.7 | 37.4 | 54.0 | 58.5 | 67.5 |
| 52 cm | 52 cm | 700c | 49.3 | 74.2° | 14.0 | 72.8° | 53.2 | 7.2 | 41.0 | 4.5 | 5.7 | 97.7 | 72.9 | 37.9 | 55.2 | 61.5 | 70.5 |
| 54 cm | 54 cm | 700c | 50.6 | 73.7° | 15.5 | 73.0° | 54.3 | 7.0 | 41.0 | 4.5 | 5.6 | 98.1 | 74.2 | 38.1 | 56.0 | 64.0 | 73.0 |
| 56 cm | 56 cm | 700c | 53.3 | 73.3° | 17.0 | 73.5° | 56.0 | 7.0 | 41.0 | 4.0 | 5.8 | 98.3 | 76.7 | 38.7 | 58.2 | 67.0 | 76.0 |
| 58 cm | 58 cm | 700c | 55.3 | 73.0° | 19.0 | 73.8° | 57.3 | 6.8 | 41.1 | 4.0 | 5.6 | 99.2 | 78.6 | 39.1 | 60.1 | 69.0 | 78.0 |
| 60 cm | 60 cm | 700c | 57.3 | 72.8° | 21.0 | 73.9° | 58.6 | 6.8 | 41.1 | 4.0 | 5.6 | 100.1 | 80.4 | 39.5 | 62.0 | 71.0 | 80.0 |
| 62 cm | 62 cm | 700c | 59.3 | 72.5° | 23.0 | 73.9° | 59.8 | 6.8 | 41.2 | 4.0 | 5.5 | 101.0 | 82.2 | 39.8 | 63.9 | 73.0 | 82.0 |
