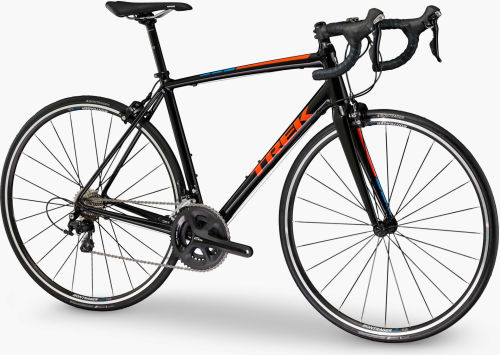

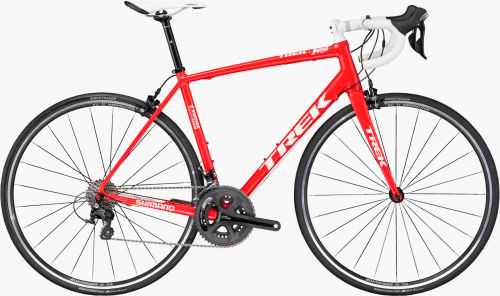

Trek Émonda ALR Émonda ALR 5

Serie: Émonda ALR - Year: 2017
Trek

Where to buy it

Specifications

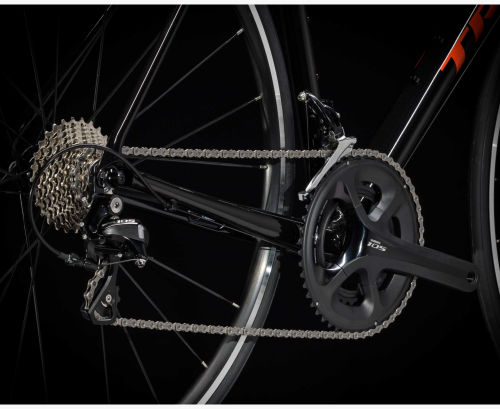

Drivetrain

ChainShimano 105
CrankShimano 105, 50/34 (compact)
DerailleursFront: Shimano 105, braze-on - Rear: Shimano 105
ShiftersShimano 105, 11-speed
CassetteShimano 105, 11-28, 11-speed

Frameset

ForkÉmonda full carbon, carbon E2 tapered steerer

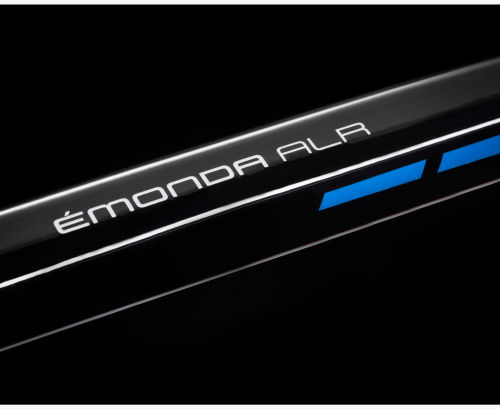

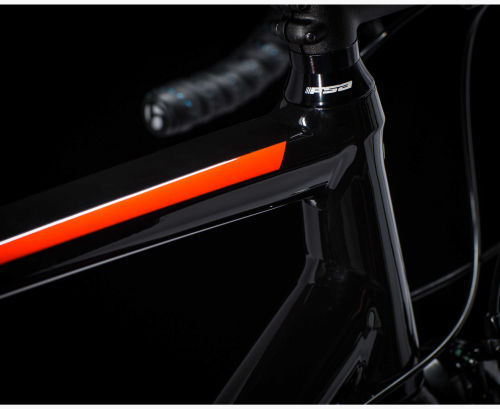

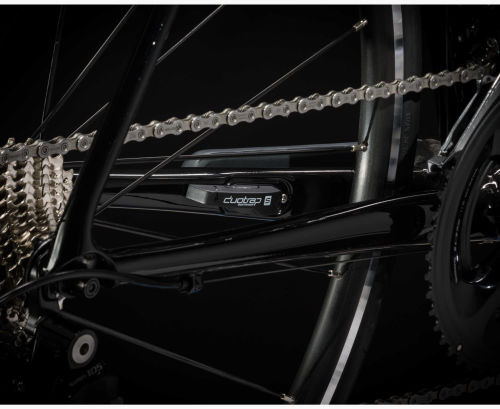

FrameUltralight 300 Series Alpha Aluminium, Invisible Weld Technology, DuoTrap S compatible, E2 tapered head tube, BB86.5
HeadsetIntegrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
Bontrager Elite, 31.8mm, 7 degree, w/computer and light mounts

Wheels

HubFront: Alloy - Rear: Alloy
RimsBontrager Tubeless Ready
TyresBontrager R1 Hard-Case Lite, 700x25c
WheelsAlloy hubs; Bontrager Tubeless Ready rims

Brakes

BrakesShimano 105

Components

HandlebarBontrager Race VR-C, 31.8mm
SaddleBontrager Montrose Comp
SeatpostBontrager alloy, 2-bolt head, 27.2mm, 8mm offset
StemBontrager Elite, 31.8mm, 7 degree, w/computer and light mounts

geometry

Frame size number Actual frame size Wheel size A Seat tube B Seat tube angle C Head tube length D Head angle E Effective top tube G Bottom bracket drop H Chainstay length I Offset J Trail K Wheelbase L Standover M Frame reach N Frame stack
50 cm 50 cm 700c 45.6 74.6° 13.0 72.1° 52.1 7.2 41.0 4.5 6.1 97.4 70.7 37.4 53.5
52 cm 52 cm 700c 47.3 74.2° 14.0 72.8° 53.4 7.2 41.0 4.5 5.7 97.7 72.9 37.9 54.7
54 cm 54 cm 700c 48.6 73.7° 15.5 73.0° 54.3 7.0 41.0 4.5 5.6 98.1 74.2 38.1 55.5
56 cm 56 cm 700c 51.3 73.3° 17.0 73.5° 56.0 7.0 41.0 4.0 5.8 98.3 76.7 38.7 57.7
58 cm 58 cm 700c 53.3 73.0° 19.0 73.8° 57.3 6.8 41.1 4.0 5.6 99.2 78.6 39.1 59.6
60 cm 60 cm 700c 55.3 72.8° 21.0 73.9° 58.6 6.8 41.1 4.0 5.6 100.1 80.4 39.5 61.5
62 cm 62 cm 700c 57.3 72.5° 23.0 73.9° 59.8 6.8 41.2 4.0 5.5 101.0 82.2 39.8 63.4
64 cm 64 cm 700c 59.3 72.3° 25.0 74.0° 61.0 6.8 41.3 4.0 5.5 101.8 84.1 40.1 65.4
