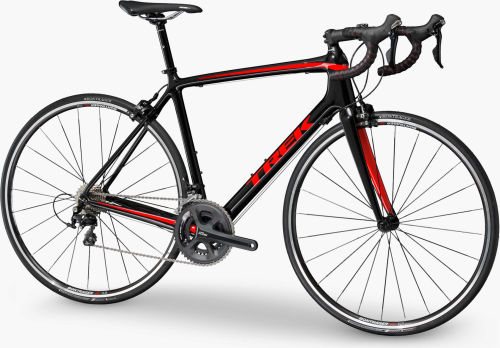

Trek Émonda Émonda S 5
Serie: Émonda - Year: 2017
Where to buy it
Specifications

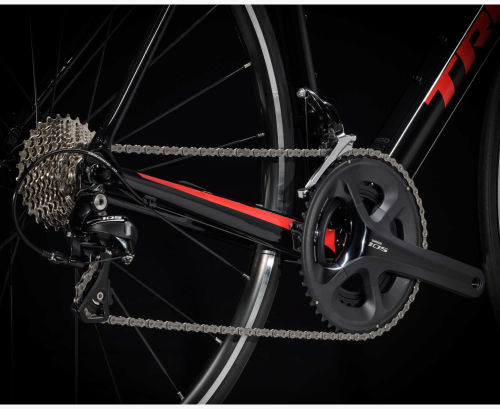

Drivetrain
| Chain | Shimano HG60 |
|---|---|
| Crank | Shimano 105, 50/34 (compact) |
| Derailleurs | Front: Shimano 105 - Rear: Shimano 105 |
| Shifters | Shimano 105, 11-speed |
| Cassette | Shimano 105, 11-28, 11-speed |
Frameset
| Fork | Émonda carbon, E2 tapered steerer |
|---|---|

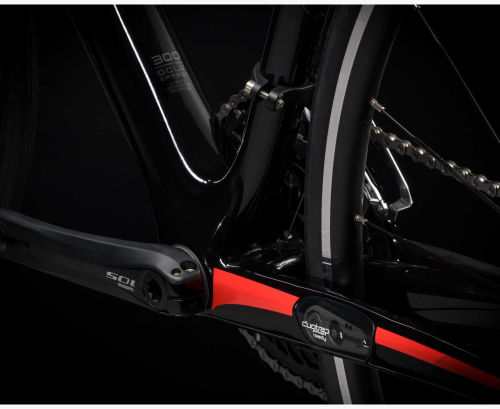

| Frame | Ultralight 300 Series OCLV Carbon, ride-tuned performance tube optimization, E2 tapered head tube, BB86.5, DuoTrap compatible |
| Headset | Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom |
| Bontrager Elite, 31.8mm, 7 degree, w/computer and light mounts |
Wheels
| Hub | Front: Alloy - Rear: Alloy |
|---|---|
| Rims | Bontrager Tubeless Ready |
| Tyres | Bontrager R1 Hard-Case Lite, 700x25c |
| Wheels | Alloy hubs; Bontrager Tubeless Ready rims |
Brakes
| Brakes | Shimano 105 |
|---|
Components
| Handlebar | Bontrager Race VR-C, 31.8mm |
|---|---|
| Saddle | Bontrager Montrose Comp |
| Seatpost | Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset |
| Stem | Bontrager Elite, 31.8mm, 7 degree, w/computer and light mounts |
geometry
| Frame size number | Actual frame size | Wheel size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack | Saddle rail height minimum | Saddle rail height maximum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 cm | 50 cm | 700c | 47.6 | 74.6° | 13.0 | 72.1° | 52.1 | 7.2 | 41.0 | 4.5 | 6.1 | 97.4 | 70.7 | 37.4 | 53.5 | 58.5 | 68.0 |
| 52 cm | 52 cm | 700c | 49.3 | 74.2° | 14.0 | 72.8° | 53.4 | 7.2 | 41.0 | 4.5 | 5.7 | 97.7 | 72.9 | 37.9 | 54.7 | 61.5 | 71.0 |
| 54 cm | 54 cm | 700c | 50.6 | 73.7° | 15.5 | 73.0° | 54.3 | 7.0 | 41.0 | 4.5 | 5.6 | 98.1 | 74.2 | 38.1 | 55.5 | 64.0 | 73.5 |
| 56 cm | 56 cm | 700c | 53.3 | 73.3° | 17.0 | 73.5° | 56.0 | 7.0 | 41.0 | 4.0 | 5.8 | 98.3 | 76.7 | 38.7 | 57.7 | 67.0 | 76.5 |
| 58 cm | 58 cm | 700c | 55.3 | 73.0° | 19.0 | 73.8° | 57.3 | 6.8 | 41.1 | 4.0 | 5.6 | 99.2 | 78.6 | 39.1 | 59.6 | 69.0 | 78.5 |
| 60 cm | 60 cm | 700c | 57.3 | 72.8° | 21.0 | 73.9° | 58.6 | 6.8 | 41.1 | 4.0 | 5.6 | 100.1 | 80.4 | 39.5 | 61.5 | 71.0 | 80.5 |
| 62 cm | 62 cm | 700c | 59.3 | 72.5° | 23.0 | 73.9° | 59.8 | 6.8 | 41.2 | 4.0 | 5.5 | 101.0 | 82.2 | 39.8 | 63.4 | 73.0 | 82.5 |
