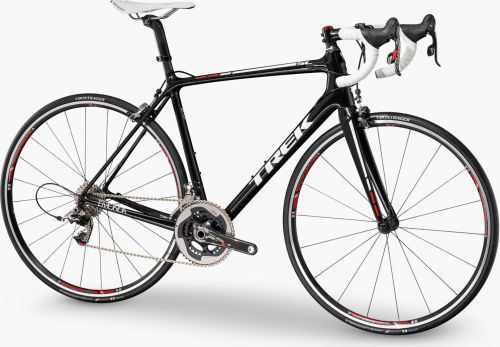

Trek Émonda Émonda SL 8 RED
Serie: Émonda - Year: 2016
Where to buy it
Specifications
Drivetrain
| Chain | SRAM RED 22 |
|---|---|
| Crank | SRAM RED, 50/34 (compact) |
| Derailleurs | Front: SRAM RED 22, braze-on - Rear: SRAM RED 22 |
| Shifters | SRAM RED, 11-speed |
| Cassette | SRAM X-Glide 1190, 11-28, 11-speed |
Frameset
| Fork | Émonda full carbon, carbon E2 steerer |
|---|---|
| Frame | Ultralight 500 Series OCLV Carbon, ride-tuned performance tube optimisation, E2 tapered head tube, BB90, internal cable routing, DuoTrap S compatible, Ride Tuned seatmast |
| Headset | FSA Integrated, sealed cartridge bearings, 1-1/8" top, 1.5" bottom |
| Bontrager Race X Lite, 31.8mm, 7-degree |
Wheels
| Tyres | Bontrager R3 Hard-Case Lite, 120tpi, aramid bead, 700x23c |
|---|---|
| Wheels | Bontrager Race Tubeless Ready |
Brakes
| Brakes | SRAM RED |
|---|
Components
| Handlebar | Bontrager Race Lite, VR, 31.8mm |
|---|---|
| Saddle | Bontrager Paradigm RL, hollow titanium rails |
| Seatpost | Bontrager Ride Tuned carbon seatmast cap, 20mm offset |
| Stem | Bontrager Race X Lite, 31.8mm, 7-degree |
geometry
| Frame size number | Actual frame size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack | Saddle rail height minimum | Saddle rail height maximum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 64 cm | 64 cm | 61.3 | 72.3 ° | 25.0 | 74.0 ° | 61.0 | 6.8 | 41.3 | 4.0 | 5.5 | 101.8 | 84.1 | 40.1 | 65.4 | 76.0 | 85.5 |
