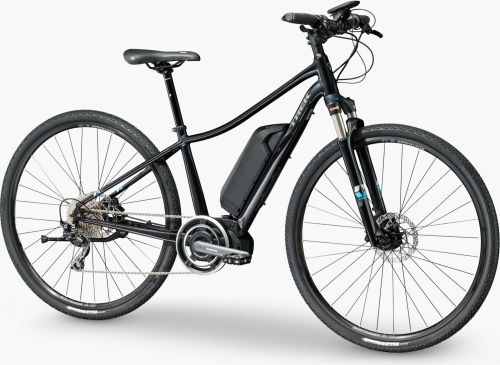

Trek Neko Women's Neko+
Serie: Neko Women's - Year: 2017
Where to buy it
Specifications
Drivetrain
| Crank | SHIMANO STEPS |
|---|---|
| Derailleurs | Rear: Shimano Deore, Shadow Plus |
| Shifters | Shimano Deore, 10-speed |
| Cassette | Shimano HG50, 11-36, 10-speed |
Frameset
| Frame | Alpha Gold Aluminium, custom designed for SHIMANO STEPS system, internal cable routing |
|---|---|
| Headset | 1-1/8" threadless, sealed cartridge bearings |
| Suspensions | Front: SR Suntour NRX, ATB rated, coil spring, preload, hydraulic lockout, 63mm travel |
| Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
Wheels
| Hub | Front: Formula DC20 alloy - Rear: Formula DC22 alloy |
|---|---|
| Rims | Bontrager Tubeless Ready |
| Tyres | Bontrager LT2, Hard-Case Lite, 700x38c |
| Wheels | Formula DC20 alloy front hub; Formula DC22 alloy rear hub; Bontrager Tubeless Ready rims |
Brakes
| Brakes | Shimano M315 hydraulic disc |
|---|
Components
| Handlebar | Bontrager alloy, 25.4mm, 15mm rise |
|---|---|
| Saddle | Bontrager H1 WSD |
| Seatpost | Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset |
| Stem | Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
E-System
| Battery | SHIMANO STEPS downtube |
|---|---|
| Controller | SHIMANO STEPS E6010 |
geometry
| Frame size number | Actual frame size | Wheel size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 in | 14 in | 700c | 35.5 | 74.5° | 11.4 | 70.0° | 55.0 | 28.8 | 6.6 | 46.5 | 3.8 | 8.7 | 107.8 | 67.8 | 38.4 | 59.8 |
| 16 in | 16 in | 700c | 40.6 | 74.0° | 11.4 | 70.5° | 56.0 | 28.8 | 6.6 | 46.5 | 3.8 | 8.5 | 107.8 | 70.3 | 38.8 | 60.0 |
| 18 in | 18 in | 700c | 45.7 | 73.5° | 12.4 | 71.0° | 57.5 | 28.8 | 6.6 | 46.5 | 3.8 | 8.2 | 108.2 | 73.0 | 39.4 | 61.2 |
