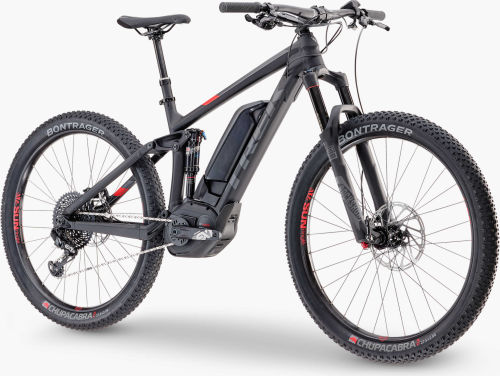

Trek Powerfly FS Powerfly 9 FS Plus
Serie: Powerfly FS - Year: 2017
Where to buy it
Specifications
Drivetrain
| Crank | SRAM EX1, 15T w/chainguard |
|---|---|
| Derailleurs | Rear: SRAM EX1, Roller Bearing Clutch |
| Shifters | SRAM EX1, 8-speed |
| Cassette | SRAM XG-899 11-48, 8-speed |
Frameset
| Frame | Alpha Platinum Aluminium, ABP, Boost148, EVO link, E2 tapered head tube, Mino Link, Knock Block steerer stop, internal derailleur and dropper post routing, 130mm travel |
|---|---|
| Headset | FSA Knock Block IS-2, E2, sealed alloy cartridge |
| Suspensions | Front: RockShox Pike RC, Solo Air, Charger Damper, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset, 130mm travel - Rear: RockShox Deluxe RT3, tuned by Trek Suspension Lab, 205x50mm |
| Bontrager Line, Knock Block, 35mm, 0 degree |
Wheels
| Hub | Front: Bontrager sealed bearing, alloy axle, Boost110 - Rear: Bontrager sealed bearing alloy axle, Boost148 |
|---|---|
| Rims | SUNringlé Duroc 40 SL 32-hole |
| Tyres | Bontrager Chupacabra, Tubeless Ready, Inner Strength sidewalls, aramid bead, 27.5x2.80" |
| Wheels | Bontrager sealed bearing, alloy axle hubs, Boost110 front, Boost148 rear; SUNringlé Duroc 40 SL 32-hole rims |
Brakes
| Brakes | SRAM Guide RS hydraulic disc, 200mm front/180mm rear rotors |
|---|
Components
| Handlebar | Bontrager Line, 35mm, 15mm rise, 750mm width |
|---|---|
| Saddle | Bontrager Evoke 2, chromoly rails |
| Seatpost | Bontrager Drop Line 125, under-bar remote lever, 2-bolt head, 31.6mm, zero offset, internal routing |
| Stem | Bontrager Line, Knock Block, 35mm, 0 degree |
E-System
| Battery | Bosch Powerpack Performance 500 downtube |
|---|---|
| Controller | Bosch Purion Performance |
| Motor | Bosch Performance CX |
geometry
| Frame size number | Actual frame size | Geometry position | Wheel size | A Seat tube | B Seat tube angle | Effective seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack | Frame rise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 in | 15.5 in | Low | 27.5" | 36.8 | 71.5° | 73.5° | 10.0 | 66.9° | 57.0 | 33.2 | 2.4 | 47.4 | 5.1 | 8.8 | 117.7 | 76.0 | 40.5 | 59.4 | 59.4 |
| 17.5 in | 17.5 in | Low | 27.5" | 41.9 | 71.5° | 73.5° | 10.0 | 66.9° | 60.0 | 33.2 | 2.4 | 47.4 | 5.1 | 8.9 | 120.7 | 74.0 | 43.5 | 59.3 | 59.3 |
| 18.5 in | 18.5 in | Low | 27.5" | 44.5 | 71.5° | 73.5° | 10.5 | 66.9° | 62.0 | 33.2 | 2.4 | 47.4 | 5.1 | 8.9 | 122.8 | 73.5 | 45.3 | 59.8 | 59.8 |
| 19.5 in | 19.5 in | Low | 27.5" | 47.0 | 71.5° | 73.5° | 11.0 | 66.9° | 63.4 | 33.2 | 2.4 | 47.4 | 5.1 | 8.9 | 124.3 | 73.0 | 46.6 | 60.2 | 60.2 |
| 21.5 in | 21.5 in | Low | 27.5" | 52.1 | 71.5° | 73.5° | 12.5 | 66.9° | 66.2 | 33.2 | 2.4 | 47.4 | 5.1 | 8.9 | 127.3 | 74.0 | 49.0 | 61.6 | 61.6 |
