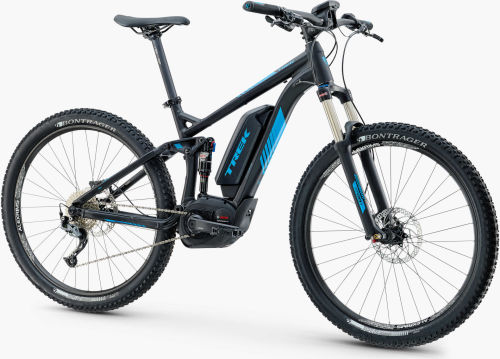

Trek Powerfly FS Powerfly+ FS 5
Serie: Powerfly FS - Year: 2016
Where to buy it
Specifications
Drivetrain
| Chain | KMC X9 |
|---|---|
| Crank | RIDE+ aluminium 15T w/chain guard |
| Derailleurs | Rear: Shimano Alivio M4000 |
| Shifters | Shimano Altus M370, 9-speed |
| Cassette | Shimano HG300, 12-36, 9-speed |
Frameset
| Frame | Alpha Platinum Aluminium, ABP Convert, E2 tapered head tube, magnesium EVO link, internal derailleur & e-system routing, Motor Armour, 120mm travel |
|---|---|
| Headset | FSA IS-2 alloy, integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Suspensions | Front: SR Suntour XCR, air spring, hydraulic lockout, 120mm travel - Rear: RockShox Monarch RL, rebound, lockout, tuned by Trek Suspension Lab, 7.25x2.0" |
| Bontrager Elite, 31.8mm, 7-degree, Blendr compatible |
Wheels
| Hub | Front: Shimano Deore CenterLock, 15mm - Rear: Shimano Deore CenterLock, 142x12mm |
|---|---|
| Rims | Alex MD23 32-hole |
| Tyres | Bontrager XR3 Expert, aramid bead, 27.5x2.35" |
| Wheels | Shimano Deore hubs, Alex MD23 rims |
Brakes
| Brakes | Shimano M355 hydraulic disc |
|---|
Components
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise |
|---|---|
| Saddle | Bontrager Evoke 1.5 |
| Seatpost | Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset |
| Stem | Bontrager Elite, 31.8mm, 7-degree, Blendr compatible |
E-System
| Battery | Bosch PowerPack 400Wh downtube |
|---|---|
| Controller | Bosch Intuvia Active w/remote |
| Motor | Bosch Performance Line CX 25km/h |
geometry
| Frame size number | Actual frame size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 in | 15.5 in | 36.8 | 71.0 ° | 13.0 | 68.0 ° | 55.5 | 33.3 | 1.7 | 47.0 | 4.4 | 9.4 | 110.1 | 73.0 | 39.3 | 59.5 |
| 17.5 in | 17.5 in | 41.9 | 71.0 ° | 13.2 | 68.0 ° | 58.0 | 33.3 | 1.7 | 47.0 | 4.4 | 9.4 | 112.6 | 73.0 | 42.3 | 59.5 |
