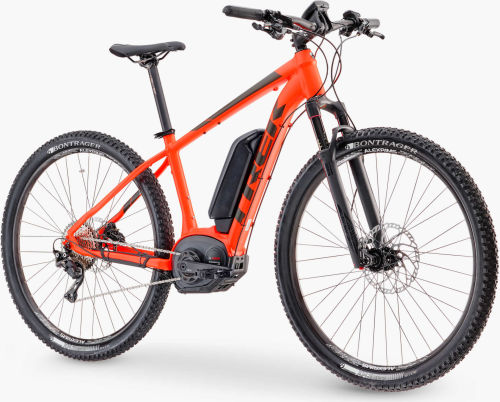

Trek Powerfly Powerfly 7
Serie: Powerfly - Year: 2017
Where to buy it
Specifications
Drivetrain
| Crank | RIDE+ aluminium 15T w/chainguard |
|---|---|
| Derailleurs | Rear: Shimano Deore XT, Shadow Plus |
| Shifters | Shimano Deore XT, 11-speed |
| Cassette | Shimano Deore M8000 XT, 11-42, 11-speed |
Frameset
| Frame | Alpha Platinum Aluminium, E2 tapered head tube, internal derailleur routing, Balanced Geometry |
|---|---|
| Headset | Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom |
| Suspensions | Front: RockShox Reba RL, Solo Air, Motion Control damper, remote lockout, E2 tapered steerer, 15mm Maxle Lite, G2 Geometry w/51mm offset, 100mm travel |
| Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
Wheels
| Hub | Front: Bontrager sealed cartridge bearing, 15mm alloy axle - Rear: Bontrager sealed cartridge bearing alloy axle |
|---|---|
| Rims | Bontrager XR850 36-hole 28mm wide double-walled |
| Tyres | Bontrager XR3 Expert, Tubeless Ready, Inner Strength sidewalls, aramid bead, 29x2.30" |
| Wheels | Bontrager sealed cartridge bearing alloy axle hubs, 15mm front; Bontrager XR850 36-hole 28mm wide double-walled rims |
Brakes
| Brakes | Shimano M615 hydraulic disc, 203mm front/180mm rear rotors |
|---|
Components
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise |
|---|---|
| Saddle | Bontrager Evoke 2, chromoly rails |
| Seatpost | Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset |
| Stem | Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
E-System
| Battery | Bosch Powerpack Performance 500 downtube |
|---|---|
| Controller | Bosch Intuvia Performance |
| Motor | Bosch Performance CX |
geometry
| Frame size number | Actual frame size | Wheel size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 in | 15.5 in | 29" | 40.0 | 73.0° | 14.0 | 69.0° | 56.1 | 33.2 | 5.3 | 48.5 | 5.1 | 112.0 | 78.8 | 36.5 | 63.8 |
| 17.5 in | 16.5 in | 29" | 42.5 | 72.5° | 14.0 | 69.0° | 58.3 | 33.2 | 5.3 | 48.5 | 5.1 | 113.7 | 79.0 | 38.2 | 63.8 |
| 19 in | 18 in | 29" | 47.0 | 72.5° | 16.0 | 69.0° | 60.7 | 33.2 | 5.3 | 48.5 | 5.1 | 116.2 | 81.1 | 40.0 | 65.6 |
| 21 in | 20 in | 29" | 51.5 | 72.5° | 16.0 | 69.0° | 63.2 | 33.2 | 5.3 | 48.5 | 5.1 | 118.7 | 84.3 | 42.5 | 65.6 |
