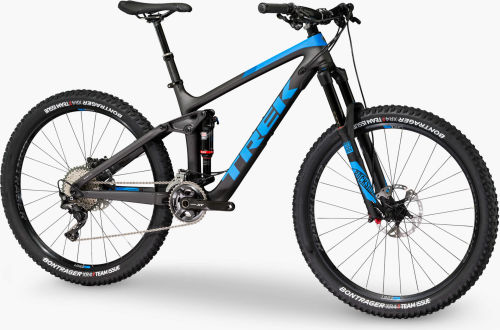

Trek Remedy Remedy 9.8

Serie: Remedy - Year: 2017
Trek

Where to buy it

Specifications

Drivetrain

ChainShimano Deore XT
CrankShimano Deore XT, 36/26
DerailleursFront: Shimano Deore XT - Rear: Shimano Deore XT, Shadow Plus
ShiftersShimano Deore XT M8000, 11-speed
CassetteShimano Deore XT, 11-42, 11-speed

Frameset

FrameOCLV Mountain Carbon main frame and seatstay, alloy chainstay, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, Carbon Armor, PF92, ISCG 05, 150mm travel
HeadsetKnock Block integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
SuspensionsFront: RockShox Pike RC, Solo Air, Charger Damper, E2 tapered steerer, Boost110, 150mm travel - Rear: RockShox Deluxe RT3, RE:aktiv 3-position damper, tuned by Trek Suspension Lab, 230x57.5mm
Bontrager Line Pro, Knock Block, 35mm, 0 degree

Wheels

TyresBontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, 120tpi, aramid bead, 27.5x2.40"
WheelsBontrager Line Comp 30, Tubeless Ready, Boost110 front, Boost148 rear

Brakes

BrakesShimano Deore XT hydraulic disc

Components

HandlebarBontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780 width
SaddleBontrager Evoke 3, titanium rails
SeatpostBontrager Drop Line 125, universal remote lever, 2-bolt head, 31.6mm, zero offset, internal routing
StemBontrager Line Pro, Knock Block, 35mm, 0 degree

geometry

Frame size number Actual frame size Geometry position Wheel size A Seat tube B Seat tube angle Effective seat tube angle C Head tube length D Head angle E Effective top tube F Bottom bracket height G Bottom bracket drop H Chainstay length I Offset J Trail K Wheelbase L Standover M Frame reach N Frame stack Frame rise
15.5 in 15.5 in High 27.5" 39.4 68.2° 74.6° 10.0 66.6° 54.7 34.3 1.3 43.3 4.3 9.8 113.1 75.8 40.3 58.4 60.4
17.5 in 16.5 in High 27.5" 41.9 68.1° 74.5° 10.0 66.5° 57.7 34.3 1.3 43.3 4.3 9.9 116.1 75.2 43.3 58.4 60.3
18.5 in 17.5 in High 27.5" 44.5 68.1° 74.5° 10.5 66.5° 59.6 34.3 1.3 43.3 4.3 9.9 118.0 75.0 44.9 58.8 60.3
19.5 in 18.5 in High 27.5" 47.0 68.1° 74.5° 11.0 66.5° 61.1 34.3 1.3 43.3 4.3 9.9 119.6 74.6 46.3 59.3 60.3
21.5 in 20.5 in High 27.5" 52.1 68.1° 74.5° 12.5 66.5° 64.1 34.3 1.3 43.3 4.3 9.9 122.6 75.2 48.7 60.7 61.2
