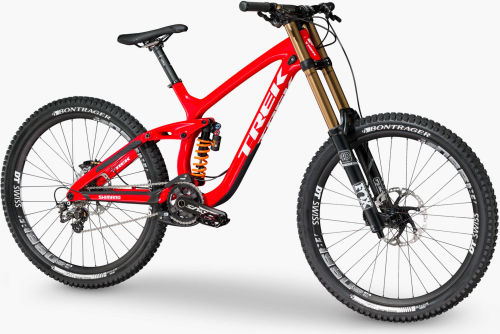

Trek Session Session 9.9
Serie: Session - Year: 2016
Where to buy it
Specifications
Drivetrain
| Chain | Shimano XTR |
|---|---|
| Crank | Shimano Saint, 36T |
| Derailleurs | Rear: Shimano Saint, Shadow Plus |
| Shifters | Shimano Saint, 10-speed |
| Cassette | Shimano Ultegra, 11-25, 10-speed |
Frameset
| Frame | OCLV Mountain Carbon w/InTension main frame, OCLV stays, Carbon Armor, ABP Convert DH, Full Floater, E2 tapered head tube, integrated frame protection, internal control routing, HexMC carbon EVO Link, Mino Link, MicroTruss, ISCG mount, 210mm travel |
|---|---|
| Headset | Cane Creek IS-3, E2, alloy cartridge |
| Suspensions | Front: Fox Factory 40 FIT RC2 w/air spring, Kashima Coat, hi/lo-speed compression, 20mm thru axle, 203mm travel - Rear: Fox Factory DHX 2 SLS, adjustable spring preload, rebound, low-speed compression, (S 400 lb; M 450 lb; L 450 lb; XL 500 lb spring), tuned by Trek Suspension Lab, 8.75x2.75" |
| Bontrager Direct Mount, 31.8mm |
Wheels
| Tyres | Bontrager G4 Team Issue, 27.5x2.35" |
|---|---|
| Wheels | DT Swiss FR1950 Gravity Classic, 20mm front, 157x12 rear |
Brakes
| Brakes | Shimano Saint hydraulic disc |
|---|
Components
| Handlebar | Bontrager Rhythm Pro, OCLV Carbon, 31.8mm, 15mm rise |
|---|---|
| Saddle | Bontrager Evoke 3, hollow titanium rails |
| Seatpost | Bontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset |
| Stem | Bontrager Direct Mount, 31.8mm |
geometry
| Frame size letter | Actual frame size | Geometry position | Wheel size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | M | Low | 27.5" | 42.6 | 57.0° | 11.5 | 63.6° | 59.4 | 35.6 | -0.1 | 44.5 | 5.2 | 11.8 | 120.3 | 79 | 40.2 | 60.7 |
