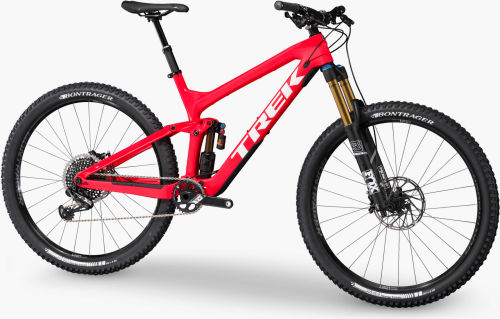

Trek Slash Slash 9.9 29 Race Shop Limited

Serie: Slash - Year: 2017
Trek

Where to buy it

Specifications

Drivetrain

CrankSRAM X01 Eagle, 32T Direct Mount X-Sync
DerailleursRear: SRAM X01 Eagle, Roller Bearing Clutch
ShiftersSRAM X01 Eagle, 12-speed
CassetteSRAM XG-1295, 10-50, 12-speed

Frameset

FrameOCLV Mountain Carbon main frame and 1x-specific stays, ABP, Boost148, Knock Block steerer stop, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, Carbon Armor, PF92, ISCG 05, G2 Geometry, 150mm travel
HeadsetFSA Knock Block IS-2, E2, sealed alloy cartridge
SuspensionsFront: Fox Factory 36 Talas, high/low speed compression adjust, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset, 130/160mm travel - Rear: Fox Factory Float X2, 2-position damper, high/low speed rebound adjust, high/low speed compression adjust, tuned by Trek Suspension Lab, 230x57.5mm
Bontrager Line Pro, Knock Block, 35mm, 0 degree

Wheels

TyresBontrager SE4 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 29x2.40"
WheelsBontrager Line Elite 30, Tubeless Ready, 54T Rapid Drive, Boost110 front, Boost148 rear

Brakes

BrakesSRAM Guide Ultimate carbon hydraulic disc

Components

HandlebarBontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
SaddleBontrager Evoke 3, titanium rails
SeatpostBontrager Drop Line 125, under-bar remote lever, 2-bolt head, 31.6mm, zero offset, internal routing
StemBontrager Line Pro, Knock Block, 35mm, 0 degree

geometry

Frame size number Actual frame size Geometry position Wheel size A Seat tube B Seat tube angle Effective seat tube angle C Head tube length D Head angle E Effective top tube F Bottom bracket height G Bottom bracket drop H Chainstay length I Offset J Trail K Wheelbase L Standover M Frame reach N Frame stack Frame rise
15.5 in 15.5 in High 29" 39.4 64.8° 74.1° 10.0 65.6° 59.0 35.2 2.1 43.3 5.1 11.4 117.1 79.3 41.6 60.8 60.8
17.5 in 16.5 in High 29" 41.9 64.8° 74.1° 10.0 65.6° 60.5 35.2 2.1 43.3 5.1 11.4 118.6 78.4 43.1 60.8 60.8
19.5 in 18.5 in High 29" 46.8 64.8° 74.1° 11.0 65.6° 63.5 35.2 2.1 43.3 5.1 11.4 121.9 77.8 45.9 61.8 61.8
21.5 in 20.5 in High 29" 52.2 64.8° 74.1° 12.5 65.6° 66.1 35.2 2.1 43.3 5.1 11.4 124.7 77.6 48.1 63.1 63.1
