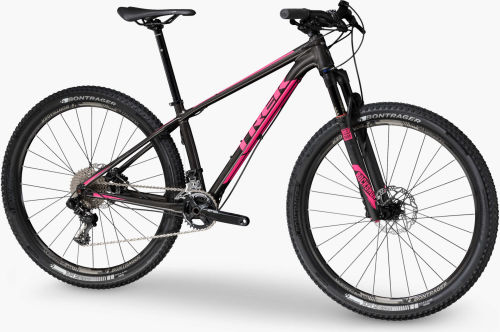

Trek Superfly Superfly 6 Women's
Serie: Superfly - Year: 2016
Where to buy it
Specifications
Drivetrain
| Chain | KMC X10 |
|---|---|
| Crank | SRAM GX 1000, 36/22 |
| Derailleurs | Front: SRAM GX - Rear: SRAM GX, Type 2 |
| Shifters | SRAM GX, 10-speed |
| Cassette | Shimano HG50, 11-36, 10-speed |
Frameset
| Frame | Alpha Platinum Aluminium, E2 tapered head tube, internal cable routing, PF89.5, balanced post mount, Closed Convert dropouts, G2 Geometry on 29ers |
|---|---|
| Headset | FSA IS-2, E2, sealed alloy cartridge |
| Suspensions | Front: RockShox Reba RL, Solo Air spring, Motion Control remote lockout, 15mm Maxle Lite, G2 Geometry w/51mm offset on 29ers, 100mm travel |
| Bontrager Elite, 31.8mm, 7-degree, Blendr compatible |
Wheels
| Hub | Front: Bontrager alloy sealed bearing, 15mm alloy axle, CenterLock - Rear: Bontrager sealed bearing, alloy axle, CenterLock |
|---|---|
| Rims | Bontrager Mustang Elite Tubeless Ready 28-hole |
| Tyres | Bontrager XR1 Expert, Tubeless Ready, aramid bead, 29x2.20" (Bontrager XR2 Expert, Tubeless Ready, aramid bead, 27.5x2.20") |
| Wheels | Bontrager alloy hubs, Bontrager Mustang Elite Tubeless Ready rims |
Brakes
| Brakes | Shimano M445 hydraulic disc |
|---|
Components
| Handlebar | Bontrager alloy, 31.8mm, 5mm rise |
|---|---|
| Saddle | Bontrager Ajna Comp WSD, hollow chromoly rails |
| Seatpost | Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset |
| Stem | Bontrager Elite, 31.8mm, 7-degree, Blendr compatible |
geometry
| Frame size number | Actual frame size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18.5 in | 17.5 in | 44.4 | 72.3 ° | 10.0 | 69.6 ° | 62.0 | 31.1 | 5.8 | 43.5 | 5.1 | 8.3 | 111.6 | 77.6 | 42.7 | 60.1 |
