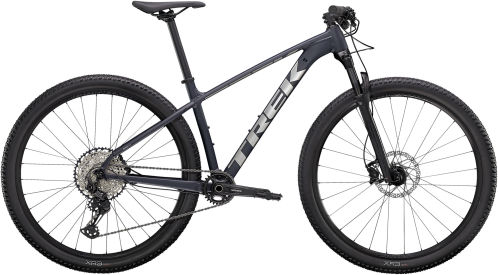

Trek X-Caliber 9
Serie: X-Caliber - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | Shimano SLX M7100, 12-speed |
|---|---|

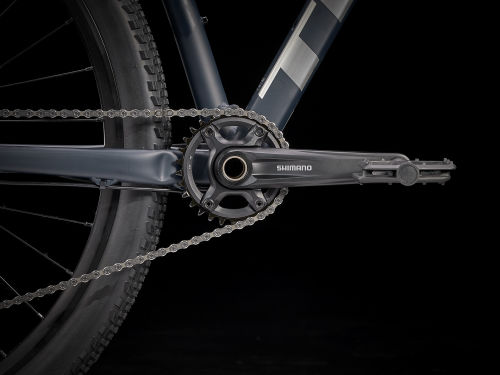

| Crank | Size: XS , S Shimano MT611, 30T steel ring, alloy spider, Boost, 170 mm length - Size: XS , S Shimano MT610, 30T steel ring, Boost (52mm chainline), 170mm - Size: M , ML , L , XL , XXL Shimano MT611, 30T steel ring, alloy spider, Boost, 175 mm length - Size: M , ML , L , XL , XXL Shimano MT610, 30T steel ring, Boost, 175 mm |

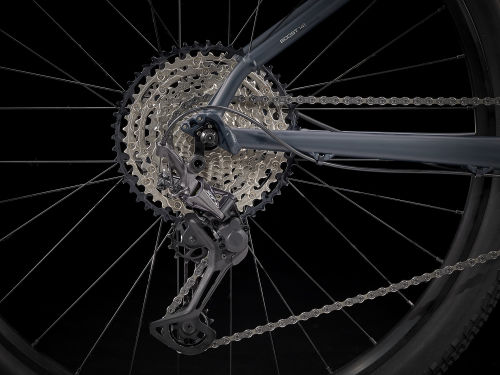

| Derailleurs | Rear: Shimano XT M8100, long cage, 51T max cog |

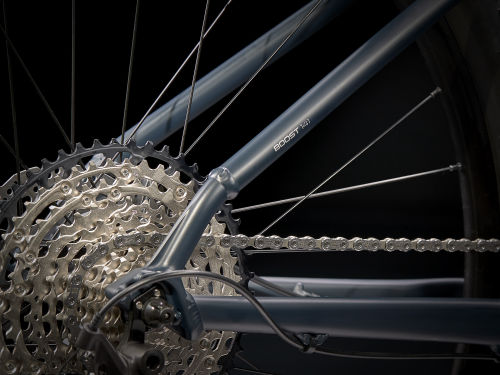

| Cassette | Shimano SLX M7100, 10-51, 12-speed |
Frameset

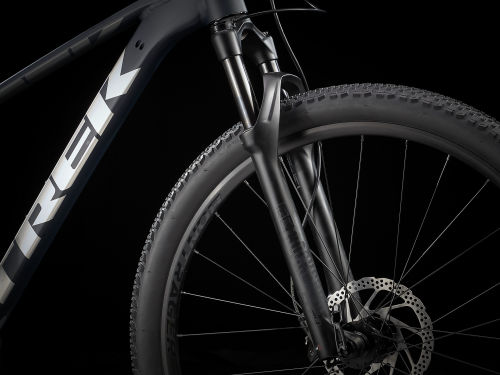

| Fork | Size: XS RockShox Judy Silver, Solo Air, TurnKey remote lockout, tapered steerer, Boost110, 15mm Maxle, 80mm travel - Size: S RockShox Judy Silver, Solo Air, TurnKey remote lockout, tapered steerer, Boost110, 15mm Maxle, 100mm travel - Size: M , ML , L , XL , XXL RockShox Judy Silver, Solo Air spring, TurnKey remote lockout, tapered steerer, Boost110, 15 mm Maxle Lite, 100 mm travel |
|---|---|

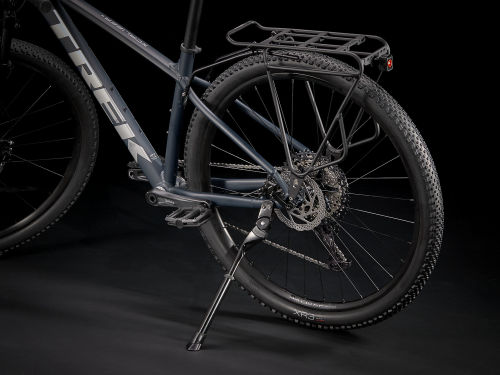

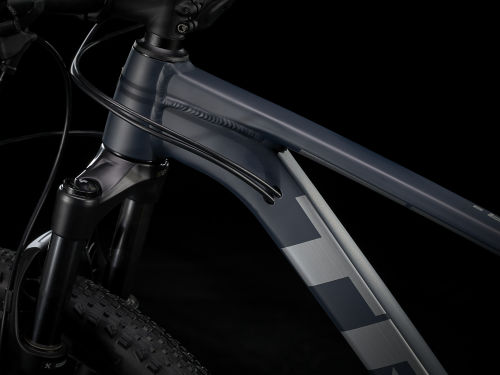

| Frame | Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR |
| Headset | Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom |
| Size: XS , S Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: M Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: ML , L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: XL , XXL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle - Rear: Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5 mm QR |
|---|---|
| Rims | Size: XS , S , M , ML , L , XL , XXL Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve - Size: XS , S , M , ML , L , XL , XXL Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23 mm width, Presta valve |
| Spokes | 15 g stainless |
| Tyres | Size: XS , S Bontrager XR3 Comp, wire bead, 30 tpi, 27.5x2.20'' - Size: M , ML , L , XL , XXL Bontrager XR3 Comp, wire bead, 30 tpi, 29x2.20" |
Brakes

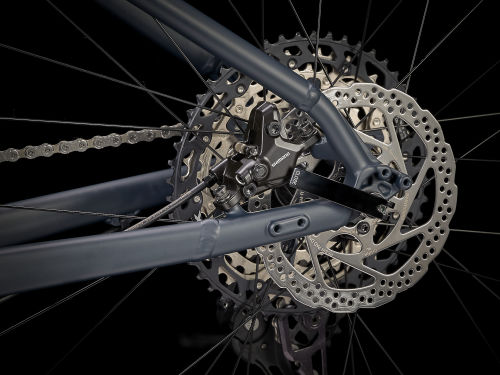

| Brakes | Size: XS , S , M , ML , L , XL , XXL Shimano hydraulic disc, MT4100 lever, MT410 calliper - Size: XS , S , M , ML , L , XL , XXL Shimano hydraulic disc, MT401 lever, MT400 caliper |
|---|
Components

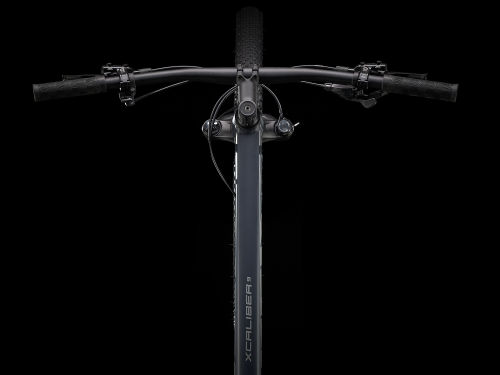

| Handlebar | Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width - Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width |
|---|---|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: XS , S Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length - Size: M Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length - Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |

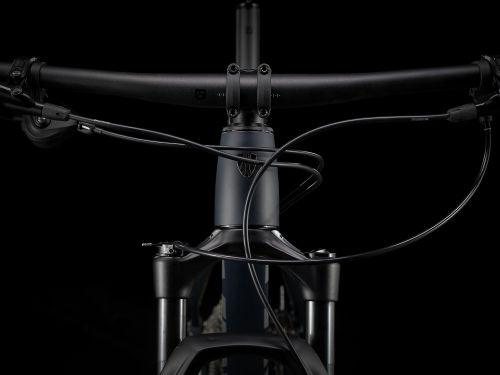

| Stem | Size: XS , S Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: M Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: ML , L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: XL , XXL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| Pedals | VP-536 nylon platform |
