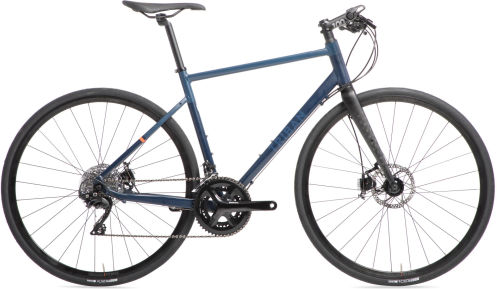

Triban RC 520 Flat Bar
Serie: RC 520 Flat Bar - Year: 2020
Where to buy it
Specifications
Drivetrain
| Crank | Microshift CS-H110 11S 11/32 cassette(11/12/13/14/15/17/19/21/24/28/32).Shimano RS 510 compact crankset 50/34.Crank length varies according to size of bike:XS, S: 170 mm.M: 172,5mm.L, XL: 175 mm. |
|---|
Frameset
| Fork | New Triban Evo fork with carbon blades and aluminium 1"1/8 Aheadset steerer tube. This fork combines comfort, low weight (680g), and precision.The carbon has been machined to provide good lateral rigidity and good filtering of frontal vibrations.Inserts on blades for mounting a front pannier rack. Maximum load on the fork: 9kg,Holes on the wheel axle for attaching a mudguardCompatible with tyres up to 36mm cross-section |
|---|---|
| Frame | New Triban Evo frame in 6061 T6 aluminium, comfort-oriented geometry with adapted slopingWeight: 1780 g in size M.Strong, versatile frame: can be fitted with a mudguard and pannier rackCompatible with tyres up to 36mm cross-section |
Wheels
| Tyres | Triban Resist+ tyres410 gSkinwall stiff bead1 mm nylon anti-puncture protectionDurable carcass: 55 TPI.Dimensions: 28c-622 / 700 x 28c for greater comfort.Max. pressure: 8 bar / 116 psi.These tyres are NOT Tubeless Ready |
|---|---|
| Wheels | Triban Tubeless Ready* Light wheels9mm Quick Release (QR) axleAluminium 6106T6ETRTO Dimension: 622 x 17C24 mm height for increased lateral rigidity.Crossed steel spokes for greater rigidity (28 front and 28 rear).Sealed cartridge bearings.Weight per pair (without cassette and QR): 2000 g* To switch to Tubeless, you'll need a pair of Tubeless Ready tyres and a conversion kit including 2 tubeless valves + 2 rim strips + bottle of anti-puncture liquid |
Brakes
| Brakes | TRP HY/RD disc brakes.Cable-operated hydraulic pistons, ensuring reliability and efficiency160mm disc at the front and rearAnti-compression Jagwire housing to ensure braking precision and efficiencySemi-metallic TRP pad (M515/M525 version) |
|---|
Components
| Handlebar | Ergonomic aluminium flat handlebars for a better grip, excellent comfort and ease of use.Handlebar width end to end:XS / S / M: 560 mm.L / XL: 600 mm.Reversible stem (+7° / -7°):XS / S: 80 mm.M: 100mm.L: 110 mm.XL: 120 mm. |
|---|---|

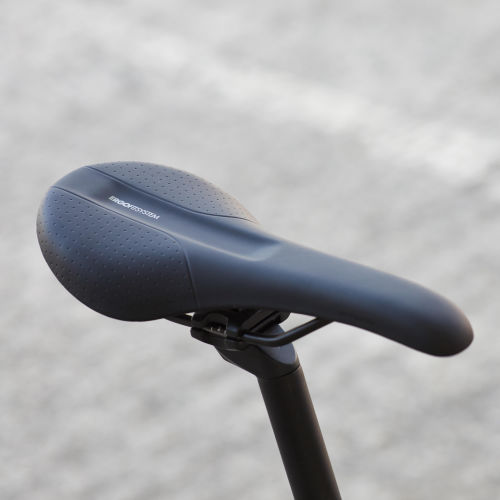

| Saddle | New Triban ErgoFit saddle.Hammock design for greater comfort.Aluminium Triban seat post.Easy seat adjustmentDiameter: 27.2 mm.Length: 350mm in M / L / XL, 300mm in S, 250mm in XS |
| Pedals | Platform pedals included with the bike. |
