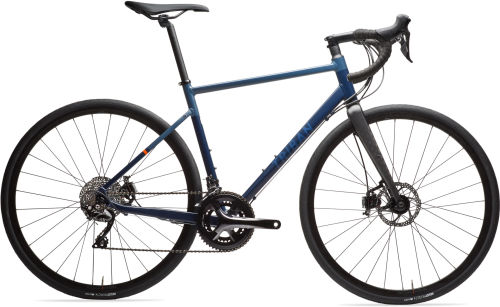

Triban RC 520
Serie: RC 520 - Year: 2020
Where to buy it
Specifications

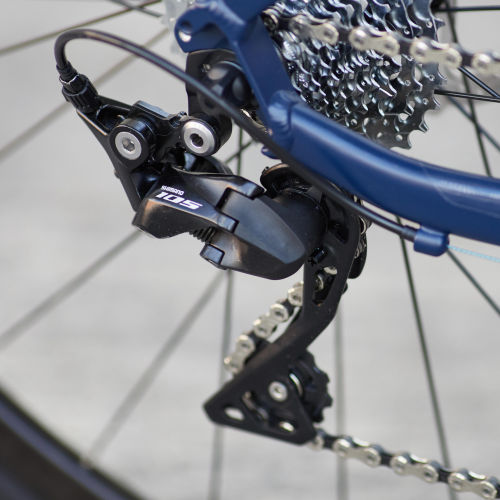

Drivetrain

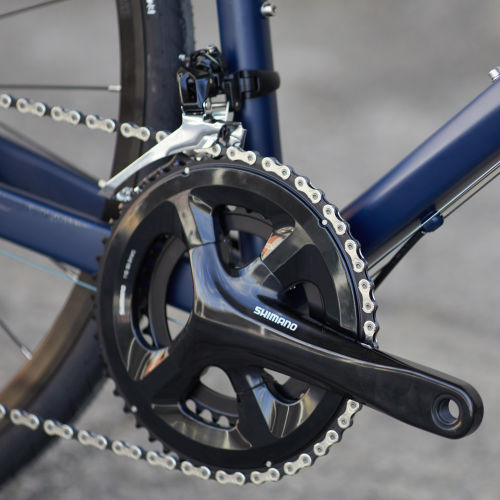

| Crank | Microshift CS-H110 11S 11/32 cassette(11/12/13/14/15/17/19/21/24/28/32).Shimano RS 510 compact bottom bracket in 50/34.Crank length varies according to size of bike:XS, S: 170mm.M: 172.5 mm.L, XL: 175mm. |
|---|
Frameset

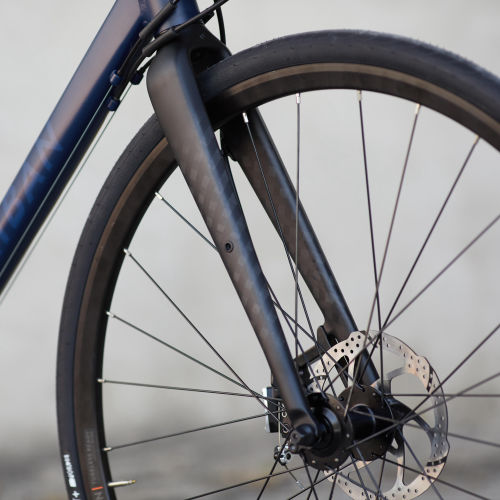

| Fork | New Triban Evo fork with carbon blades and aluminium 1"1/8 Aheadset steerer tube. This fork combines comfort, low weight, and precision.The carbon has been machined to provide good lateral rigidity and good filtering of frontal vibrations.Inserts on blades for mounting a front pannier rack. Maximum load on the fork: 8 kg,Eyelets on the wheel axle for attaching a mudguardCompatible with tyres measuring up to 36 mm |
|---|---|

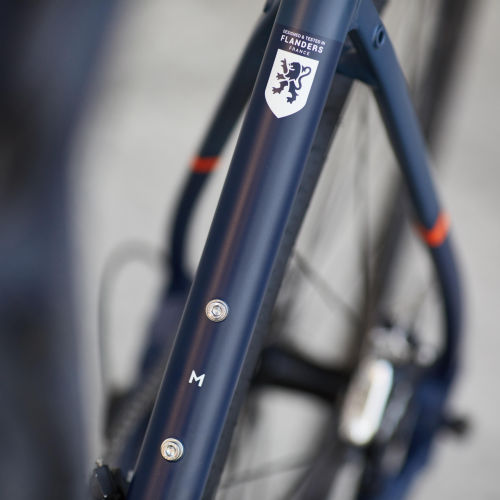

| Frame | New Triban Evo frame in 6061 T6 aluminium, comfort-oriented geometry with adapted slopingWeight: 1780g in size MStrong, versatile frame: you can attach mudguards and a pannier rack. Normative compatibility with tyres with a cross-section of up to 36. The special work done on the frame enables good lateral rigidity and good vibration dampening. Because of this, our quick-release (QR) wheel system is more accessible, and guarantees good rigidity. |
Wheels
| Tyres | Hutchinson Overide 35 Tubeless Ready tyres for optimal performance on rolling trails350 gSkinwall flex beadHardSkin puncture-proof fabric over the entire tyreDurable carcass: 66 TPI.Dimensions: 35c-622 / 700 x 35cMin pressure: 3 bar / 43 psiMax pressure: 5.5 bar / 80 psiMounted pressure with inner tube: 4.5 bar front, 5 bar back (75 kg rider) - Please be aware of the risk of tyres that are over 36mm.Even if the clearance between the wheel and the fork and frame is enough for 40 mm tyres, there is a risk of you coming off your bike in the event that your shoe comes into contact with the front tyre. This can happen at low speeds on tight turns, and will depend on the size of the frame and how you've got your SPD cleats set up on your sole. - 700x36 or 650x42 tyres can be fitted on the wheel |
|---|---|
| Wheels | Triban Tubeless Ready Light 700x17c wheels for optimal performance on rolling trails6106T6 aluminium.ETRTO dimension: 622 x 17c.Height 24mm for increased lateral rigidity.Crossed steel spokes for greater rigidity (28 front and 28 rear).Sealed cartridge bearings.Weight per pair (without cassette and QR): 2000 g*Conversion kit required (not supplied), including 2 tubeless valves + 2 rim strips + bottle of anti-puncture liquid. |
Brakes

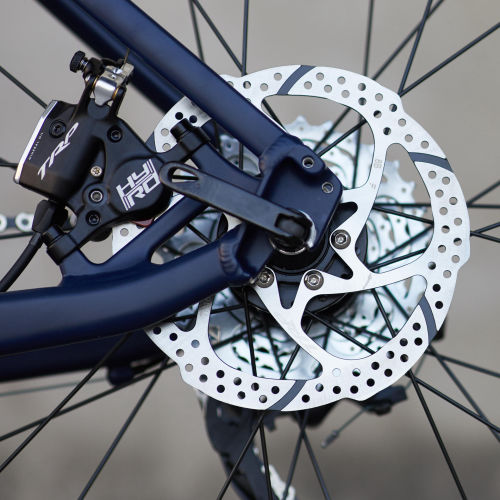

| Brakes | TRP HY/RD disc brakes.Cable-operated hydraulic pistons, ensuring reliability and efficiency160mm disc at the front and rearAnti-compression Jagwire housing to ensure braking precision and efficiencySemi-metallic TRP pad (M515/M525 version) |
|---|
Components
| Handlebar | Triban aluminium gravel handlebars with a 16° flare for better grip and excellent comfort.Handlebar width (axle-to-axle):XS / S: 420 mm.M / L: 440 mm.XL: 460 mm.Stem:XS / S: 80 mm.M: 100 mm.L: 110mm.XL: 120mm |
|---|---|

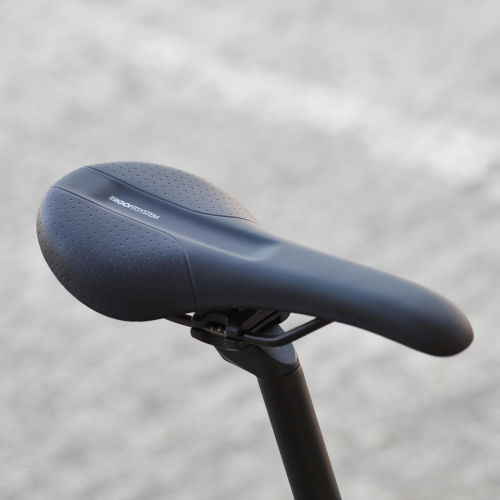

| Saddle | New Triban ErgoFit saddle.Hammock design for greater comfort.Aluminium Triban seat post.Easy seat adjustmentDiameter: 27.2mm.Length: 350 mm in M / L / XL, 250 mm in XS / SThe natural flex of the 27.2 diameter seat post dampens vibrations and shocks for added comfort |
| Pedals | Platform pedals included with the bike.We recommend either flat or SPD pedals |
