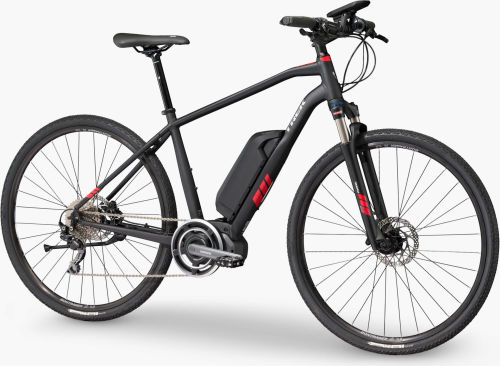

Trek DS Series Dual Sport+
Serie: DS Series - Year: 2017
Where to buy it
Specifications
Drivetrain
| Crank | SHIMANO STEPS |
|---|---|
| Derailleurs | Rear: Shimano Deore, Shadow Plus |
| Shifters | Shimano Deore, 10-speed |
| Cassette | Shimano HG50, 11-36, 10-speed |
Frameset
| Frame | Alpha Gold Aluminium, custom designed for SHIMANO STEPS system, internal cable routing |
|---|---|
| Headset | 1-1/8" threadless, sealed cartridge bearings |
| Suspensions | Front: SR Suntour NRX, ATB rated, coil spring, preload, hydraulic lockout, 63mm travel |
| Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
Wheels
| Hub | Front: Formula DC20 alloy - Rear: Formula DC22 alloy |
|---|---|
| Rims | Bontrager Tubeless Ready |
| Tyres | Bontrager LT2, Hard-Case Lite, 700x38c |
| Wheels | Formula DC20 alloy front hub; Formula DC22 alloy rear hub; Bontrager Tubeless Ready rims |
Brakes
| Brakes | Shimano M315 hydraulic disc |
|---|
Components
| Handlebar | Bontrager alloy, 25.4mm, 15mm rise |
|---|---|
| Saddle | Bontrager H1 |
| Seatpost | Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset |
| Stem | Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
E-System
| Battery | SHIMANO STEPS downtube |
|---|---|
| Controller | SHIMANO STEPS E6010 |
geometry
| Frame size number | Actual frame size | Wheel size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 in | 15 in | 700c | 39.3 | 74.5° | 11.4 | 70.0° | 57.5 | 28.8 | 6.6 | 46.5 | 3.8 | 7.8 | 110.5 | 71.9 | 40.9 | 59.8 |
| 17.5 in | 17.5 in | 700c | 44.5 | 74.0° | 12.4 | 71.0° | 59.0 | 28.8 | 6.6 | 46.5 | 3.8 | 7.4 | 111.0 | 74.9 | 41.5 | 61.0 |
| 20 in | 20 in | 700c | 48.3 | 73.5° | 13.4 | 71.0° | 60.5 | 28.8 | 6.6 | 46.5 | 3.8 | 7.4 | 112.0 | 77.2 | 42.1 | 61.9 |
| 22.5 in | 22.5 in | 700c | 53.3 | 73.0° | 14.4 | 71.5° | 62.0 | 28.8 | 6.6 | 46.5 | 3.8 | 7.1 | 112.4 | 80.4 | 42.7 | 63.1 |
