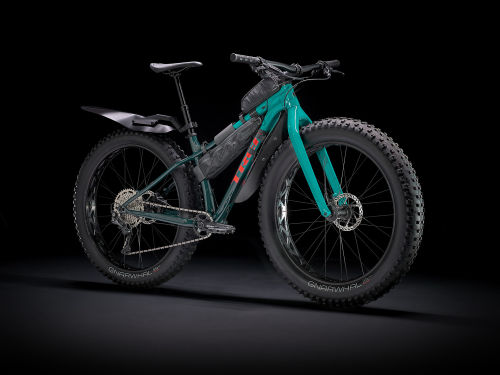

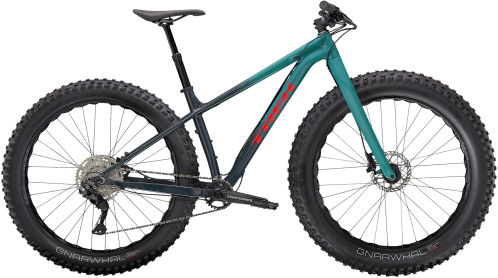

Trek Farley 5
Serie: Farley - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | KMC X10, 10-speed |
|---|---|
| Crank | Size: SRace Face Ride, 28T steel ring, 170mm length - Size: M, L, XLRace Face Ride, 28T steel ring, 175 mm length |
| Derailleurs | Rear: Shimano Deore M5120, long cage |
| Shifters | Shimano Deore M4100, 10 speed |
| Cassette | Shimano Deore M4100, 11-46, 10-speed |
Frameset
| Fork | Bontrager Haru, tapered alloy steerer, OCLV Carbon lowers, 490 mm axle-to-crown, 15x150 mm thru axle |
|---|---|

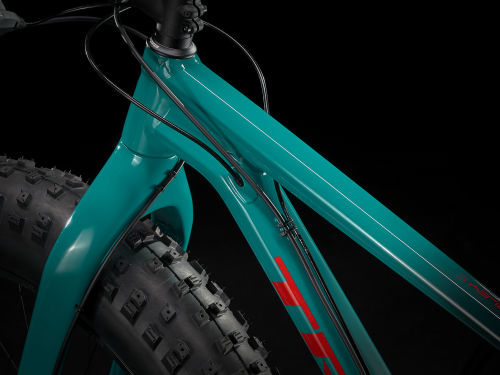

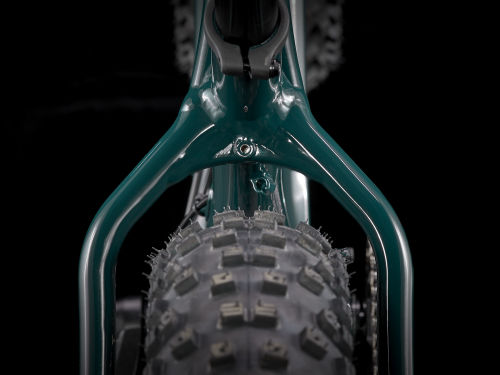

| Frame | Alpha Platinum Aluminium, tapered head tube, internal derailleur & dropper post routing, rack mounts, 197x12 mm adjustable horizontal sliding dropouts |
| Headset | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Size: SBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: MBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: LBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: XLBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, 6-bolt disc, 150x15 mm thru axle - Rear: Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, Shimano 10 freehub, 197x12 mm thru axle |
|---|---|
| Rims | SUNRingle Mulefut 80 SL, 32-hole cutout |
| Spokes | 15 g, stainless |
| Tyres | Size: S, M, L, XLBontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, studdable, aramid bead, 120 tpi, 27.5x4.50'"' - Size: S, MBontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, studdable, aramid bead, 120 tpi, 27.5x3.80'"' |
Brakes
| Brakes | SRAM Level hydraulic disc |
|---|
Components

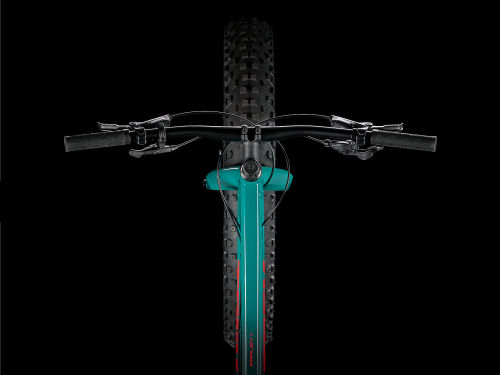

| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|---|---|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: STranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length - Size: MTranzX JD-YSP18, 120 mm travel, internal routing, 31.6 mm, 403 mm length - Size: L, XLTranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length |
| Stem | Size: SBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: MBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: LBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: XLBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| Pedals | VP-536 nylon platform |
