Specifications
Drivetrain
Chain | SRAM GX Eagle, 12-speed |
---|---|

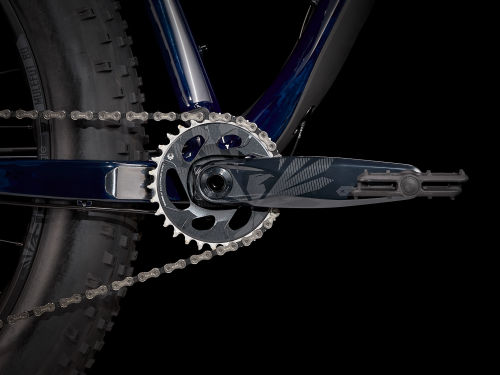

Crank | Size: SSRAM GX Eagle, DUB, 30T alloy FAT 5 ring, 170 mm length - Size: M, L, XLSRAM GX Eagle, DUB, 30T alloy FAT 5 ring, 175 mm length |

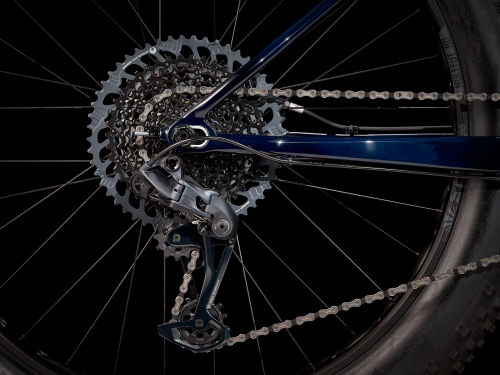

Derailleurs | Rear: SRAM GX Eagle |
Shifters | SRAM GX Eagle, 12-speed |
Cassette | SRAM Eagle XG-1275, 10-52, 12-speed |
Frameset

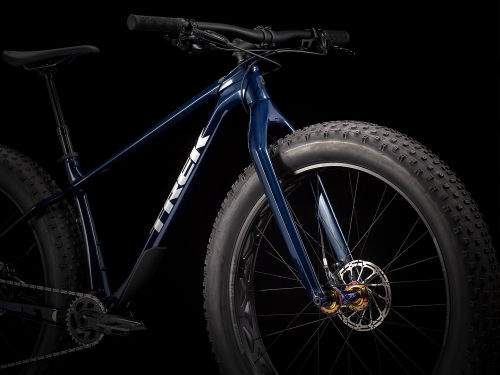

Fork | Bontrager Haru, tapered alloy steerer, OCLV Carbon lowers, 490 mm axle-to-crown, 15x150 mm thru axle |
---|---|

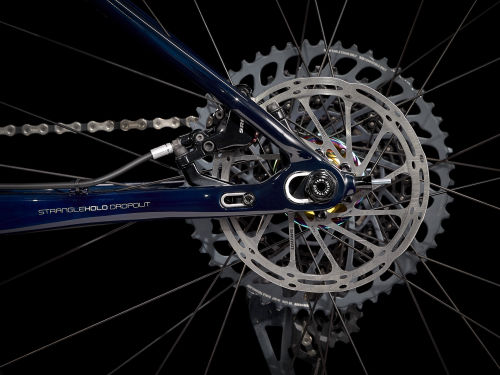

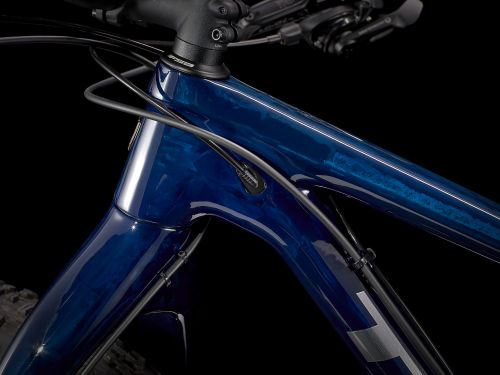

Frame | OCLV Mountain Carbon, tapered head tube, internal derailleur & dropper post routing, 197x12 mm adjustable horizontal sliding dropouts |
Headset | FSA IS-2, 1-1/8" top, 1.5" bottom |
Size: SBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: MBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: LBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: XLBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
Wheels
Hub | Front: Bontrager alloy, sealed bearing, 6-bolt, 15x150 mm thru axle - Rear: Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, 197x12 mm thru axle |
---|---|
Rims | SUNRingle Mulefut 80 SL, 32-hole cutout |
Spokes | 15 g, stainless |

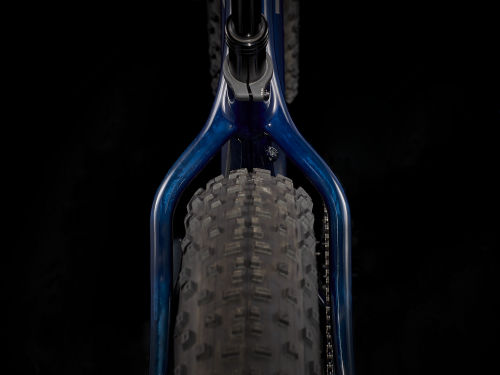

Tyres | Bontrager Barbegazi Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x4.50" |
Brakes
Brakes | SRAM Level TL hydraulic disc |
---|
Components

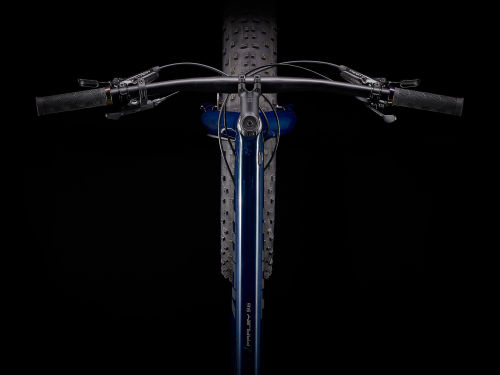

Handlebar | Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
---|---|
Grips | Bontrager XR Trail Elite, alloy lock-on |
Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
Seatpost | Size: STranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length - Size: MTranzX JD-YSP18, 120 mm travel, internal routing, 31.6 mm, 403 mm length - Size: L, XLTranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length |
Stem | Size: SBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: MBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length - Size: LBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Size: XLBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
Pedals | VP-536 nylon platform |
