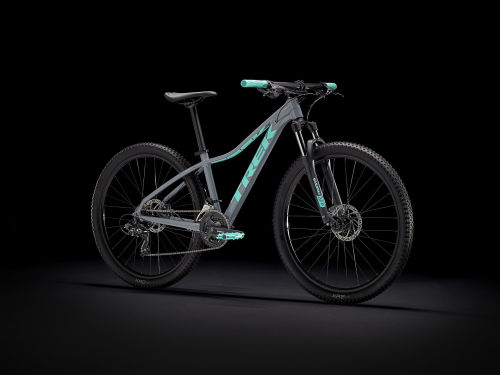

Trek Marlin 5 Women's
Serie: Marlin - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | KMC Z7, 7-speed |
|---|---|

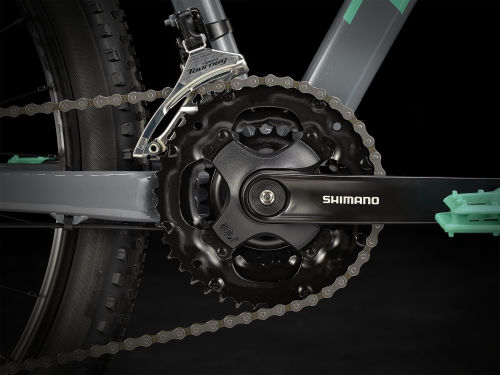

| Crank | Size: XS , S , M Shimano Tourney TY301, 42/34/24, 170 mm length - Size: ML Shimano Tourney TY301, 42/34/24, 175 mm length |

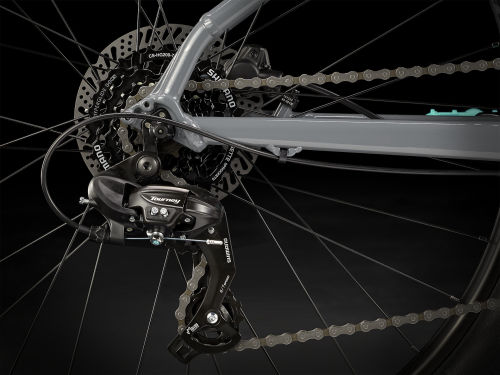

| Derailleurs | Front: Shimano Tourney TY300, 34.9 mm clamp, down swing, down pull - Rear: Shimano Tourney TY300, long cage, 34T max cog |
| Shifters | Size: XS , S , M , ML Shimano Altus M315, 3-speed - Size: XS , S , M , ML Shimano Altus M315, 7-speed |
| Cassette | Shimano HG200, 12-32, 7-speed |
Frameset

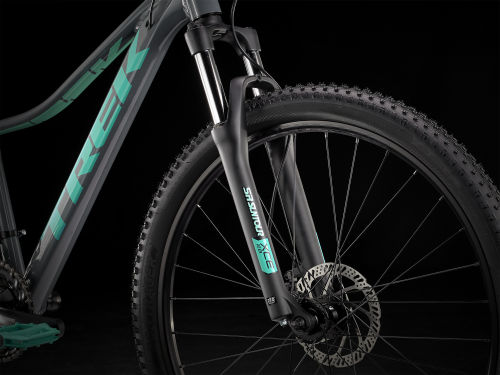

| Fork | Size: XS SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel - Size: S SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel - Size: M , ML SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
|---|---|

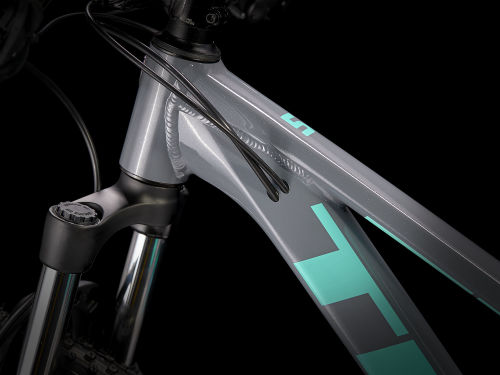

| Headset | Semi-integrated, 1-1/8" |
| Size: XS Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length - Size: S , M Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: ML Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
Wheels
| Hub | Front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR - Rear: Formula DC-27, alloy, 6-bolt, 7sp freehub, 135x5 mm QR |
|---|---|
| Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Spokes | 14 g stainless steel, black |

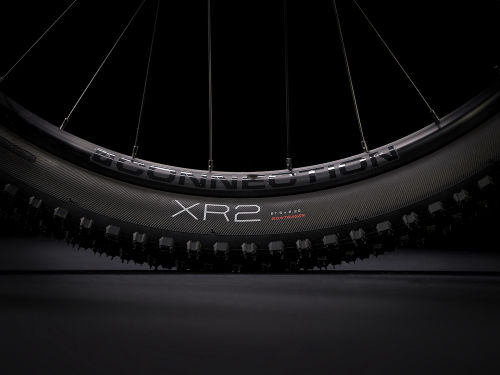

| Tyres | Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20" - Size: M , ML Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20" - Size: M , ML Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.00" |
Brakes

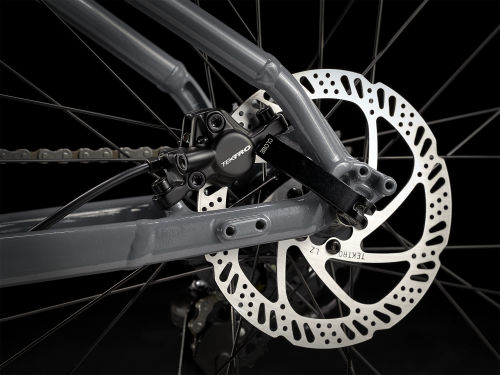

| Brakes | Size: XS , S Tektro HD-M276 hydraulic disc, short-reach lever - Size: M , ML Tektro HD-M275 hydraulic disc |
|---|
Components

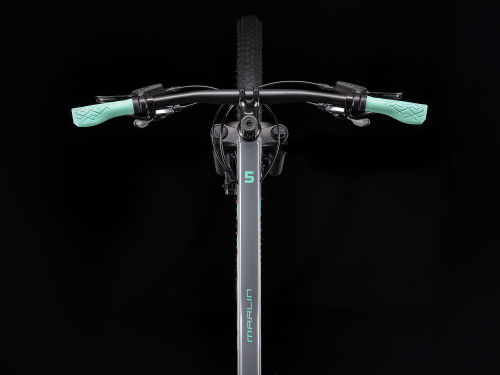

| Handlebar | Size: XS , S Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width - Size: M , ML Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width |
|---|---|
| Grips | Size: XS , S , M , ML Bontrager XR Endurance Comp, lock-on - Size: XS , S , M , ML Bontrager XR Endurance Comp |
| Saddle | Bontrager Ajna 1 Women's |
| Seatpost | Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length - Size: ML Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
| Stem | Size: XS Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length - Size: S , M Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: ML Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Pedals | VP-536 nylon platform |
