Specifications
Drivetrain
Chain | KMC X10, 10-speed |
---|---|

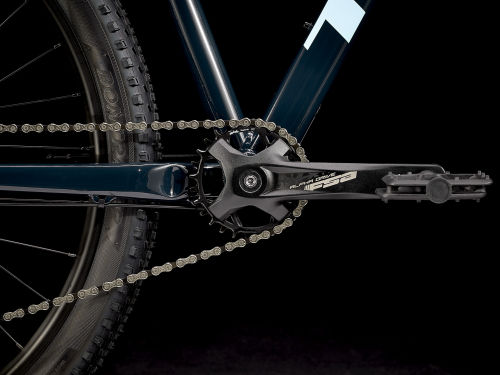

Crank | Size: XS , S , M FSA Alpha Drive, 28T steel ring, Boost, 170 mm length - Size: ML FSA Alpha Drive, 28T steel ring, Boost, 175 mm length |

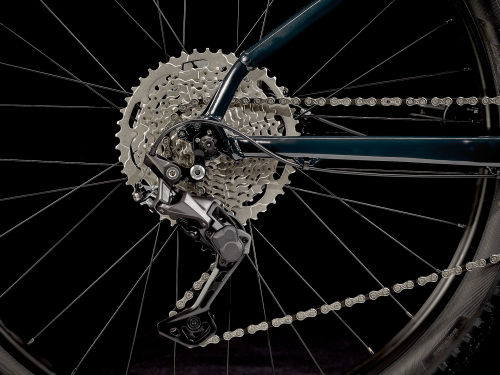

Derailleurs | Rear: Shimano Deore M5120, long cage |
Shifters | Shimano Deore M4100, 10 speed |
Cassette | Shimano Deore M4100, 11-46, 10-speed |
Frameset

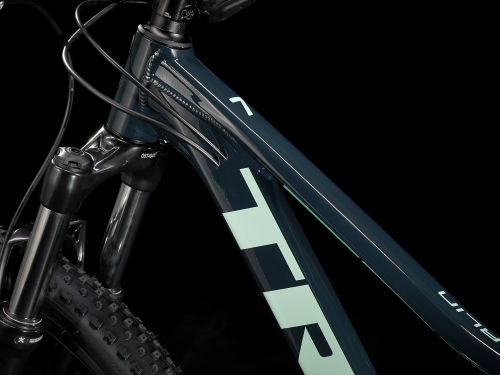

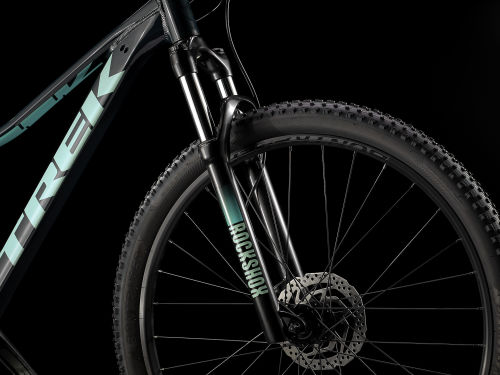

Fork | Size: XS RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel - Size: S RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel - Size: M , ML RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
---|---|

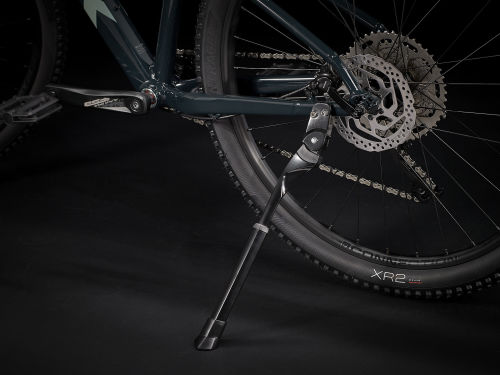

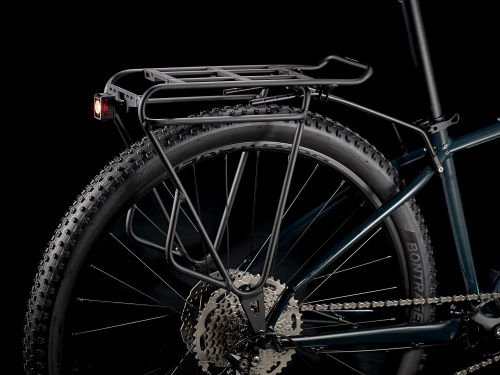

Frame | Size: XS , S Alpha Silver Aluminium, low standover, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR - Size: M , ML Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR |
Headset | Semi-integrated, 1-1/8" |
Size: XS Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length - Size: S , M Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: ML Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
Wheels
Hub | Front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR - Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
---|---|
Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
Spokes | 14 g stainless steel, black |

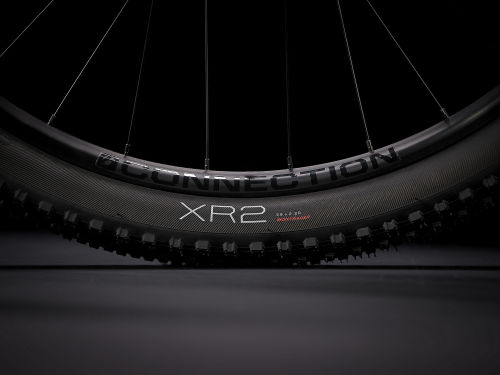

Tyres | Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20" - Size: M , ML Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20" |
Brakes

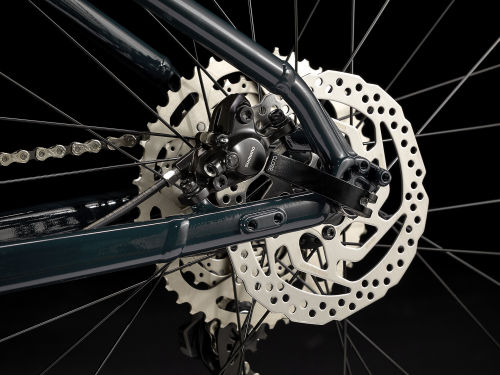

Brakes | Shimano MT200 hydraulic disc |
---|
Components

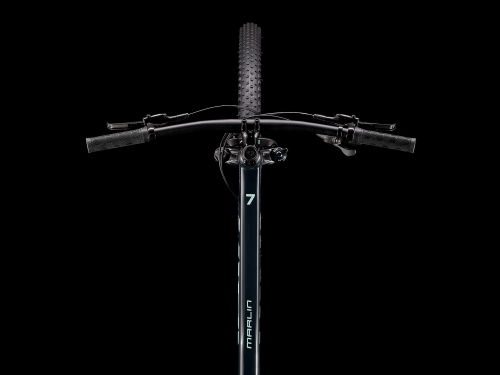

Handlebar | Size: XS , S Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width - Size: M , ML Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width |
---|---|
Grips | Bontrager XR Trail Comp, nylon lock-on |

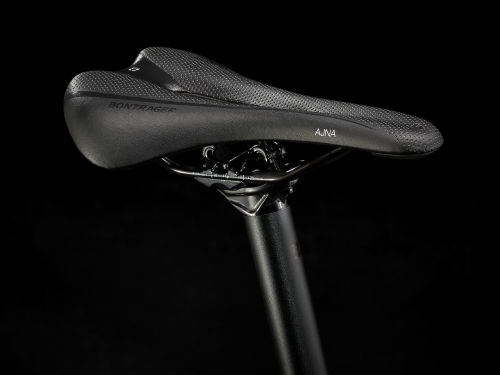

Saddle | Bontrager Ajna 1 Women's |
Seatpost | Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length - Size: ML Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
Stem | Size: XS Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length - Size: S , M Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length - Size: ML Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
Pedals | VP-536 nylon platform |
