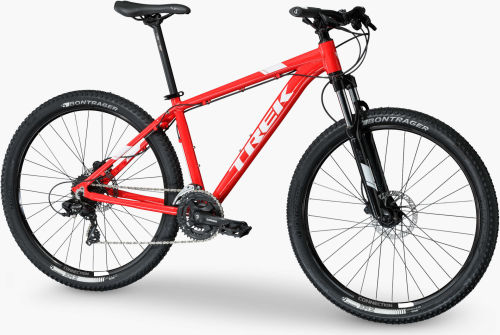

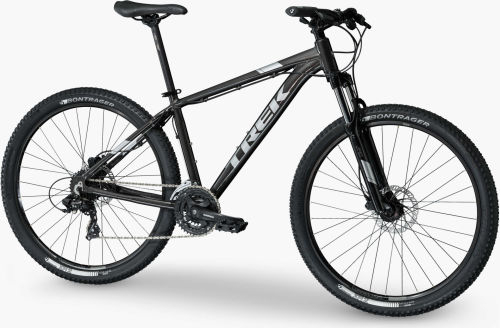

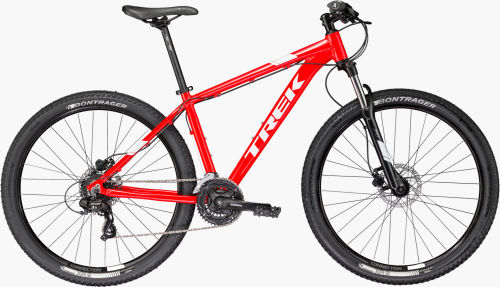

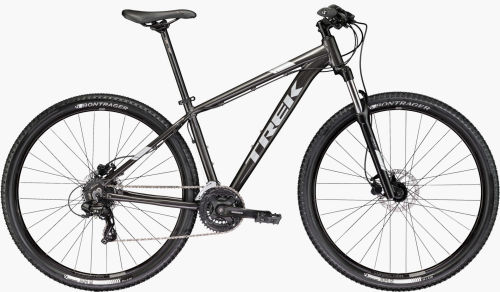

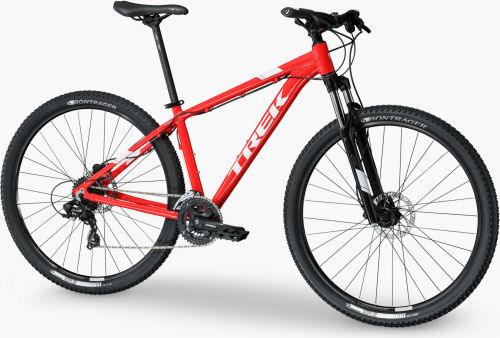

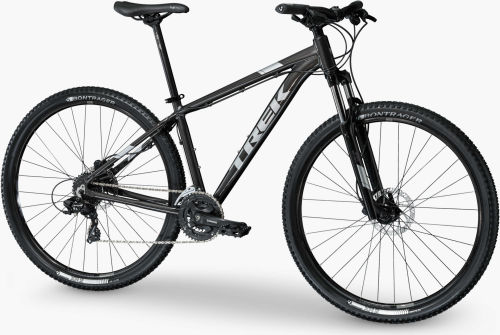

Trek Marlin Marlin 6
Serie: Marlin - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | KMC Z7 |
|---|---|
| Crank | Shimano Tourney TY501, 42/34/24 |
| Derailleurs | Front: Shimano Tourney TY700 - Rear: Shimano Tourney TX800 |
| Shifters | Shimano Altus M310, 8-speed |
| Cassette | Shimano HG20, 12-32, 8-speed |
Frameset
| Frame | Alpha Silver Aluminium w/semi-integrated head tube, rack and mudguard mounts, G2 Geometry on 29ers |
|---|---|
| Headset | 1-1/8" threadless, semi-integrated, semi-cartridge bearings |
| Suspensions | Front: RST Gila, coil spring, preload, mechanical lockout, G2 Geometry w/51mm offset on 29ers, 100mm travel (13.5: 80mm travel) |
| Bontrager Alloy, 31.8mm, 7mm rise, Blendr compatible |
Wheels
| Hub | Front: Formula DC20 alloy - Rear: Formula DC22 alloy |
|---|---|
| Rims | Bontrager Connection 32-hole double-walled |
| Tyres | Bontrager XR2, 29x2.20" front, 29x2.00" rear (13.5 & 15.5: 27.5x2.20") |
| Wheels | Formula alloy hubs, Bontrager Connection 32-hole double-walled rims |
Brakes
| Brakes | Tektro M285 hydraulic disc |
|---|
Components
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise |
|---|---|
| Saddle | Bontrager Evoke 1 |
| Seatpost | Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset |
| Stem | Bontrager Alloy, 31.8mm, 7mm rise, Blendr compatible |
geometry
| Frame size number | Actual frame size | Wheel size | A Seat tube | B Seat tube angle | Effective seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 in | 13.5 in | 27.5" | 34.3 | 73.0° | 73.0° | 10.0 | 69.0° | 52.5 | 30.6 | 4.8 | 43.8 | 4.4 | 8.9 | 103.3 | 66.0 | 35.2 | 56.5 |
| 15.5 in | 15.5 in | 27.5" | 39.4 | 73.0° | 73.0° | 10.0 | 69.3° | 56.0 | 30.6 | 4.8 | 43.8 | 4.4 | 8.7 | 106.6 | 74.5 | 38.1 | 58.5 |
| 17.5 in | 16.5 in | 29" | 41.9 | 72.5° | 72.5° | 10.0 | 69.3° | 60.2 | 31.6 | 5.3 | 44.5 | 5.1 | 8.5 | 111.6 | 76.5 | 41.3 | 60.0 |
| 18.5 in | 17.5 in | 29" | 44.4 | 72.3° | 72.3° | 10.0 | 69.6° | 62.0 | 31.6 | 5.3 | 44.5 | 5.1 | 8.3 | 112.8 | 77.7 | 42.8 | 60.1 |
| 19.5 in | 18.5 in | 29" | 47.0 | 72.0° | 72.0° | 10.0 | 69.6° | 63.9 | 31.6 | 5.3 | 44.5 | 5.1 | 8.3 | 114.4 | 78.9 | 44.4 | 60.1 |
| 21.5 in | 20.5 in | 29" | 52.1 | 72.0° | 72.0° | 12.0 | 69.6° | 65.9 | 31.6 | 5.3 | 44.5 | 5.1 | 8.3 | 116.5 | 82.5 | 45.8 | 62.0 |
| 23 in | 22 in | 29" | 55.9 | 72.0° | 72.0° | 12.0 | 69.6° | 67.3 | 31.6 | 5.3 | 44.5 | 5.1 | 8.3 | 117.9 | 84.8 | 47.2 | 62.0 |
