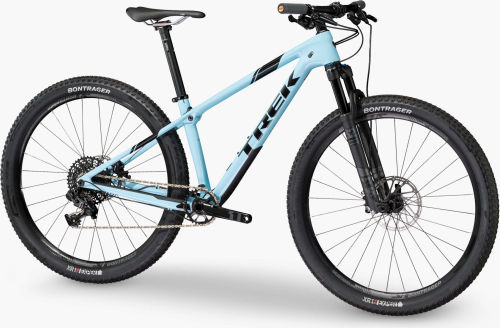

Trek Procaliber Procaliber 9.7 Women's

Serie: Procaliber - Year: 2017
Trek

Where to buy it

Specifications

Drivetrain

ChainSRAM PC-1110
CrankSRAM X1 1200, 32T Direct Mount X-Sync
DerailleursRear: SRAM X1, Roller Bearing Clutch
ShiftersSRAM GX, 11-speed
CassetteSRAM XG-1150, 10-42, 11-speed

Frameset

FrameOCLV Mountain Carbon, IsoSpeed, E2 tapered head tube, internal derailleur routing, balanced post mount brake, PF92, Boost148 and G2 Geometry on 29ers
HeadsetIntegrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
SuspensionsFront: Fox Performance 32 Float, Step Cast, Grip 2-position remote damper, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset on 29ers, 100mm travel
Bontrager Elite, 31.8mm, 7 degree, Blendr compatible

Wheels

TyresBontrager XR1 Expert, Tubeless Ready, Inner Strength sidewalls, aramid bead, 29x2.20" (15.5: 27.5x2.20")
WheelsBontrager Mustang Pro, Tubeless Ready, Boost110 front, Boost148 rear (15.5: 142x12 rear)

Brakes

BrakesSRAM Level TL hydraulic disc

Components

HandlebarBontrager Race Lite, 31.8mm, 5mm rise
SaddleBontrager Ajna Comp WSD, chromoly rails
SeatpostBontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset
StemBontrager Elite, 31.8mm, 7 degree, Blendr compatible

geometry

Frame size number Actual frame size Wheel size A Seat tube B Seat tube angle Effective seat tube angle C Head tube length D Head angle E Effective top tube F Bottom bracket height G Bottom bracket drop H Chainstay length I Offset J Trail K Wheelbase L Standover M Frame reach N Frame stack Frame rise
13.5 in 13.5 in 27.5" 34.3 73.0° 73.0° 10.0 69.0° 54.1 30.2 4.8 42.5 4.4 8.7 103.7 73.5 37.0 56.3 56.3
15.5 in 15.5 in 27.5" 36.8 73.0° 73.0° 10.0 69.3° 55.8 30.2 4.8 42.5 4.4 8.5 105.3 75.3 38.2 56.3 56.3
17.5 in 16.5 in 29" 41.9 72.5° 72.5° 9.0 69.5° 59.9 31.1 5.8 43.5 5.1 8.3 109.8 75.0 41.2 59.5 59.5
18.5 in 17.5 in 29" 44.4 72.3° 72.3° 9.0 69.5° 61.7 31.1 5.8 43.5 5.1 8.3 111.3 76.4 42.7 59.5 59.5
