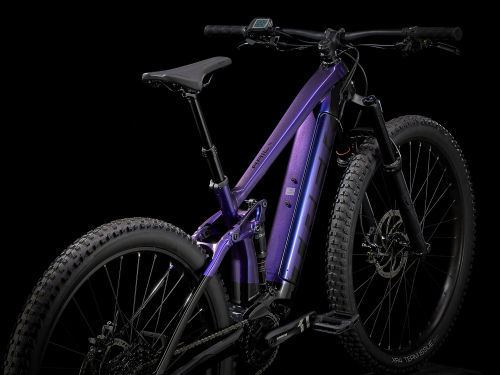

Trek Rail 5
Serie: Rail - Year: 2020
Where to buy it
Specifications
Drivetrain
| Chain | SRAM SX Eagle, 12-speed |
|---|---|
| Crank | SRAM X1 1000, 36T, 165 mm length |

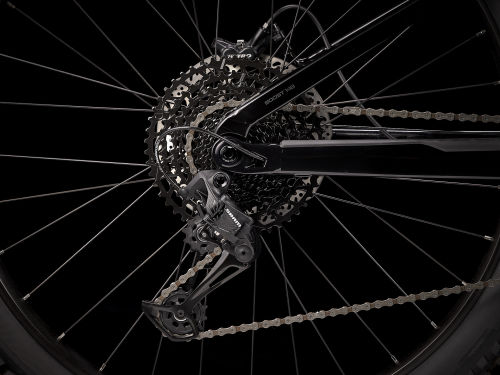

| Derailleurs | Rear: SRAM SX Eagle |
| Shifters | SRAM SX Eagle single-click, 12-speed |
| Cassette | SRAM PG-1210 Eagle, 11-50, 12-speed |
Frameset
| Fork | RockShox 35 Gold RL, DebonAir spring, Motion Control damper, e-MTB optimised, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160mm travel |
|---|---|
| Frame | Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |

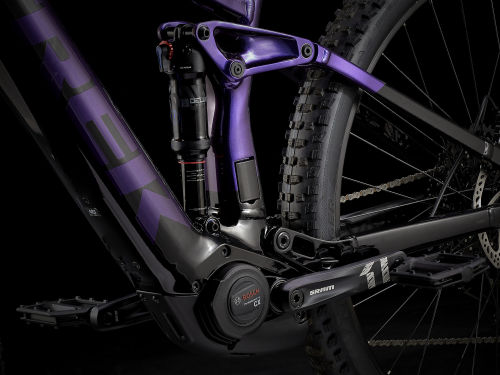

| Shoc | RockShox Deluxe Select+, 230x57.5 mm |
| Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
Wheels
| Hub | Front: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle - Rear: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle |
|---|---|
| Rims | Alex MD35, Tubeless Ready, 32-hole, 35 mm width, Presta valve |

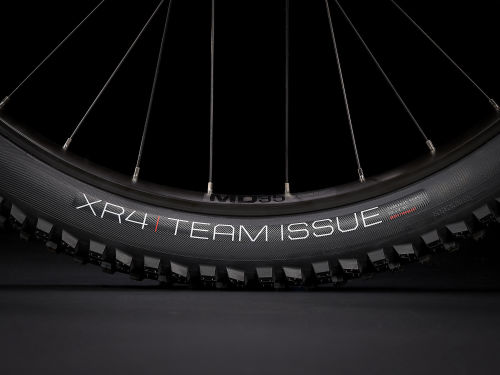

| Tyres | Size: S, M, L, XLSchwalbe Nobby Nic Performance, tubeless, aramid bead, 29x2.60'' - Size: S, M, L, XLBontrager XR4 Comp, wire bead, 30 tpi, 29x2.60" |
Brakes

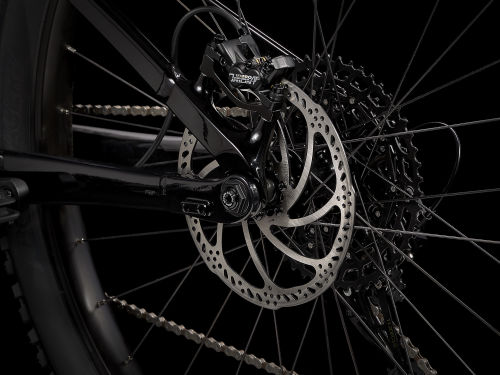

| Brakes | Tektro HD-M745 4-piston hydraulic disc |
|---|
Components
| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|---|---|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: STranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length - Size: M, L, XLTranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length |

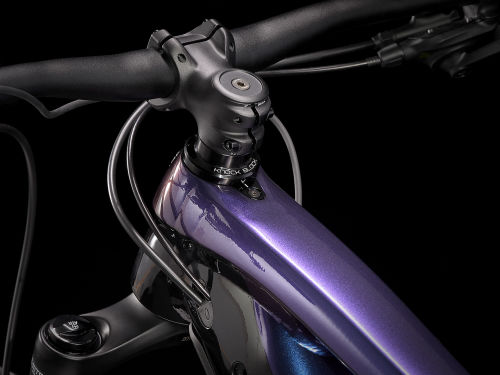

| Stem | Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
| Pedals | VP-536 nylon platform |
E-System

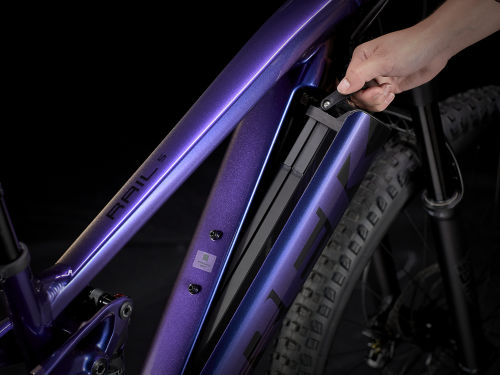

| Battery | Bosch PowerTube, vertical, 500 wh |
|---|---|
| Charger | Bosch compact 2A (100-240 V) charger |

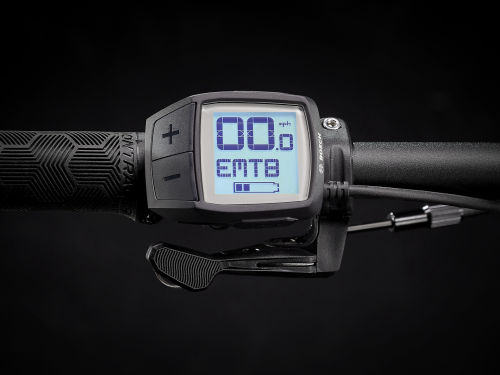

| Controller | Bosch Purion |

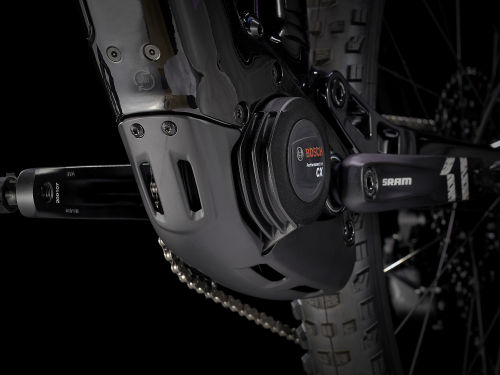

| Motor | Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand |
