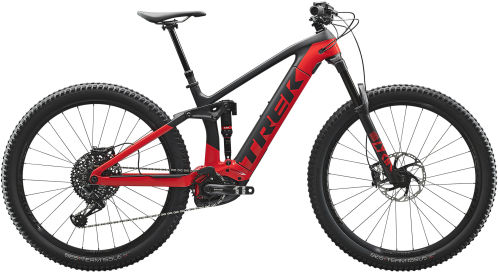

Trek Rail 9.8
Serie: Rail - Year: 2020
Where to buy it
Specifications
Drivetrain
| Chain | SRAM GX Eagle, 12-speed |
|---|---|
| Crank | SRAM X1 1000, 36T, 165 mm length |
| Derailleurs | Rear: SRAM GX Eagle |
| Shifters | SRAM GX Eagle single-click, 12-speed |
| Cassette | SRAM XG-1275 Eagle, 10-50, 12-speed |
Frameset
| Fork | RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, e-MTB-optimised, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel |
|---|---|

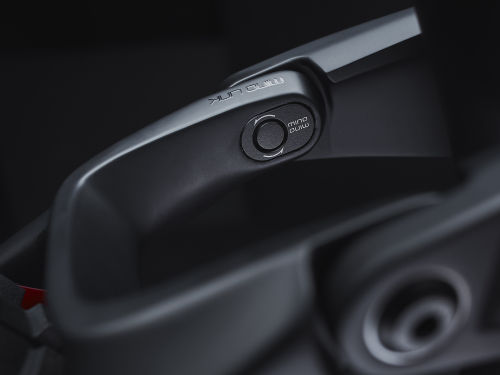

| Frame | OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |

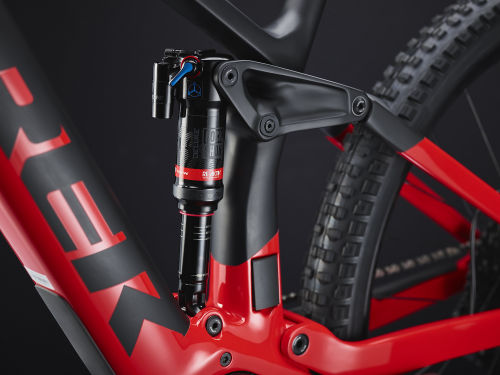

| Shoc | RockShox Deluxe RT3, DebonAir spring, RE:aktiv w/Thru Shaft damper, 230x57.5 mm |
| Bontrager Line Pro, 35 mm, Knock Block, 0-degree, 50 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|---|---|

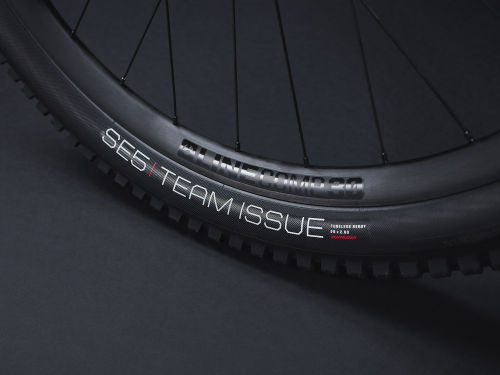

| Tyres | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60" |
Brakes

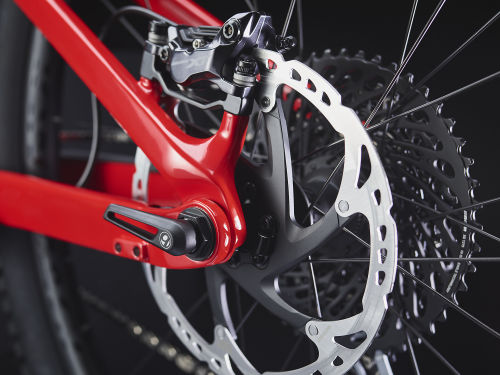

| Brakes | Shimano SLX M7120 4-piston hydraulic disc |
|---|
Components
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
|---|---|
| Grips | Bontrager XR Trail Elite, alloy lock-on |
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |
| Seatpost | Size: SBontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length - Size: L, XLBontrager Line Elite Dropper, 170mm travel, internal routing, 31.6 mm, 480mm length - Size: MBontrager Line Elite Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length |

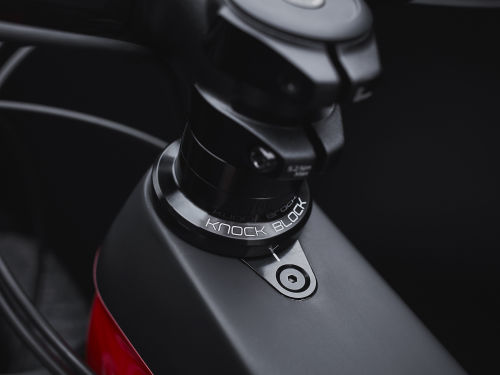

| Stem | Bontrager Line Pro, 35 mm, Knock Block, 0-degree, 50 mm length |
| Pedals | VP-536 nylon platform |
E-System

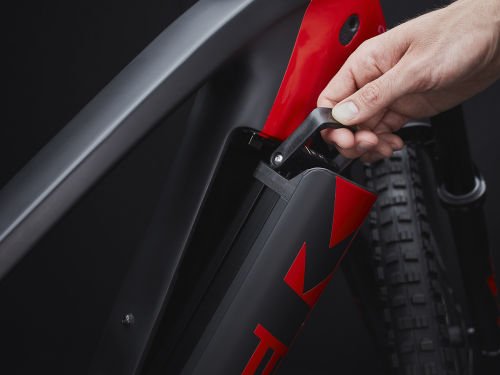

| Battery | Bosch PowerTube 625 |
|---|---|

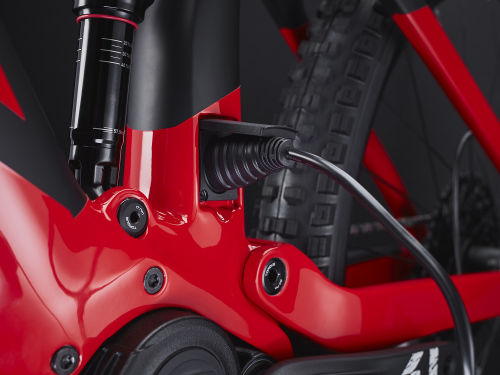

| Charger | Bosch standard 4A (220-240 V) charger |

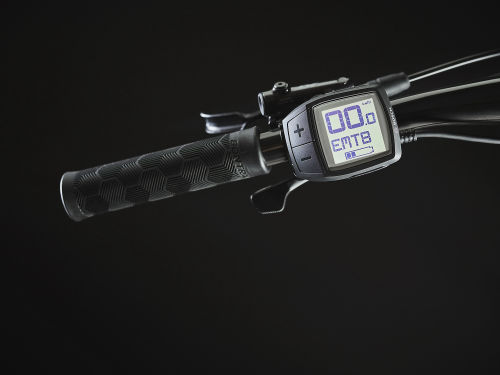

| Controller | Bosch Purion |

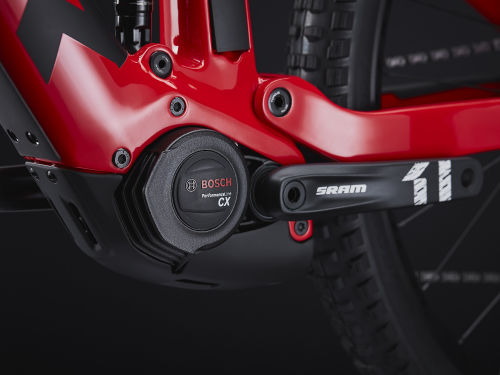

| Motor | Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand |
