Specifications
Drivetrain
Chain | SRAM NX Eagle, 12-speed |
---|---|

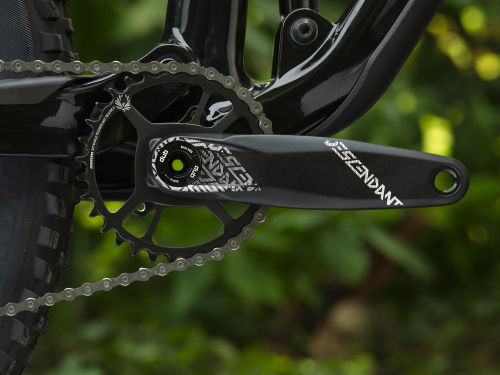

Crank | Size: ML Truvativ Descendant 6k Eagle, DUB, 32T steel ring, Boost, 175 mm length - Size: XS Truvativ Descendant 6k Eagle, DUB, 32T steel ring, Boost, 170 mm length |

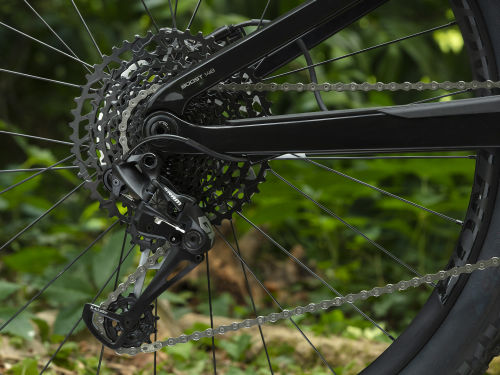

Derailleurs | Rear: SRAM GX Eagle |
Shifters | SRAM NX Eagle, 12-speed |
Cassette | SRAM PG-1230 Eagle, 11-50, 12-speed |
Frameset
Fork | Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel |
---|---|

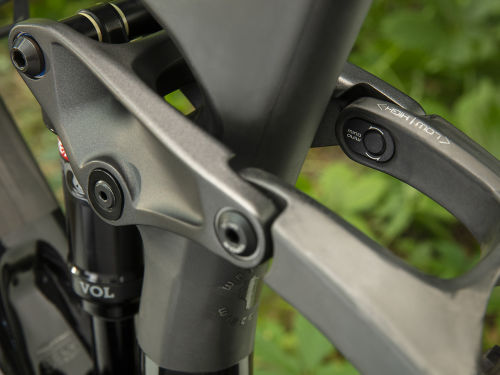

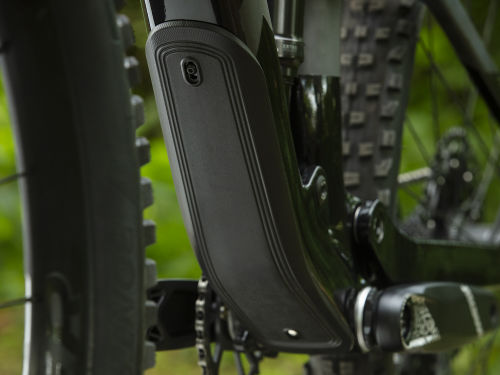

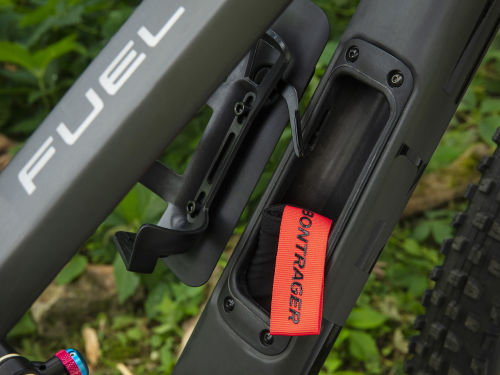

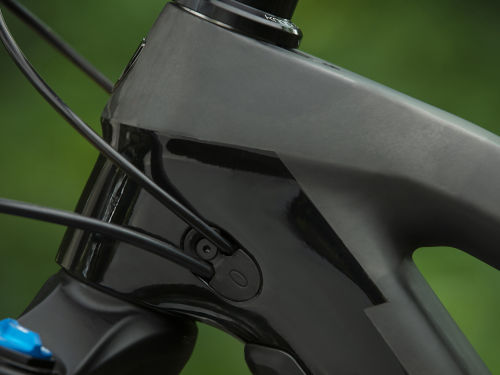

Frame | OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel |

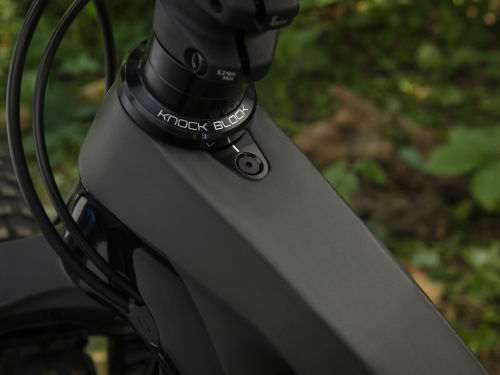

Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |

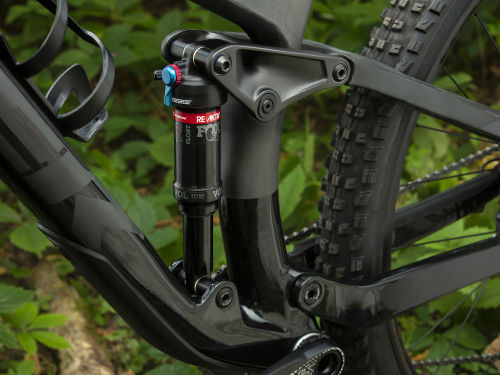

Shoc | Size: ML Fox Performance Float EVOL, RE:aktiv 3-position damper, tuned by Trek Suspension Lab, 210x55 mm - Size: XS Fox Performance Float EVOL, RE:aktiv 3-position damper, tuned by Trek Suspension Lab, 210x52.5 mm |
Size: ML Bontrager Line, 35 mm, Knock Block, 0-degree, 50 mm length - Size: XS Bontrager Line, 35 mm, Knock Block, 0-degree, 40 mm length |
Wheels

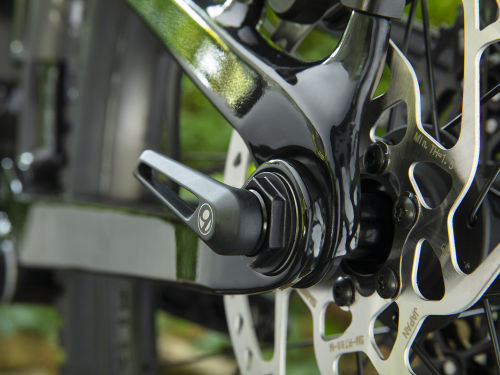

Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
---|---|
Spokes | DT Swiss Champion, J-Bend, Black |
Tyres | Size: ML Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60" - Size: XS Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60" |
Brakes
Brakes | Shimano MT420 4-piston hydraulic disc |
---|
Components
Handlebar | Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
---|---|
Grips | Bontrager XR Trail Elite, alloy lock-on |
Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
Seatpost | Size: ML Bontrager Line Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length - Size: XS Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length |
Stem | Size: ML Bontrager Line, 35 mm, Knock Block, 0-degree, 50 mm length - Size: XS Bontrager Line, 35 mm, Knock Block, 0-degree, 40 mm length |
