Specifications
Drivetrain

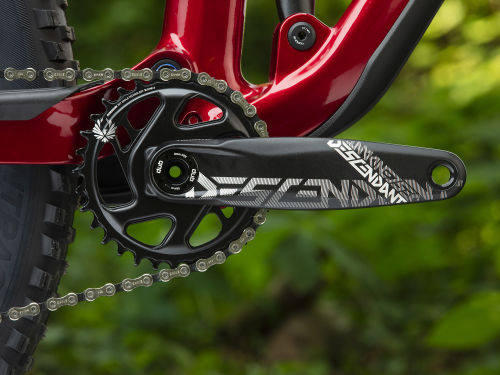

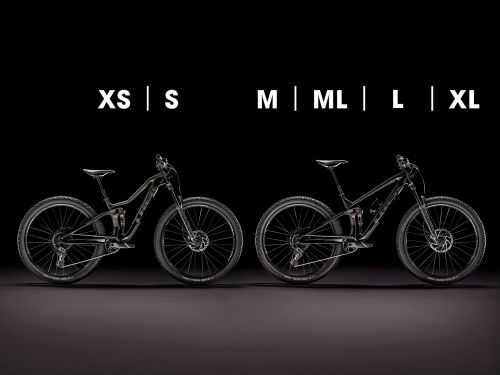

Crank | Size: XS , S Truvativ Descendant 7k Eagle, DUB, 32T alloy ring, Boost, 170 mm length - Size: ML Truvativ Descendant 7k Eagle, DUB, 32T alloy ring, Boost, 175 mm length |
---|---|

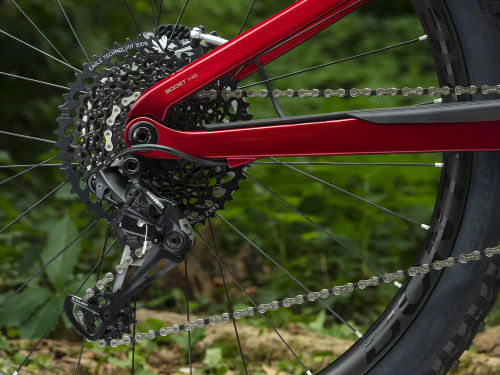

Derailleurs | Rear: SRAM GX Eagle |
Shifters | SRAM GX Eagle, 12-speed |
Cassette | SRAM XG-1275 Eagle, 10-50, 12-speed |
Frameset
Fork | Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel |
---|---|

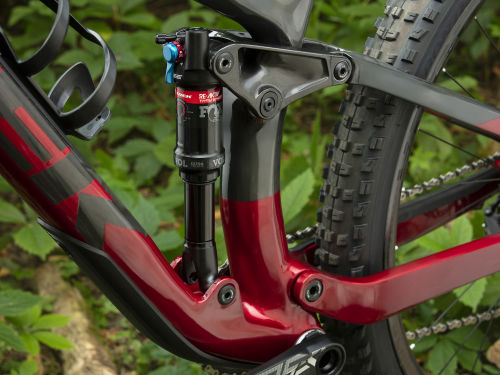

Shoc | Size: XS Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210x52.5mm - Size: S , ML Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210x55 mm |
Size: XS , S Bontrager Line Pro, 35mm, Knock Block, 0 degree, 40mm length - Size: ML Bontrager Line Pro, 35 mm, Knock Block, 0-degree, 50 mm length |
Wheels
Tyres | Size: XS Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60" - Size: S , ML Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60" |
---|
Brakes
Brakes | Shimano SLX M7120 4-piston hydraulic disc |
---|
Components
Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
---|---|
Grips | Bontrager XR Trail Elite, alloy lock-on |
Saddle | Bontrager Arvada, austenite rails, 138 mm width |
Seatpost | Size: XS , S Bontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length - Size: ML Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length |

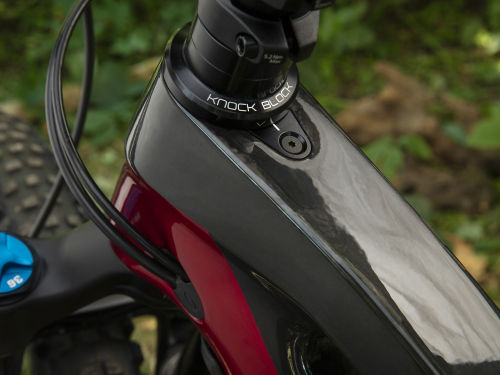

Stem | Size: XS , S Bontrager Line Pro, 35mm, Knock Block, 0 degree, 40mm length - Size: ML Bontrager Line Pro, 35 mm, Knock Block, 0-degree, 50 mm length |
