Specifications
Drivetrain
Chain | SRAM GX Eagle, 12-speed |
---|---|

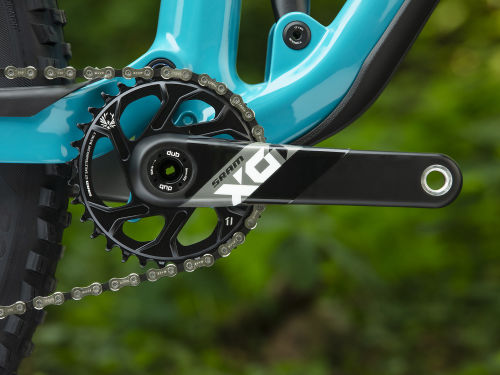

Crank | Size: ML , M SRAM X01 Eagle Carbon, DUB, 32T alloy ring, Boost, 175 mm length - Size: XS , S SRAM X01 Eagle Carbon, DUB, 32T alloy ring, Boost, 170 mm length |

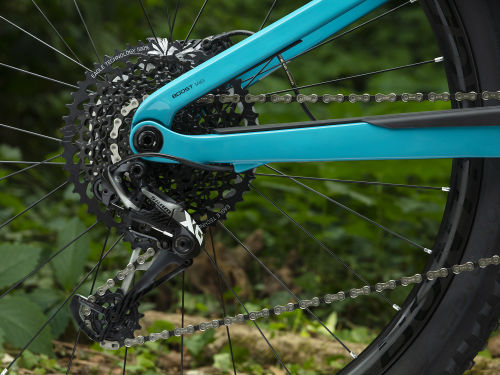

Derailleurs | Rear: SRAM X01 Eagle |
Shifters | SRAM X01 Eagle, 12-speed |
Cassette | SRAM XG-1275 Eagle, 10-50, 12-speed |
Frameset
Fork | Fox Factory 36, Float EVOL air spring, GRIP2 damper, tapered steerer, 44 mm offset, Kashima Coat, Boost110, 15 mm Kabolt axle, 140 mm travel |
---|---|

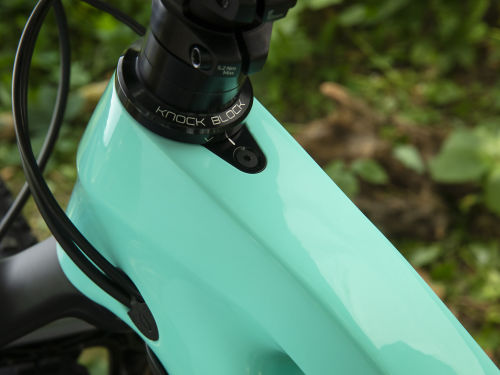

Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |

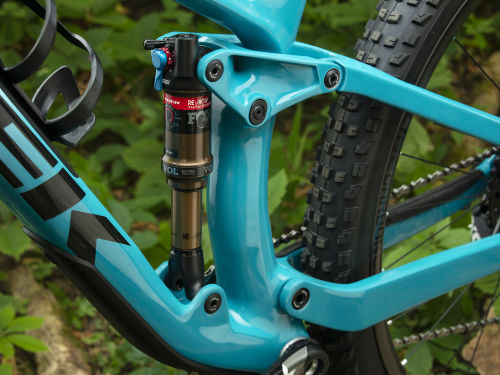

Shoc | Size: ML , S , M Fox Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210x55 mm - Size: XS , S Fox Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210x52.5mm |
Size: ML , M Bontrager Line Pro, 35 mm, Knock Block, 0-degree, 50 mm length - Size: XS , S Bontrager Line Pro, 35mm, Knock Block, 0 degree, 40mm length |
Wheels
Tyres | Size: ML , S , M Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60" - Size: XS , S Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60" |
---|
Brakes
Brakes | Shimano XT M8120 4-piston hydraulic disc |
---|
Components
Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
---|---|
Grips | Bontrager XR Trail Elite, alloy lock-on |
Saddle | Bontrager Arvada Pro, carbon rails, 138 mm width |
Seatpost | Size: ML , M Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length - Size: XS , S Bontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length |
Stem | Size: ML , M Bontrager Line Pro, 35 mm, Knock Block, 0-degree, 50 mm length - Size: XS , S Bontrager Line Pro, 35mm, Knock Block, 0 degree, 40mm length |
