Trek Top Fuel 7 SX
Serie: Top Fuel - Year: 2021
Where to buy it
Specifications
Drivetrain
| Crank | Size: SSRAM SX Eagle, DUB, 32T steel ring, Boost, 170 mm length - Size: M, M/L, L, XL, XXLSRAM SX Eagle, DUB, 32T steel ring, Boost, 175 mm length |
|---|---|
| Derailleurs | Rear: SRAM SX Eagle |
| Shifters | SRAM SX Eagle, 12-speed |
| Cassette | SRAM PG-1210 Eagle, 11-50, 12-speed |
Frameset
| Fork | RockShox Judy SL, Solo Air spring, Motion Control damper, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel |
|---|---|

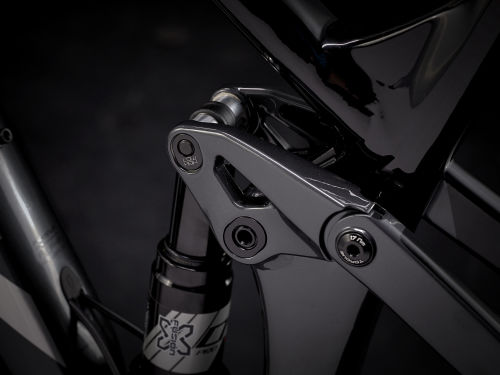

| Frame | Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 115 mm travel |
| Shoc | X-Fusion Pro 2, 190x45 mm |
| Size: S, M, M/LBontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length - Size: L, XL, XXLBontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| Rims | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| Tyres | Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" |
Brakes
| Brakes | Shimano MT200 hydraulic disc |
|---|
Components
| Handlebar | Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
|---|---|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: STranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length - Size: M, M/L, L, XL, XXLTranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length |
| Stem | Size: S, M, M/LBontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length - Size: L, XL, XXLBontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length |
