Specifications
Drivetrain

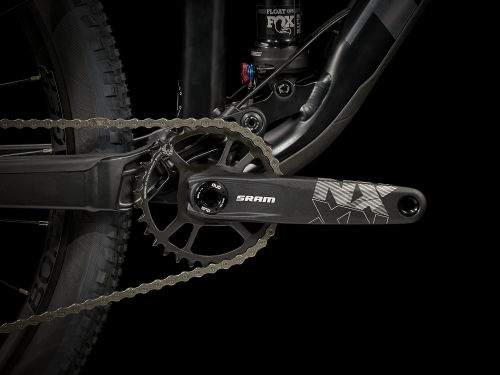

Crank | Size: SSRAM NX Eagle, DUB, 32T steel ring, Boost, 170 mm length - Size: M, M/L, L, XL, XXLSRAM NX Eagle, DUB, 32T steel ring, Boost, 175 mm length |
---|---|
Derailleurs | Rear: SRAM NX Eagle |
Shifters | SRAM NX Eagle, 12-speed |

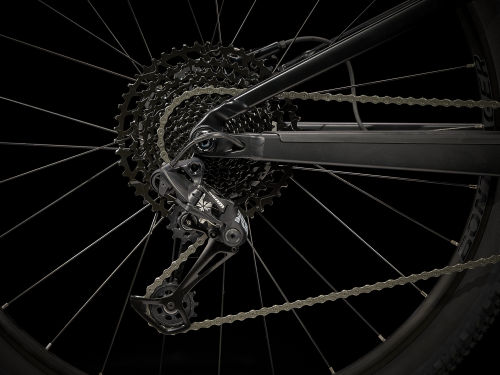

Cassette | SRAM PG-1230 Eagle, 11-50, 12-speed |
Frameset

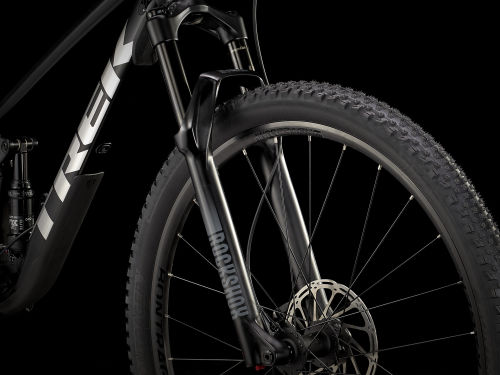

Fork | RockShox Recon Gold RL, Solo Air spring, Motion Control damper, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel |
---|---|

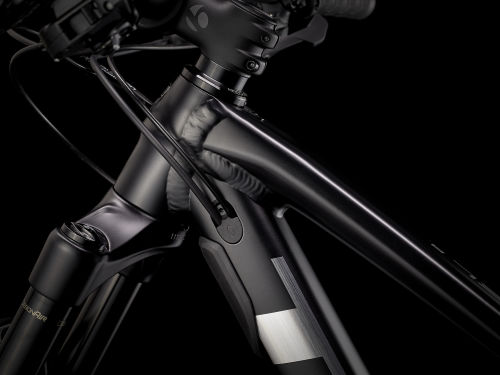

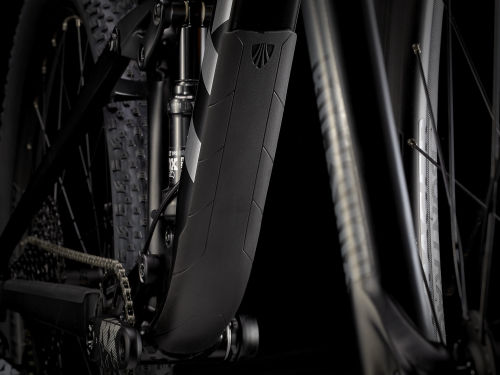

Frame | Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 115 mm travel |

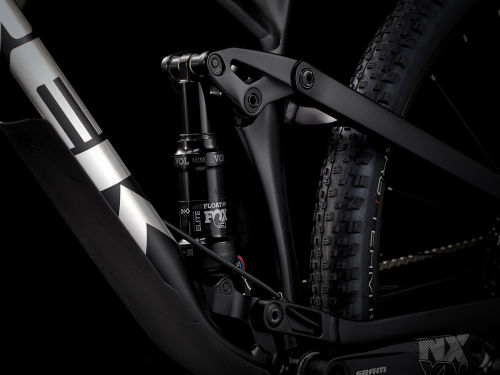

Shoc | Size: S, M, M/L, L, XL, XXLFox Performance Float, 2-position DPS damper, Bontrager DropLock remote, 190x45mm - Size: S, M, M/L, L, XL, XXLFox Performance Float, 2-position DPS damper, TwistLoc remote, tuned by Trek Suspension Lab, 190x45 mm |
Size: S, M, M/LBontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length - Size: L, XL, XXLBontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length |
Wheels
Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
---|---|

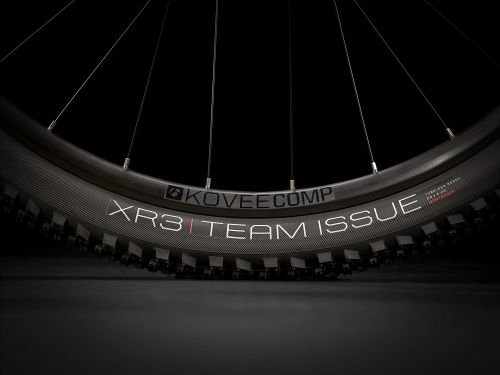

Rims | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
Tyres | Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" |
Brakes

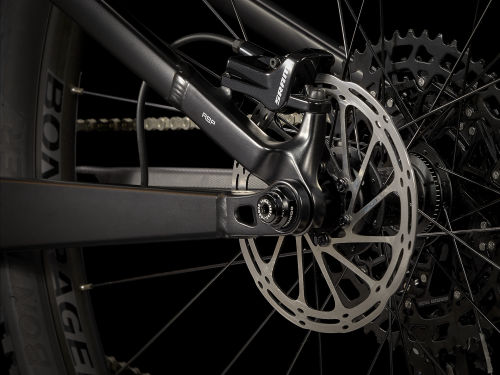

Brakes | SRAM Level T hydraulic disc |
---|
Components
Handlebar | Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
---|---|

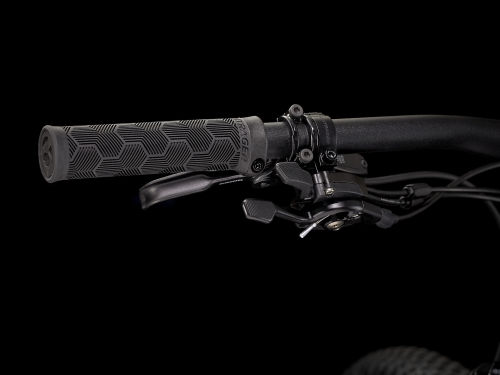

Grips | Bontrager XR Trail Comp, nylon lock-on |
Saddle | Bontrager Arvada, steel rails, 138 mm width |
Seatpost | Size: SBontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length - Size: M, M/L, L, XL, XXLBontrager Line Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length |
Stem | Size: S, M, M/LBontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length - Size: L, XL, XXLBontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length |
