Trek Top Fuel 9.8 XT
Serie: Top Fuel - Year: 2021
Where to buy it
Specifications
Drivetrain
| Chain | Shimano XT M8100, 12-speed |
|---|---|
| Crank | Size: SShimano XT M8100, 32T alloy ring, Boost, 170 mm length - Size: M, M/L, L, XLShimano XT M8100, 32T alloy ring, Boost, 175 mm length |
| Derailleurs | Rear: Shimano XT M8100, long cage, 51T max cog |
| Shifters | Shimano XT M8100, 12-speed |

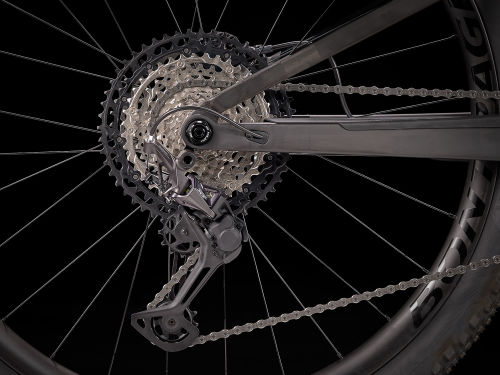

| Cassette | Shimano XT M8100, 10-51, 12-speed |
Frameset

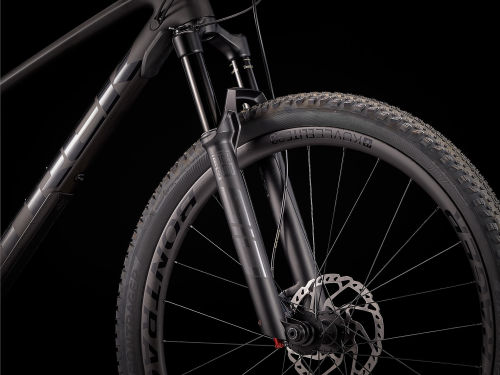

| Fork | RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel |
|---|---|
| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
| Shoc | RockShox SID Luxe Ultimate, DebonAir spring, Ultimate RL damper, 190x45 mm |
| Size: S, M, M/LBontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 60 mm length - Size: L, XLBontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 70 mm length |
Wheels
| Hub | Front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|---|---|

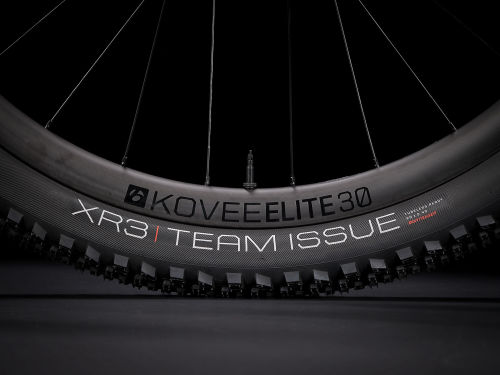

| Tyres | Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" |
Brakes

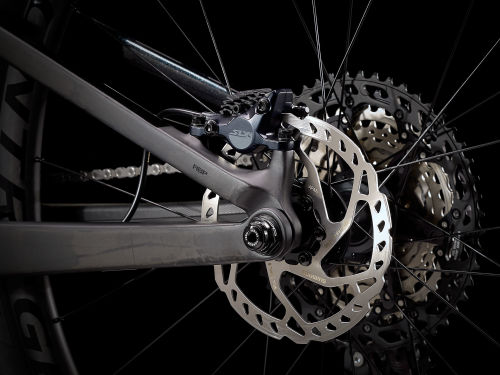

| Brakes | Shimano SLX M7000 hydraulic disc, 180 mm front rotor, 160 mm rear rotor |
|---|
Components
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width |
|---|---|
| Grips | Bontrager XR Trail Elite, alloy lock-on |
| Saddle | Bontrager Montrose Elite, titanium rails, 138 mm width |
| Seatpost | Size: SBontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length - Size: M, M/LBontrager Line Elite Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length - Size: L, XLBontrager Line Elite Dropper, 170mm travel, internal routing, 31.6 mm, 480mm length |
| Stem | Size: S, M, M/LBontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 60 mm length - Size: L, XLBontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 70 mm length |
