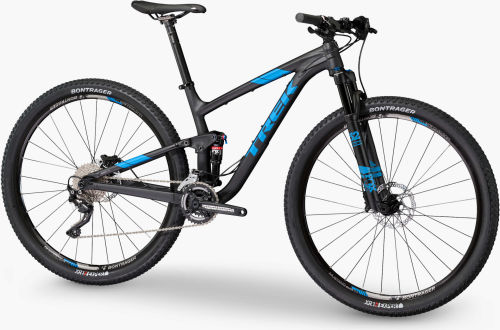

Trek Top Fuel Top Fuel 8
Serie: Top Fuel - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | KMC X10 |
|---|---|
| Crank | Race Face Ride, 36/22 |
| Derailleurs | Front: Shimano Deore, low direct mount - Rear: Shimano Deore XT, Shadow Plus |
| Shifters | Shimano Deore, 10-speed |
| Cassette | Shimano HG50, 11-36, 10-speed |
Frameset
| Frame | Alpha Platinum Aluminium, ABP, Full Floater, EVO link, E2 tapered head tube, Mino Link, MicroTruss, internal derailleur and dropper post routing, downtube guard, PF92, Boost148 and G2 Geometry on 29ers, 100mm travel |
|---|---|
| Headset | Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom |
| Suspensions | Front: Fox Performance 32 Float, Step Cast, Grip adjustable damper, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset on 29ers, 100mm travel - Rear: Fox Performance Float, RE:aktiv XC 2-position damper, tuned by Trek Suspension Lab, 6.5x1.5" |
| Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
Wheels
| Tyres | Bontrager XR1 Expert, Tubeless Ready, Inner Strength sidewalls, aramid bead, 29x2.20" (15.5: 27.5x2.20") |
|---|---|
| Wheels | Bontrager Mustang Elite, Tubeless Ready, Boost110 front, Boost148 rear (15.5: 142x12 rear) |
Brakes
| Brakes | Shimano Deore hydraulic disc |
|---|
Components
| Handlebar | Bontrager Race Lite, 31.8mm, 5mm rise |
|---|---|
| Saddle | Bontrager Evoke 2, chromoly rails |
| Seatpost | Bontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset |
| Stem | Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
geometry
| Frame size number | Actual frame size | Geometry position | Wheel size | A Seat tube | B Seat tube angle | Effective seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 in | 15.5 in | Low | 27.5" | 39.4 | 69.5° | 73.5° | 10.0 | 69.9° | 55.8 | 33.0 | 2.5 | 42.7 | 4.7 | 8.0 | 106.4 | 73.2 | 39.2 | 56.1 |
| 17.5 in | 16.5 in | Low | 29" | 41.9 | 68.5° | 74.0° | 9.0 | 70.0° | 59.3 | 33.0 | 3.9 | 43.5 | 5.1 | 8.0 | 111.1 | 72.4 | 42.7 | 57.7 |
| 18.5 in | 17.5 in | Low | 29" | 44.5 | 68.5° | 74.0° | 9.0 | 70.0° | 60.9 | 33.0 | 3.9 | 43.5 | 5.1 | 8.0 | 112.7 | 71.9 | 44.3 | 57.7 |
| 19.5 in | 18.5 in | Low | 29" | 47.0 | 68.5° | 74.0° | 10.0 | 70.0° | 62.5 | 33.0 | 3.9 | 43.5 | 5.1 | 8.0 | 114.4 | 71.9 | 45.7 | 58.7 |
| 21.5 in | 20.5 in | Low | 29" | 49.5 | 68.5° | 74.0° | 12.0 | 70.0° | 64.6 | 33.0 | 3.9 | 43.5 | 5.1 | 8.0 | 116.6 | 71.9 | 47.2 | 60.6 |
