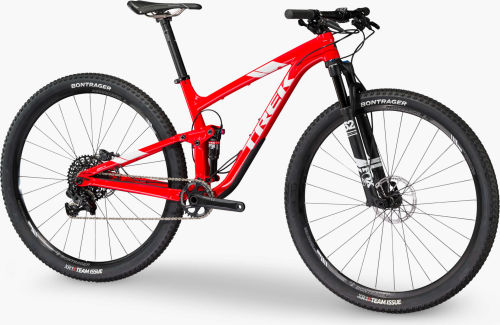

Trek Top Fuel Top Fuel 9
Serie: Top Fuel - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | SRAM PC 1130 |
|---|---|
| Crank | SRAM X1 1200, 32T Direct Mount X-Sync |
| Derailleurs | Rear: SRAM X1, Roller Bearing Clutch |
| Shifters | SRAM X1, 11-speed |
| Cassette | SRAM XG-1150, 10-42, 11-speed |
Frameset
| Frame | Alpha Platinum Aluminium, ABP, Full Floater, EVO link, E2 tapered head tube, Mino Link, MicroTruss, internal derailleur and dropper post routing, downtube guard, PF92, Boost148 and G2 Geometry on 29ers, 100mm travel |
|---|---|
| Headset | Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom |
| Suspensions | Front: Fox Performance 32 Float, Step Cast, Grip 2-position remote damper, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset on 29ers, 100mm travel - Rear: Fox Performance Float, RE:aktiv XC 2-position remote damper, tuned by Trek Suspension Lab, 6.5x1.5" |
| Bontrager Pro, 31.8mm, 7 degree, Blendr compatible |
Wheels
| Tyres | Bontrager XR1 Team Issue, Tubeless Ready, Inner Strength sidewalls, 120 tpi, aramid bead, 29x2.20" (15.5: 27.5x2.20") |
|---|---|
| Wheels | Bontrager Mustang Pro, Tubeless Ready, Boost110 front, Boost148 rear (15.5: 142x12 rear) |
Brakes
| Brakes | SRAM Level TLM hydraulic disc |
|---|
Components
| Handlebar | Bontrager Race Lite, 31.8mm, 5mm rise |
|---|---|
| Saddle | Bontrager Montrose Elite, hollow titanium rails |
| Seatpost | Bontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset |
| Stem | Bontrager Pro, 31.8mm, 7 degree, Blendr compatible |
geometry
| Frame size number | Actual frame size | Geometry position | Wheel size | A Seat tube | B Seat tube angle | Effective seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 in | 15.5 in | Low | 27.5" | 39.4 | 69.5° | 73.5° | 10.0 | 69.9° | 55.8 | 33.0 | 2.5 | 42.7 | 4.7 | 8.0 | 106.4 | 73.2 | 39.2 | 56.1 |
| 17.5 in | 16.5 in | Low | 29" | 41.9 | 68.5° | 74.0° | 9.0 | 70.0° | 59.3 | 33.0 | 3.9 | 43.5 | 5.1 | 8.0 | 111.1 | 72.4 | 42.7 | 57.7 |
| 18.5 in | 17.5 in | Low | 29" | 44.5 | 68.5° | 74.0° | 9.0 | 70.0° | 60.9 | 33.0 | 3.9 | 43.5 | 5.1 | 8.0 | 112.7 | 71.9 | 44.3 | 57.7 |
| 19.5 in | 18.5 in | Low | 29" | 47.0 | 68.5° | 74.0° | 10.0 | 70.0° | 62.5 | 33.0 | 3.9 | 43.5 | 5.1 | 8.0 | 114.4 | 71.9 | 45.7 | 58.7 |
| 21.5 in | 20.5 in | Low | 29" | 49.5 | 68.5° | 74.0° | 12.0 | 70.0° | 64.6 | 33.0 | 3.9 | 43.5 | 5.1 | 8.0 | 116.6 | 71.9 | 47.2 | 60.6 |
