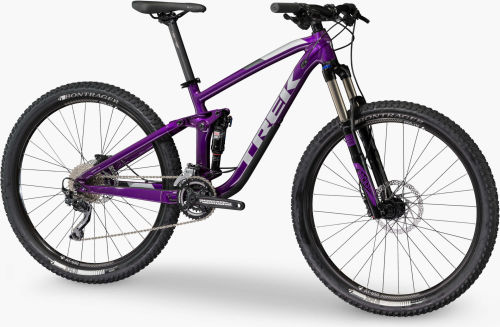

Trek Fuel EX Fuel EX 5 Women's
Serie: Fuel EX - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | KMC X10 |
|---|---|
| Crank | Race Face Ride, 36/22 |
| Derailleurs | Front: Shimano Deore, high direct mount - Rear: Shimano Deore, Shadow |
| Shifters | Shimano Deore, 10-speed |
| Cassette | Shimano HG50, 11-36, 10-speed |
Frameset
| Frame | Alpha Platinum Aluminium, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, downtube guard, PF92, ISCG 05, G2 Geometry on 29ers, 130mm travel |
|---|---|
| Headset | Knock Block integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Suspensions | Front: RockShox Sektor Silver RL, Solo Air, TurnKey lockout, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset on 29ers, 130mm travel - Rear: RockShox Deluxe RL, 210x52.5mm |
| Bontrager Rhythm Comp, Knock Block, 31.8mm, 0 degree |
Wheels
| Hub | Front: Bontrager alloy, 15mm alloy axle - Rear: Bontrager sealed cartridge bearing alloy axle, Boost148 |
|---|---|
| Rims | Bontrager AT-650 32-hole double-walled alloy |
| Tyres | Bontrager XR3, 29x2.30" (14 & 15.5: 27.5x2.35") |
| Wheels | Bontrager alloy, 15mm alloy axle front hub; Bontrager sealed cartridge bearing alloy axle, Boost148 rear hub; Bontrager AT-650 32-hole double-walled alloy rims |
Brakes
| Brakes | Shimano M315 hydraulic disc |
|---|
Components
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|---|---|
| Saddle | Bontrager Evoke 1.5 WSD |
| Seatpost | Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset |
| Stem | Bontrager Rhythm Comp, Knock Block, 31.8mm, 0 degree |
geometry
| Frame size number | Actual frame size | Geometry position | Wheel size | A Seat tube | B Seat tube angle | Effective seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack | Frame rise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 in | 14 in | High | 27.5" | 35.6 | 66.5° | 74.2° | 9.0 | 67.7° | 54.2 | 33.8 | 1.2 | 43.3 | 4.3 | 10.4 | 108.6 | 75.7 | 38.2 | 56.6 | 57.1 |
| 15.5 in | 15.5 in | High | 27.5" | 39.4 | 66.5° | 74.2° | 10.0 | 67.7° | 56.1 | 33.8 | 1.2 | 43.3 | 4.3 | 10.4 | 110.6 | 77.3 | 39.8 | 57.5 | 58.0 |
| 17.5 in | 16.5 in | High | 29" | 41.9 | 66.2° | 74.7° | 10.0 | 67.7° | 60.0 | 33.7 | 3.0 | 43.2 | 5.1 | 9.9 | 115.6 | 74.7 | 43.3 | 60.3 | 60.3 |
| 18.5 in | 17.5 in | High | 29" | 44.0 | 66.2° | 74.7° | 10.0 | 67.7° | 61.7 | 33.7 | 3.0 | 43.2 | 5.1 | 9.9 | 117.3 | 74.2 | 45.0 | 60.3 | 60.3 |
