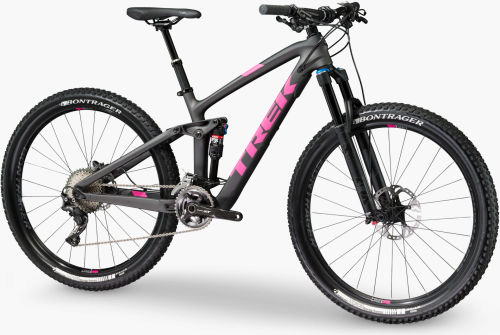

Trek Fuel EX Fuel EX 9.8 Women's
Serie: Fuel EX - Year: 2017
Where to buy it
Specifications
Drivetrain
| Chain | Shimano Deore XT |
|---|---|
| Crank | Shimano Deore XT, 36/26 |
| Derailleurs | Front: Shimano Deore XT, high direct mount - Rear: Shimano Deore XT, Shadow Plus |
| Shifters | Shimano Deore XT M8000, 11-speed |
| Cassette | Shimano Deore XT, 11-42, 11-speed |
Frameset
| Frame | OCLV Mountain Carbon main frame and seatstay, alloy chainstay, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, Carbon Armor, PF92, ISCG 05, G2 Geometry on 29ers, 130mm travel |
|---|---|
| Headset | Knock Block integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Suspensions | Front: Fox Performance 34 Float, FIT4 3-position damper, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset on 29ers, 130mm travel - Rear: Fox Performance Float EVOL, RE:aktiv 3-position damper, tuned by Trek Suspension Lab, 210x52.5mm |
| Bontrager Line Pro, Knock Block, 35mm, 0 degree |
Wheels
| Tyres | Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewalls, 120tpi, aramid bead, 29x2.40" (14 & 15.5: 27.5x2.35") |
|---|---|
| Wheels | Bontrager Duster Elite, Tubeless Ready, Boost110 front, Boost148 rear |
Brakes
| Brakes | Shimano Deore XT hydraulic disc |
|---|
Components
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width |
|---|---|
| Saddle | Bontrager Evoke 3, titanium rails |
| Seatpost | Bontrager Drop Line 125, universal remote lever, 2-bolt head, 31.6mm, zero offset, internal routing |
| Stem | Bontrager Line Pro, Knock Block, 35mm, 0 degree |
geometry
| Frame size number | Actual frame size | Geometry position | Wheel size | A Seat tube | B Seat tube angle | Effective seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack | Frame rise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 in | 14 in | High | 27.5" | 35.6 | 66.5° | 74.2° | 9.0 | 67.7° | 54.2 | 33.8 | 1.2 | 43.3 | 4.3 | 10.4 | 108.6 | 75.5 | 38.2 | 56.6 | 57.1 |
| 15.5 in | 15.5 in | High | 27.5" | 39.4 | 66.5° | 74.2° | 10.0 | 67.7° | 56.1 | 33.8 | 1.2 | 43.3 | 4.3 | 10.4 | 110.6 | 76.2 | 39.8 | 57.5 | 58.0 |
| 17.5 in | 16.5 in | High | 29" | 41.9 | 66.2° | 74.7° | 10.0 | 67.7° | 60.0 | 33.7 | 3.0 | 43.2 | 5.1 | 9.9 | 115.6 | 74.7 | 43.3 | 60.3 | 60.3 |
| 18.5 in | 17.5 in | High | 29" | 44.0 | 66.2° | 74.7° | 10.0 | 67.7° | 61.7 | 33.7 | 3.0 | 43.2 | 5.1 | 9.9 | 117.3 | 74.2 | 45.0 | 60.3 | 60.3 |
