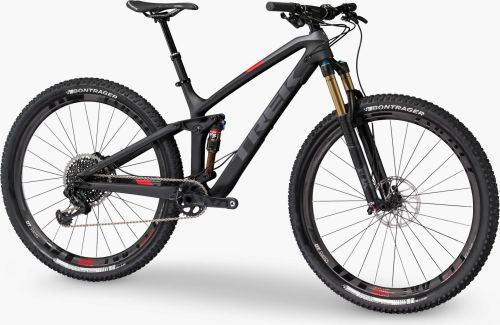

Trek Fuel EX Fuel EX 9.9 29

Serie: Fuel EX - Year: 2017
Trek

Where to buy it

Specifications

Drivetrain

ChainSRAM X01 Eagle
CrankSRAM XX1 Eagle, 32T Direct Mount X-Sync
DerailleursRear: SRAM XX1 Eagle, Roller Bearing Clutch
ShiftersSRAM XX1 Eagle, 12-speed
CassetteSRAM XG-1295, 10-50, 12-speed

Frameset

FrameOCLV Mountain Carbon main frame and 1x-specific stays, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, Carbon Armor, PF92, ISCG 05, G2 Geometry, 130mm travel
HeadsetKnock Block integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
SuspensionsFront: Fox Factory 34 Float, FIT4 3-position damper, E2 tapered steerer, Kashima Coat, Boost110, G2 Geometry w/51mm offset, 130mm travel - Rear: Fox Factory Float EVOL, RE:aktiv 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210x52.5mm
Bontrager Line Pro, Knock Block, 35mm, 0 degree

Wheels

TyresBontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewalls, 120tpi, aramid bead, 29x2.40"
WheelsDT Swiss XMC1200 Carbon, tubeless strips and valves, Boost110 front, Boost148 rear

Brakes

BrakesSRAM Guide Ultimate hydraulic disc

Components

HandlebarBontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
SaddleBontrager Evoke RXL, carbon rails
SeatpostBontrager Drop Line 125, under-bar remote lever, 2-bolt head, 31.6mm, zero offset, internal routing
StemBontrager Line Pro, Knock Block, 35mm, 0 degree

geometry

Frame size number Actual frame size Geometry position Wheel size A Seat tube B Seat tube angle Effective seat tube angle C Head tube length D Head angle E Effective top tube F Bottom bracket height G Bottom bracket drop H Chainstay length I Offset J Trail K Wheelbase L Standover M Frame reach N Frame stack Frame rise
15.5 in 15.5 in High 29" 39.4 66.2° 74.7° 10.0 67.7° 56.5 33.7 3.0 43.2 5.1 9.9 112.1 76.7 39.9 60.4 60.4
17.5 in 16.5 in High 29" 41.9 66.2° 74.7° 10.0 67.7° 60.0 33.7 3.0 43.2 5.1 9.9 115.6 74.7 43.3 60.3 60.3
18.5 in 17.5 in High 29" 44.0 66.2° 74.7° 10.0 67.7° 61.7 33.7 3.0 43.2 5.1 9.9 117.3 74.2 45.0 60.3 60.3
19.5 in 18.5 in High 29" 47.0 66.2° 74.7° 10.0 67.7° 63.2 33.7 3.0 43.2 5.1 9.9 118.8 73.7 46.5 60.3 60.3
21.5 in 20.5 in High 29" 51.0 66.2° 74.7° 11.0 67.7° 65.7 33.7 3.0 43.2 5.1 9.9 121.4 74.7 48.7 61.2 61.2
